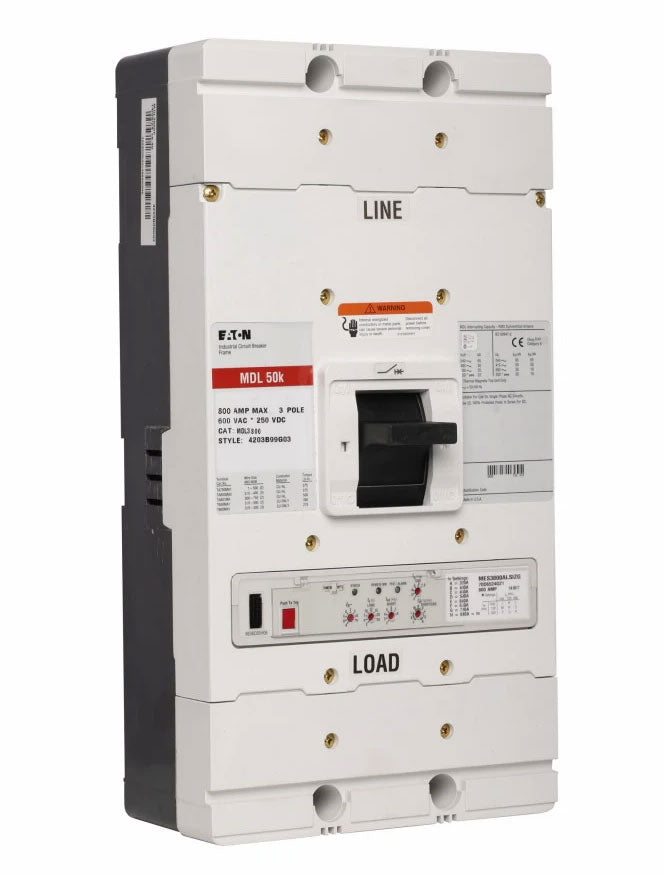

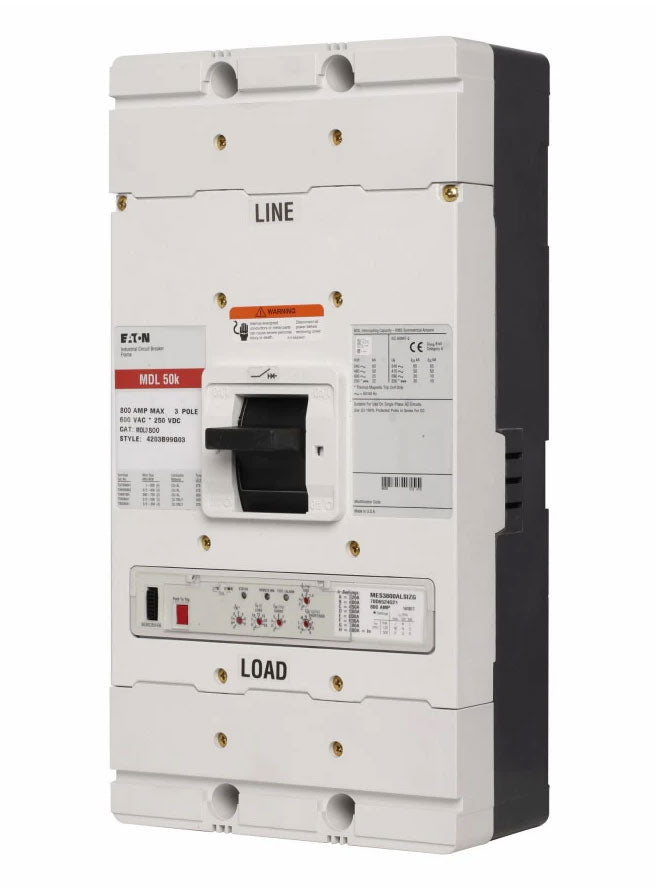

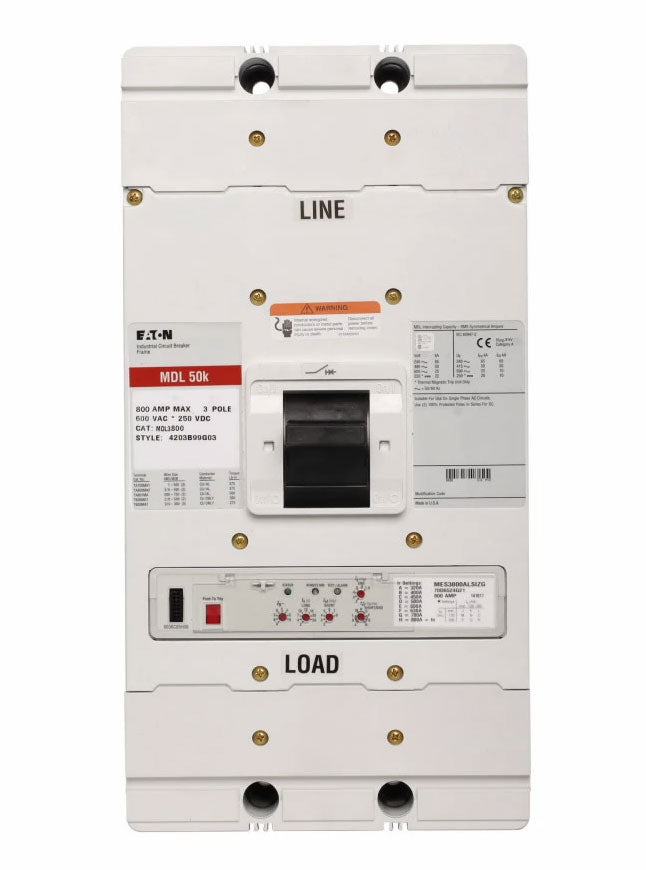

Eaton MDL3800 Molded Case Circuit Breaker – 800A – 3-Pole / 3-Phase – 600V – 65kA @ 240V / 50kA @ 480V – Feed-Thru – Series C MDL

The Eaton MDL3800 is an 800A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C Type MDL. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with interchangeable Long-Time and Instantaneous (LI) trip functions.

The MDL3800 is rated for 600V and provides interrupting ratings of 65kA at 240V and 50kA at 480V. It features standard interrupting capacity, a feed-thru configuration, and line- and load-side lug terminals. The breaker is calibrated for 40°C operation.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: MDL
• Catalog No.: MDL3800
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 240V; 50kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MDL3800
• Catalog Number: MDL3800
• Model: MDL3800
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: MDL
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 800A
• Trip Configuration: Interchangeable LI
• UPC:782114586006

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type MDL electrical distribution equipment that accepts MDL Series molded case circuit breakers. The MDL3800 provides 800A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features interchangeable Long-Time and Instantaneous (LI) trip functions, feed-thru configuration, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Specific Certifications: Not specified
