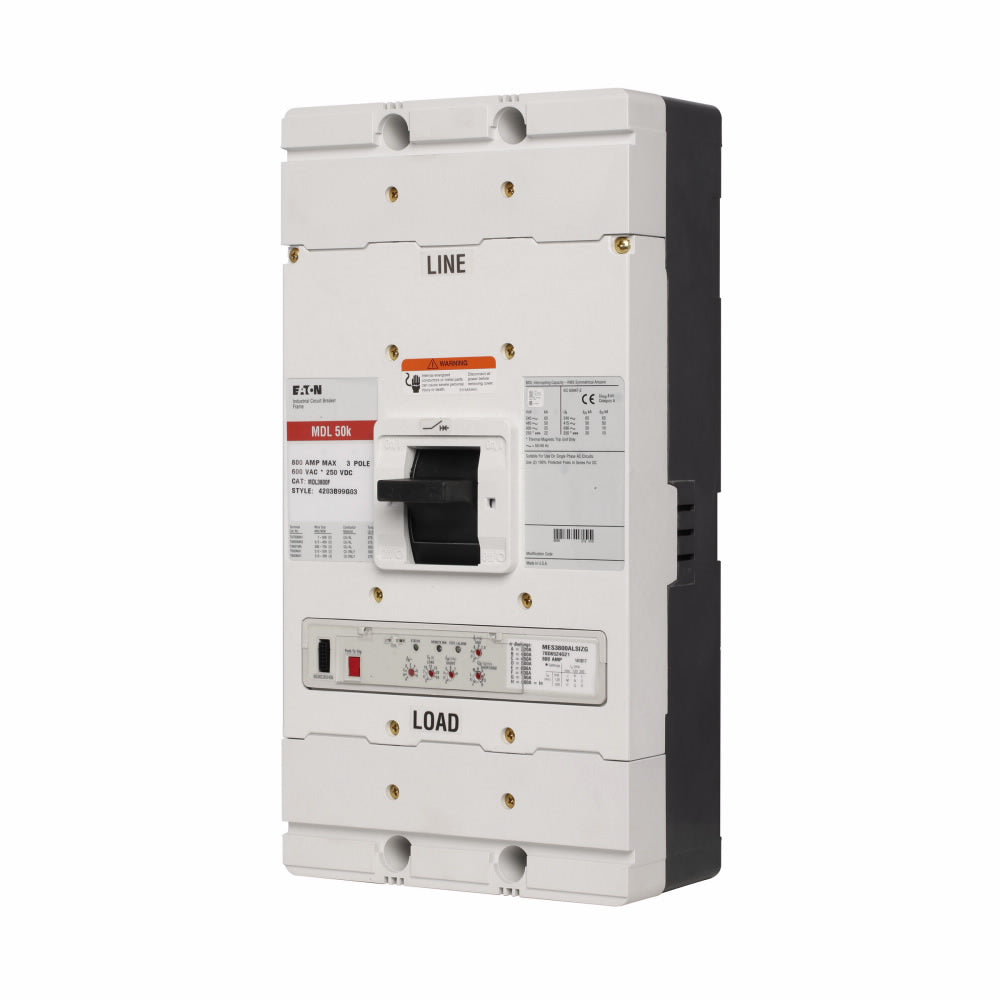

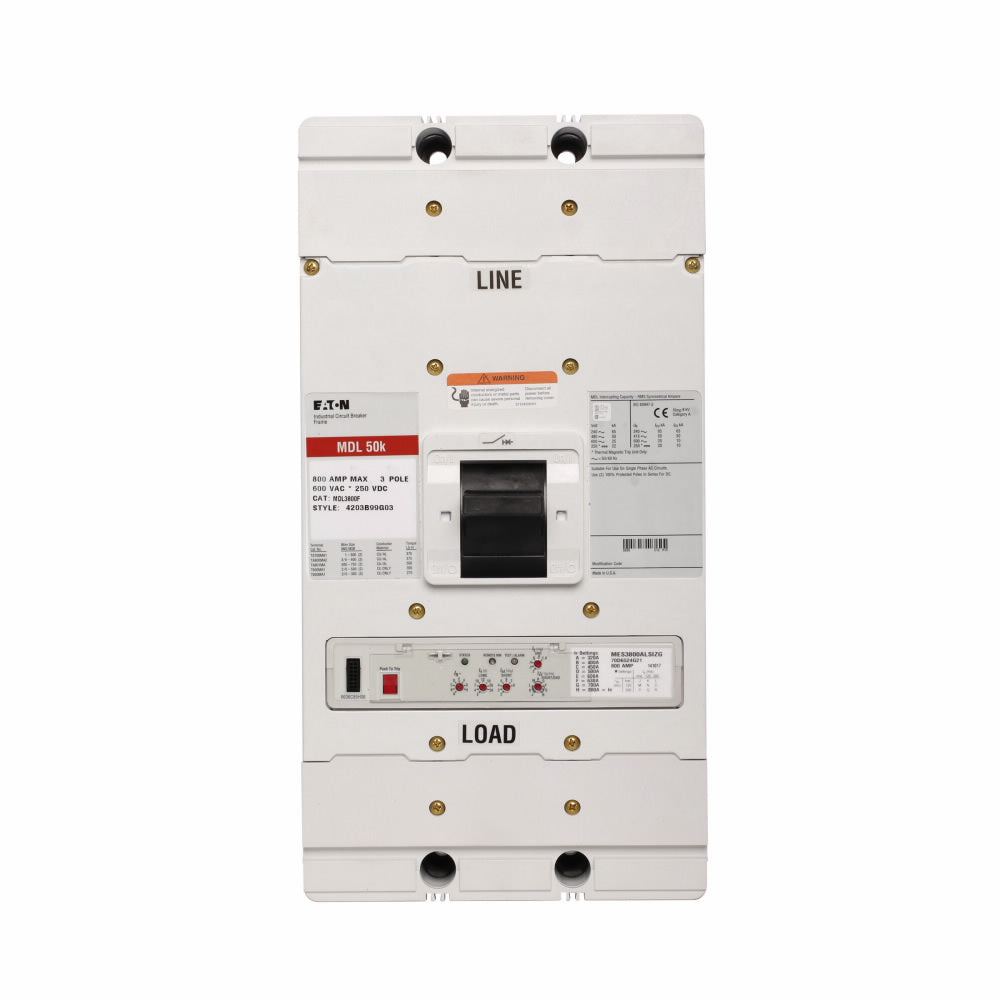

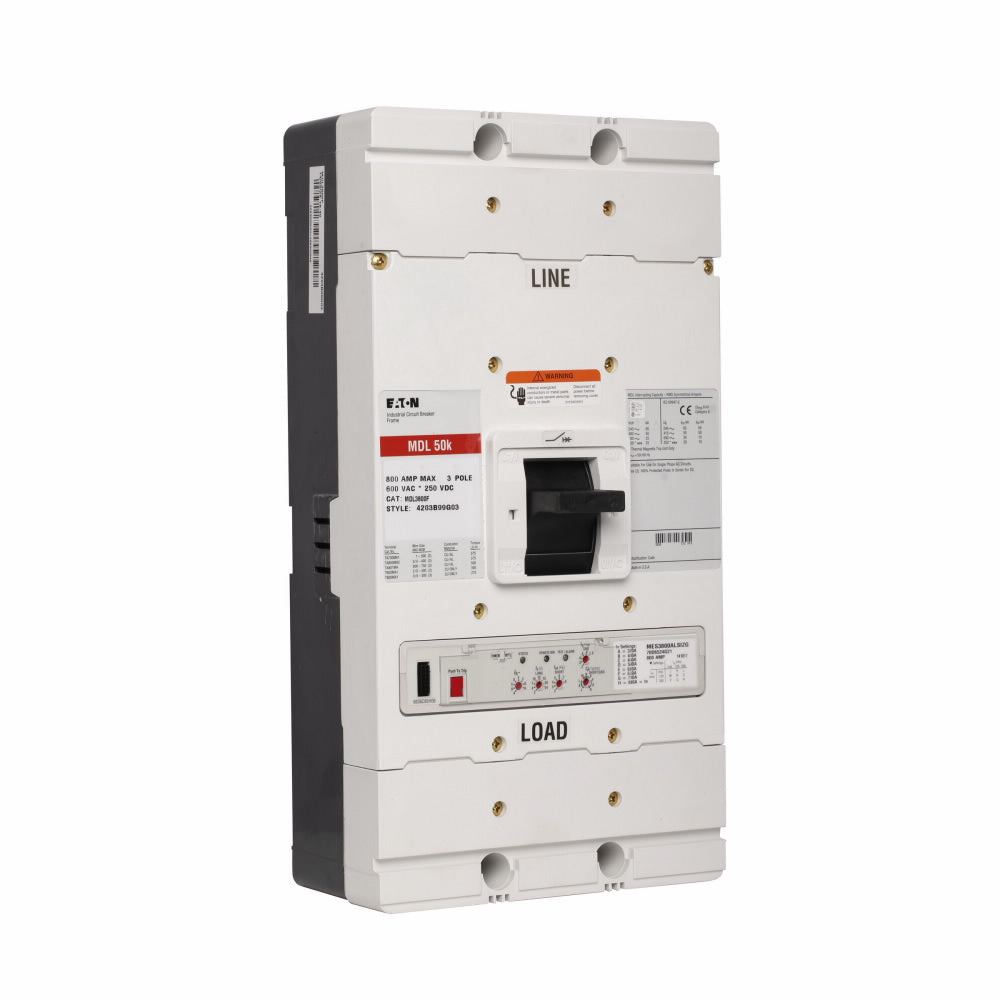

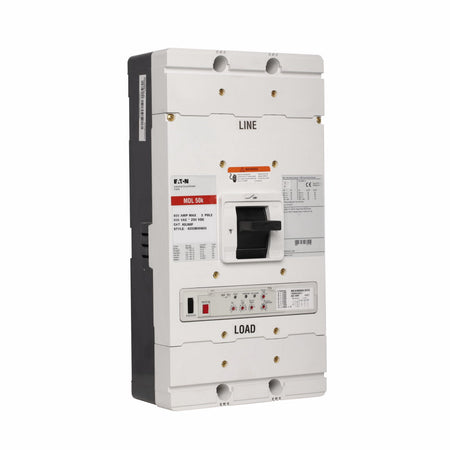

Eaton MDL3800F Molded Case Circuit Breaker Frame – 800A – 3-Pole / 3-Phase – 600V – 50kA @ 480V – Bolt-On – Series C MDL

The Eaton MDL3800F is an 800A, 3-pole, 3-phase molded case circuit breaker frame from the Eaton / Cutler-Hammer / Westinghouse Series C Type MDL. It is rated for 600V and provides a 50kA interrupting rating at 480V with standard interrupting capacity.

This product is supplied as a frame only and does not include the complete breaker trip unit. The MDL frame is designed for compatible applications requiring thermal-magnetic molded case circuit breaker protection and bolt-on mounting.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series C
• Series: Series C
• Type: MDL
• Catalog No.: MDL3800F
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 50kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Configuration: Frame Only
• Trip Unit: Not Included
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MDL3800F
• Catalog Number: MDL3800F
• Model: MDL3800F
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: MDL
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Configuration: 3-Pole, 800A, Frame Only
• UPC:782114350577

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer / Westinghouse Series C Type MDL electrical distribution equipment that accepts the MDL frame.

The MDL3800F is supplied frame only, so the appropriate compatible trip unit and required components must be separately verified for the intended application. Always verify the specific breaker frame, compatible trip unit, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• Specific Certifications: Not specified
