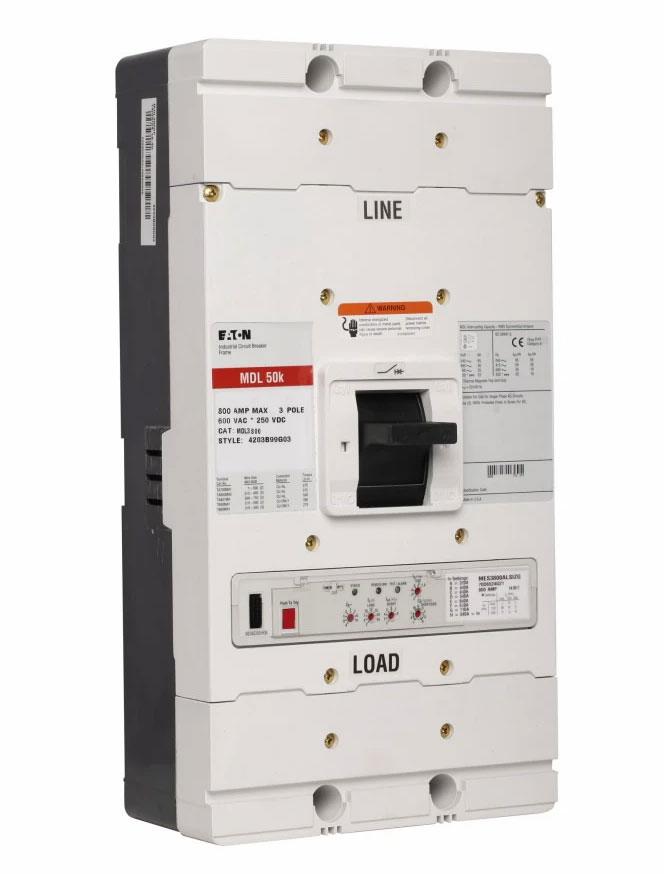

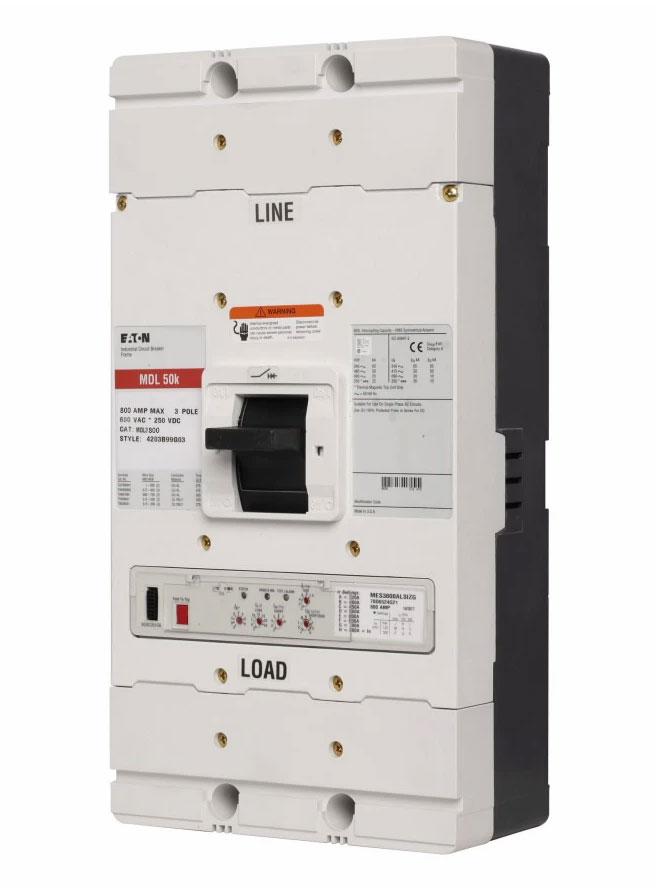

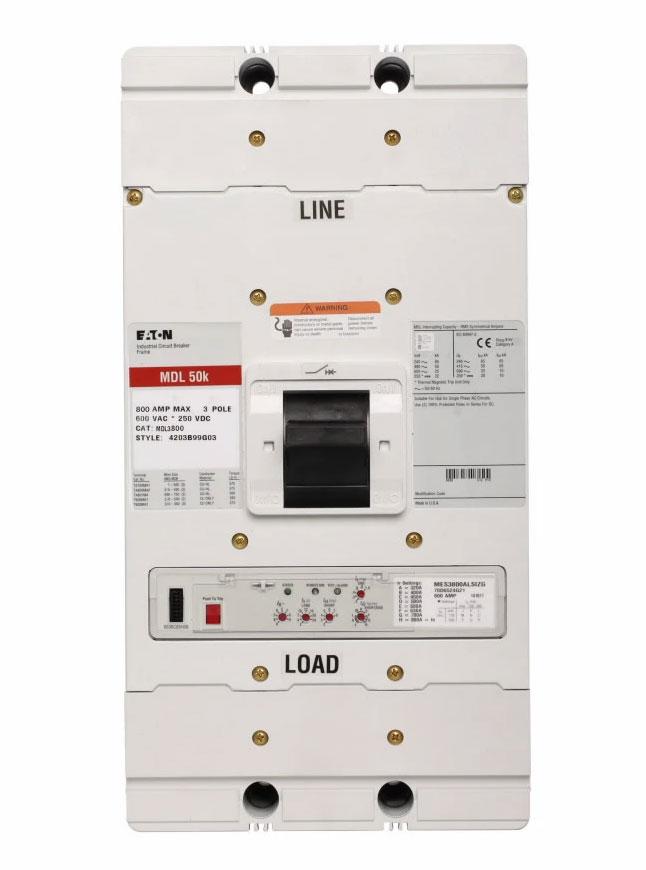

Eaton Cutler-Hammer MDL3800X 800 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 65 kAIC at 240V – Series C

The Eaton Cutler-Hammer MDL3800X is a Series C, Type MDL thermal-magnetic molded case circuit breaker rated at 800 A and 600 V. This three-pole, three-phase breaker features standard interrupting capacity and interchangeable LI trip functions for long-time and instantaneous protection. It is designed for feed-through applications and includes line- and load-side lug terminals.

Specifications

• Brand: Eaton / Cutler-Hammer
• Catalog Number: MDL3800X
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: Series C
• Type: MDL
• Rated Current: 800 A
• Rated Voltage: 600 V
• Poles: 3
• Phases: 3-phase
• Interrupting Capacity: 65 kAIC at 240 V; 50 kAIC at 480 V
• Interrupting Rating: Standard
• Trip Type: Thermal-magnetic
• Trip Functions: Interchangeable LI (Long-Time and Instantaneous)
• Connection Type: Feed-through
• Terminals: Line- and load-side lug terminals
• Reference Temperature: 40°C

Part Numbers & Identification

• Manufacturer: Eaton
• Brand Family: Cutler-Hammer
• Model / MPN: MDL3800X
• Series Identification: Series C, Type MDL
• Breaker Configuration: Three-pole, 800 A
• UPC:782114586006

Compatibility

Suitable for Eaton Series C Type MDL applications requiring an 800 A, three-pole molded case circuit breaker with interchangeable LI trip functions.
