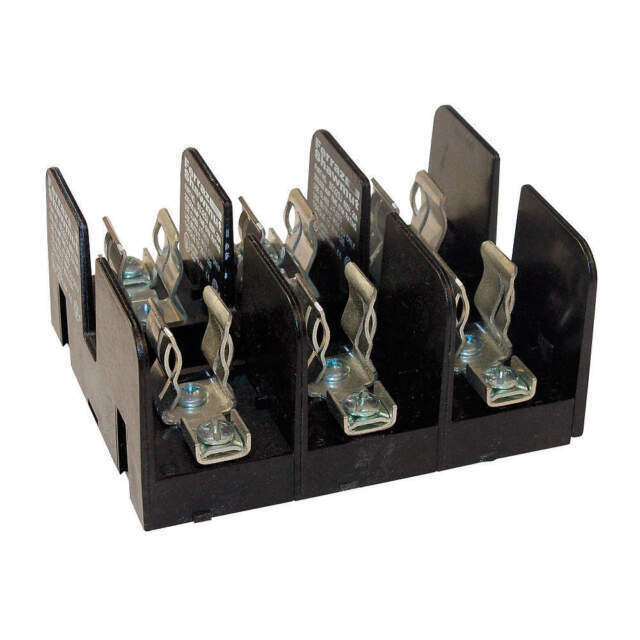

The Mersen 60603 is a 3-pole industrial fuse block designed for Class H and Class K fuse applications in low-voltage power distribution systems. Rated at 60A, this fuse block provides a compact and reliable mounting solution for overcurrent protection in commercial and industrial electrical panels. With a voltage rating of up to 600VAC and 600VDC, it is suitable for feeder circuits, branch circuits, and general-purpose power distribution where time-tested fuse protection is required.
Voltage and Rating
- Current Rating: 60 Amps
- Voltage Rating: 600VAC / 600VDC
- Frequency: 50/60 Hz
- Fuse Class Compatibility: Class H / Class K
- Number of Poles: 3
Key Specifications
- Product Type: Fuse Block
- Part Number: 60603
- Manufacturer: Mersen / Ferraz Shawmut
- Mounting Style: Panel/Box Mount
- Connector Type: Box-style terminals
- Phase Compatibility: 3-Phase Systems
- Application Voltage: Low Voltage Industrial Systems
Technical Specifications
- Material: High-strength insulating thermoplastic housing
- Contact Material: Tin-plated copper contacts for reliable conductivity
- Design Type: Open fuse block with enclosed terminal protection
- Wiring Configuration: Accepts standard copper conductors for Class H/K fuse systems
- Thermal Performance: Designed for continuous industrial operation at rated load
Standards and Approvals
- UL Listed fuse block assembly
- CSA Certified
- Designed for compliance with UL fuse protection standards for Class H/K systems
Product Data
- Manufacturer: Mersen / Ferraz Shawmut
- Series: Industrial Fuse Block Series
- Part Number: 60603
- EAN/UPC: 782001757816
Applications
- Industrial power distribution panels
- Motor control centers (MCCs)
- Branch circuit protection systems
- Feeder circuit protection
- Commercial electrical installations
- General-purpose fuse protection systems
- Retrofit and replacement fuse assemblies
- Type Fuses
- Vendor Mersen
- Brand Mersen
