Mersen 61036J 60A Modular Fuse Block – Compact Low-Profile Design – 600VAC – Stackable Multi-Pole System
Couldn't load pickup availability
Ask an expert

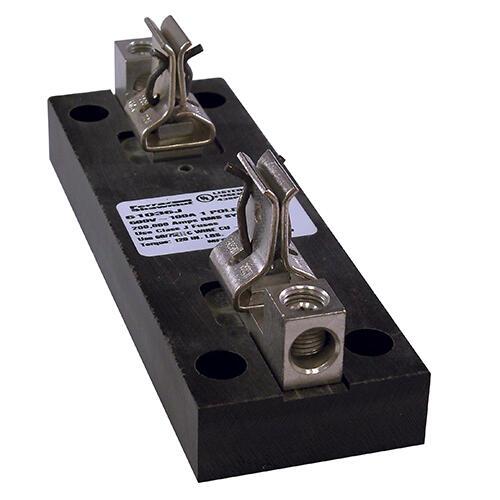

The Mersen 61036J is a compact, modular fuse block designed for flexible configuration in industrial and commercial electrical distribution systems. Rated for 600VAC applications, it is part of Mersen’s 610 series modular fuse block family, allowing snap-on expansion for multi-pole arrangements. Built with high-strength insulating materials and tin-plated copper fuse clips, this fuse block provides reliable overcurrent protection support in control panels, motor control centers, and power distribution assemblies where space-saving and modular flexibility are required.
Voltage and Rating
- Voltage Rating: 600VAC
- Frequency: 50/60 Hz
- Current Rating: 30A / 60A / modular configurations (system dependent)
- Fuse System Compatibility: Class J/H-style systems (application dependent)
- Number of Poles: Modular / expandable
Key Specifications
- Product Type: Modular Fuse Block
- Part Number: 61036J
- Manufacturer: Mersen / Ferraz Shawmut
- Series: 610 Modular Fuse Block Series
- Mounting Style: Panel Mount
- Connector Types: Screw, pressure plate, box, and stud (configuration dependent)
- Expansion Feature: Snap-on adder system for multi-pole configurations
- Design Type: Space-saving modular construction
Technical Specifications
- Insulation Material: Glass-filled polycarbonate (GFPC) or phenolic resin
- Dielectric Strength: >2500V
- Clip Material: High-conductivity tin-plated copper
- Clip Options: Spring-reinforced or non-spring reinforced
- Wiring Compatibility: Suitable for stranded and solid copper or aluminum conductors
- Mechanical Design: Stackable segmented fuse block architecture
Dimensions
- Height: 2.31 in
- Width: 7 in
- Depth: 2.36 in
- Weight: 1.63 lbs
Standards and Approvals
- CSA Certified
- Designed for industrial fuse protection systems
Product Data
- Manufacturer: Mersen / Ferraz Shawmut
- Part Number: 61036J
- Series: 610 Modular Fuse Block System
Applications
- Industrial control panels
- Motor control centers (MCCs)
- Electrical distribution boards
- Branch circuit protection systems
- OEM panel assemblies
- Feeder circuit protection
- Space-constrained electrical installations
- Modular multi-pole fuse systems
- Type Fuse Block
- Vendor Mersen
- Brand Mersen
