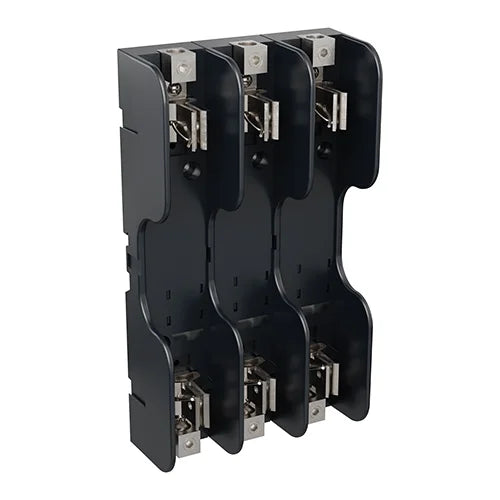

Mersen 61038R 100A 3-Pole Class R Fuse Block – Box Style – Reinforced Clip – 600VAC/600VDC
Couldn't load pickup availability
Ask an expert
The Mersen 61038R is a heavy-duty 3-pole fuse block designed for Class R fuse applications in industrial and commercial power distribution systems. Rated at 100A, this fuse block features reinforced clip construction for enhanced mechanical retention and reliable electrical contact under demanding operating conditions. With a voltage rating of 600VAC and 600VDC, it is suitable for use in feeder circuits, branch circuits, and motor control applications requiring high interrupting current-limiting fuse protection.
Voltage and Rating
- Current Rating: 100 Amps
- Voltage Rating: 600VAC / 600VDC
- Frequency: 50/60 Hz
- Fuse Class Compatibility: Class R
- Number of Poles: 3
Key Specifications
- Product Type: Fuse Block
- Part Number: 61038R
- Manufacturer: Mersen / Ferraz Shawmut
- Mounting Style: Box Mount
- Connector Type: Reinforced Clip Design
- Phase Compatibility: 3-Phase Systems
- Application Type: Industrial Power Distribution
Technical Specifications
- Construction Material: High-dielectric thermoplastic housing
- Contact Material: Tin-plated copper fuse clips
- Reinforcement Feature: Heavy-duty reinforced clip system for improved retention and stability
- Wiring Compatibility: Designed for copper conductors (solid or stranded depending on terminal type)
- Thermal Performance: Rated for continuous industrial operation at full load
Standards and Approvals
- UL Listed component (fuse block systems)
- CSA Certified
- Designed for Class R fuse protection systems in industrial applications
Product Data
- Manufacturer: Mersen / Ferraz Shawmut
- Part Number: 61038R
- EAN/UPC: 782001665005
- Series: Industrial Fuse Block Series
Applications
- Industrial control panels
- Motor control centers (MCCs)
- Feeder and branch circuit protection
- Commercial electrical distribution systems
- Equipment protection and isolation
- Retrofit fuse block assemblies
- Heavy-duty power distribution networks
- Type Fuse Block
- Vendor Mersen
- Brand Mersen
