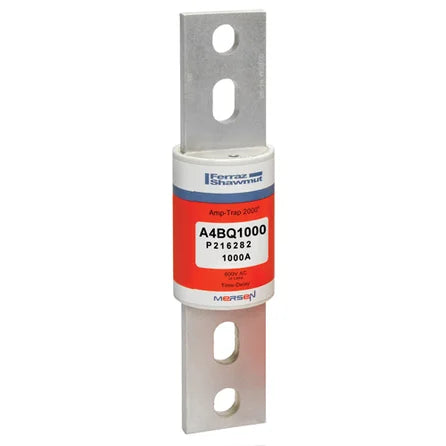

Mersen A4BQ1000 Class L Time-Delay Fuse – 1000A – 600VAC/500VDC – Amp-Trap 2000® Blade Fuse

The Mersen A4BQ1000 is a high-capacity Amp-Trap 2000® Class L time-delay fuse engineered for heavy-duty industrial and commercial power distribution systems. Rated at 1000 Amps, this current-limiting fuse provides time-delay performance to safely handle motor starting currents and transformer inrush while delivering strong short-circuit protection. With voltage ratings of 600VAC and 500VDC, it is designed for main feeder protection, service entrance equipment, and high-energy electrical distribution systems requiring reliable coordination and high interrupting capacity.

Voltage and Rating

• Current Rating: 1000 Amps
• Voltage Rating: 600VAC / 500VDC
• Frequency: 50/60 Hz
• Fuse Class: Class L
• Fuse Type: Time-Delay, Current-Limiting

Key Specifications

• Product Type: Industrial Power Fuse
• Series: Amp-Trap 2000® A4BQ
• Part Number: A4BQ1000
• Manufacturer: Mersen / Ferraz Shawmut
• Mounting Style: Blade
• Time-Delay Capability: Yes (motor/inrush tolerant)
• Current Limiting: Yes

Technical Specifications

• Protection Type: Overcurrent and short-circuit protection
• Application Suitability: Main electrical service, feeders, transformers, large motors, and distribution panels
• Coordination Type: Selective coordination with downstream protection devices
• Construction Features: High interrupting capacity, low let-through energy, robust industrial design
• System Integration: Designed for high-energy industrial distribution networks

Standards and Approvals

• UL Listed
• CSA Certified
• Conforms to Class L fuse requirements for high-current protection systems

Product Data

• Manufacturer: Mersen / Ferraz Shawmut
• Series: Amp-Trap 2000®
• Part Number: A4BQ1000
• EAN/UPC: 782001939380

Applications

• Main electrical service protection
• Industrial power distribution systems
• Large motor protection
• Transformer protection
• Feeder circuit protection
• Commercial and industrial switchboards
• Critical infrastructure power systems
• High fault current environments
• Heavy-duty electrical panels
