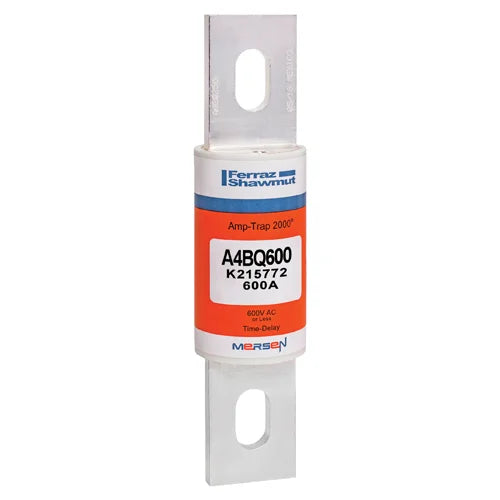

Mersen A4BQ600 Class L Time-Delay Fuse – 600A – 600VAC/500VDC – Amp-Trap 2000® Blade Fuse

The Mersen A4BQ600 is a high-capacity Amp-Trap 2000® Class L time-delay fuse designed for industrial and commercial power distribution systems that require dependable overcurrent protection and selective coordination. Rated at 600 Amps, this current-limiting fuse is engineered to withstand temporary motor starting currents and transformer inrush conditions while providing rapid fault clearing during short-circuit events. With voltage ratings of 600VAC and 500VDC, it is ideally suited for service entrances, feeders, switchboards, and large electrical distribution equipment.

Voltage and Rating

• Current Rating: 600 Amps
• Voltage Rating: 600VAC / 500VDC
• Frequency: 50/60 Hz
• Fuse Class: Class L
• Fuse Type: Time-Delay, Current-Limiting

Key Specifications

• Product Type: Industrial Power Fuse
• Series: Amp-Trap 2000® A4BQ
• Part Number: A4BQ600
• Manufacturer: Mersen / Ferraz Shawmut
• Mounting Style: Blade
• Time-Delay Capability: Yes (motor and transformer inrush tolerant)
• Current Limiting: Yes

Technical Specifications

• Protection Type: Overcurrent and short-circuit protection
• Application Suitability: Main service equipment, feeders, transformers, switchboards, and industrial distribution systems
• Coordination Type: Supports selective coordination with downstream protective devices
• Construction Features: High interrupting capability, low let-through energy, rugged industrial construction
• System Integration: Designed for commercial, industrial, and critical power distribution networks

Standards and Approvals

• UL Listed
• CSA Certified
• Compliant with Class L fuse protection standards

Product Data

• Manufacturer: Mersen / Ferraz Shawmut
• Series: Amp-Trap 2000®
• Part Number: A4BQ600
• EAN/UPC: 782001930714

Applications

• Industrial power distribution systems
• Commercial electrical service equipment
• Main feeder circuit protection
• Transformer protection
• Motor control and protection systems
• Switchboards and switchgear assemblies
• Critical infrastructure facilities
• High fault current applications
• Manufacturing and processing plants
