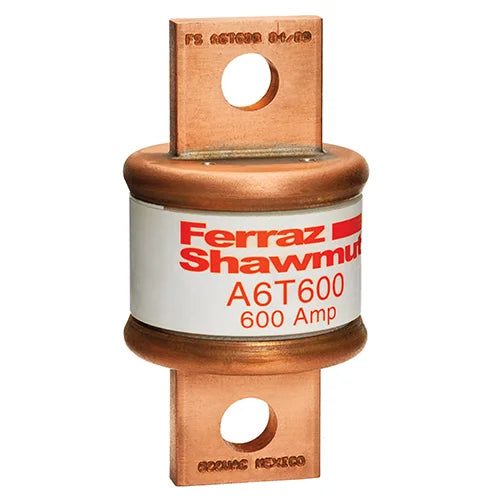

Mersen A6T600 Fuse – Class T – 600A – 600VAC/300VDC – Fast-Acting Blade Fuse (Amp-Trap® A6T)

The Mersen A6T600 is a Class T fast-acting fuse designed for high-energy industrial power systems requiring ultra-fast fault interruption. Rated at 600 Amps, this Amp-Trap® fuse provides rapid clearing of short-circuit currents to protect conductors, switchgear, and sensitive downstream equipment from severe electrical damage. With voltage ratings of 600VAC and 300VDC, it is ideal for demanding AC and DC applications where high interrupting capacity and fast response are essential.

Voltage and Rating

• Current Rating: 600 Amps
• Voltage Rating: 600VAC / 300VDC
• Frequency: 50/60 Hz
• Fuse Class: Class T
• Fuse Type: Fast-Acting (Ultra High-Speed)

Key Specifications

• Product Type: High-Speed Industrial Fuse
• Series: Amp-Trap® A6T
• Part Number: A6T600
• Manufacturer: Mersen
• Mounting Style: Blade
• Response Type: Ultra-fast acting for high fault-current protection
• Performance Class: Class T high interrupting capacity

Technical Specifications

• Protection Type: Short-circuit and overcurrent protection for high-energy systems
• Application Suitability: Industrial feeders, transformers, large distribution panels, and power conversion systems
• Coordination Type: Designed for selective coordination and protection of downstream equipment
• Construction Features: Extremely fast clearing time, high interrupting rating, and compact high-current design
• System Integration: Suitable for AC and DC distribution systems up to rated voltage limits

Standards and Approvals

• UL Listed
• CSA Certified
• Class T fuse standard compliant
• IEC equivalent industrial protection standards (where applicable)

Product Data

• Manufacturer: Mersen
• Series: Amp-Trap® A6T
• Part Number: A6T600
• EAN/UPC: 782001891565

Applications

• High-capacity industrial power distribution systems
• Transformer and feeder protection
• Heavy-duty motor control centers (MCCs)
• UPS and backup power systems
• DC power distribution systems
• Renewable energy systems (solar and wind applications)
• Industrial automation and heavy machinery
