Mersen

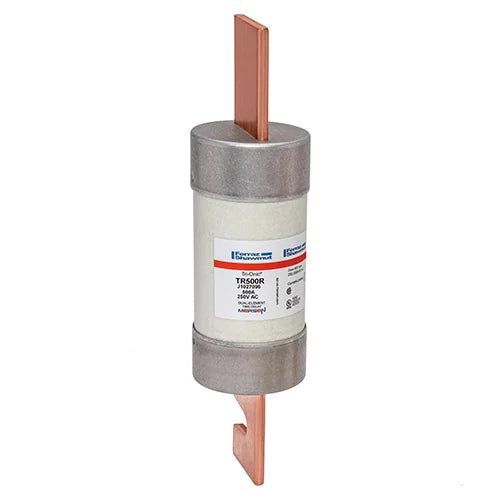

Mersen TR500R Class RK5 Time-Delay Current Limiting Fuse – 500A – 250VAC/160VDC – Tri-Onic® Series

In stock
SKU: TR500R GTIN/UPC: 782001748197
$138.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Mersen TR500R is a Tri-Onic® Class RK5 time-delay fuse designed for dependable overcurrent and short-circuit protection in industrial and commercial electrical systems. Rated at 500 Amps, this current-limiting fuse is engineered to safely withstand temporary motor starting currents and transformer inrush currents while providing reliable circuit protection. Suitable for applications up to 250VAC and 160VDC, the TR500R is commonly used in service entrance equipment, feeders, branch circuits, motors, and transformers where time-delay protection is required.

Voltage and Rating

  • Current Rating: 500 Amps
  • Voltage Rating: 250VAC / 160VDC
  • Frequency: 50/60 Hz
  • Fuse Class: RK5
  • Fuse Type: Time-Delay, Current-Limiting

Key Specifications

  • Product Type: Industrial Fuse
  • Series: Tri-Onic® TR-R
  • Part Number: TR500R
  • Manufacturer: Mersen / Ferraz Shawmut
  • Fuse Class: Class RK5
  • Mounting Style: Blade
  • Time-Delay Feature: Yes
  • Current Limiting: Yes

Technical Specifications

  • Protection Type: Overcurrent and Short-Circuit Protection
  • Suitable For: Motors, Transformers, Feeders, Service Entrance Equipment, and Branch Circuits
  • Inrush Current Handling: Designed to withstand motor starting and transformer energizing currents
  • Construction Features: Time-Delay Operation, Current-Limiting Design
  • Application: Industrial and Commercial Power Distribution

Standards and Approvals

  • Rated Voltage AC (UL): 250VAC
  • Rated Voltage DC (UL): 160VDC
  • Fuse Classification: Class RK5

Product Data

  • Manufacturer: Mersen / Ferraz Shawmut
  • Series: Tri-Onic® TR-R
  • Part Number: TR500R
  • EAN/UPC: 782001748197

Applications

  • Motor Protection
  • Transformer Protection
  • Service Entrance Equipment
  • Feeder Circuit Protection
  • Branch Circuit Protection
  • Industrial Power Distribution Systems
  • Commercial Electrical Installations
  • Motor Control Centers
  • Manufacturing Facilities
  • Heavy-Duty Electrical Infrastructure Systems
  • General Purpose Overcurrent Protection Applications
  • Type Fuses
  • Vendor Mersen
  • Brand Mersen
