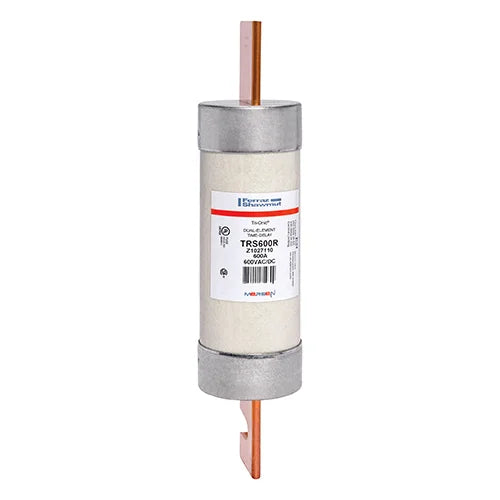

Mersen TRS600R Class RK5 Time-Delay Current Limiting Fuse – 600A – 600VAC/600VDC – Tri-Onic® Series

The Mersen TRS600R is a high-capacity Tri-Onic® Class RK5 time-delay fuse designed for superior overcurrent and short-circuit protection in industrial and commercial electrical systems. Rated at 600 Amps and suitable for both 600VAC and 600VDC applications, this current-limiting fuse safely accommodates motor starting currents and transformer inrush currents while maintaining reliable circuit protection. Featuring a high interrupting capacity of 200kA AC and 20kA DC, the TRS600R is ideal for protecting service entrance equipment, feeders, branch circuits, motors, and transformers in demanding power distribution environments.

Voltage and Rating

• Current Rating: 600 Amps
• Voltage Rating: 600VAC / 600VDC
• Frequency: 50/60 Hz
• Fuse Class: RK5
• Fuse Type: Time-Delay, Current-Limiting

Key Specifications

• Product Type: Industrial Fuse
• Series: Tri-Onic® TRS
• Part Number: TRS600R
• Manufacturer: Mersen / Ferraz Shawmut
• Fuse Class: Class RK5
• Mounting Style: Blade
• Time-Delay Feature: Yes
• Current Limiting: Yes

Technical Specifications

• Interrupting Rating: 200kA AC
• Interrupting Rating: 20kA DC
• Dimensions: 3.125 in × 13.375 in
• Protection Type: Overcurrent and Short-Circuit Protection
• Suitable For: Motors, Transformers, Feeders, Service Entrance Equipment, and Branch Circuits
• Inrush Current Handling: Designed to withstand motor starting and transformer energizing currents
• Construction Features: Time-Delay Operation, Current-Limiting Design

Standards and Approvals

• Rated Voltage AC: 600VAC
• Rated Voltage DC: 600VDC
• Fuse Classification: Class RK5

Product Data

• Manufacturer: Mersen / Ferraz Shawmut
• Series: TRS (Tri-Onic®)
• Part Number: TRS600R
• UPC: 782001749309
• GTIN: 782001749309

Applications

• Motor Circuit Protection
• Transformer Protection
• Service Entrance Equipment
• Feeder Circuit Protection
• Branch Circuit Protection
• Industrial Power Distribution Systems
• Commercial Electrical Installations
• Motor Control Centers
• Manufacturing Facilities
• Heavy-Duty Electrical Infrastructure Systems
