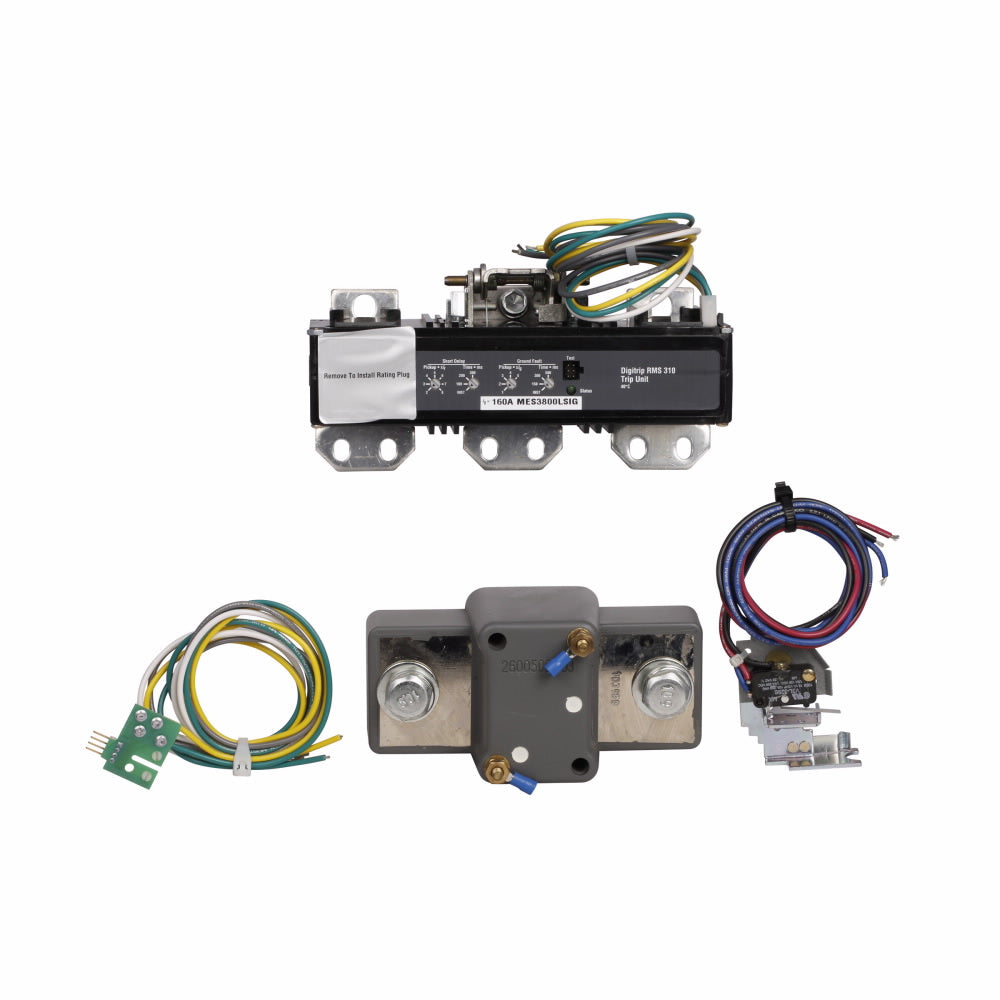

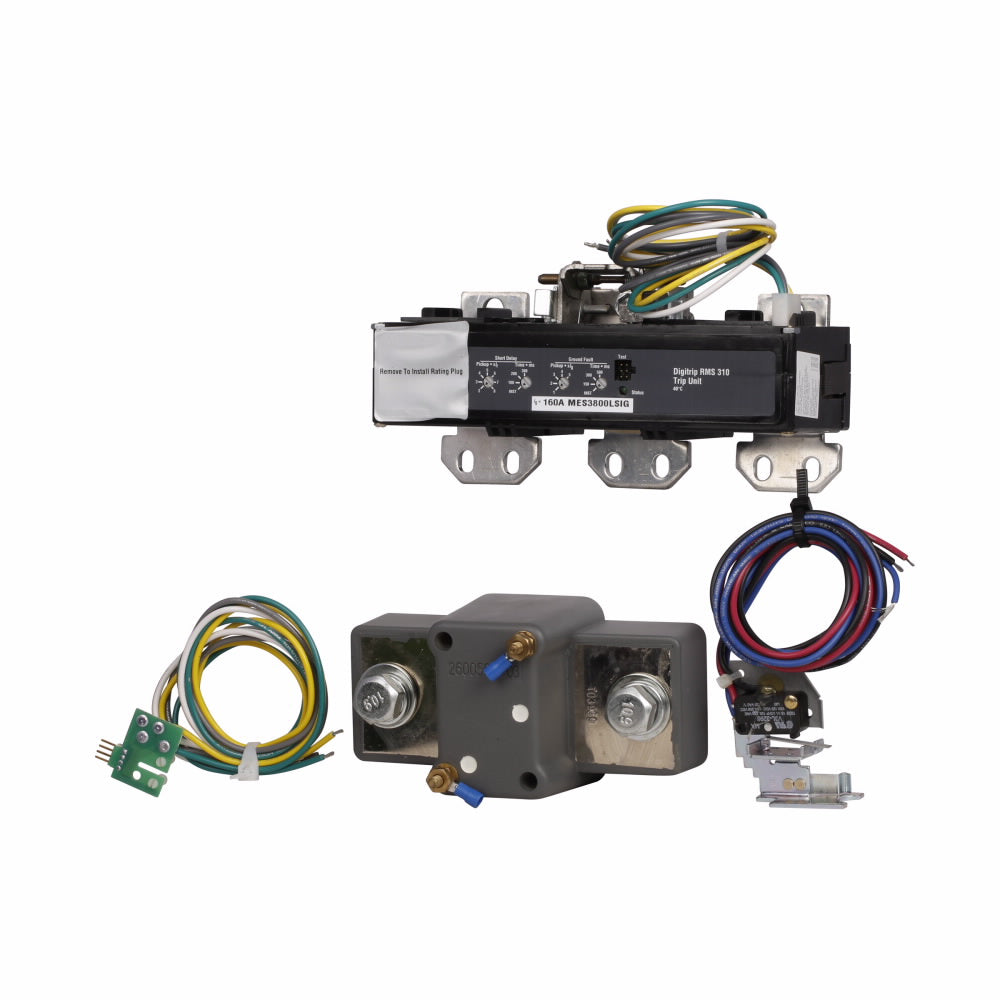

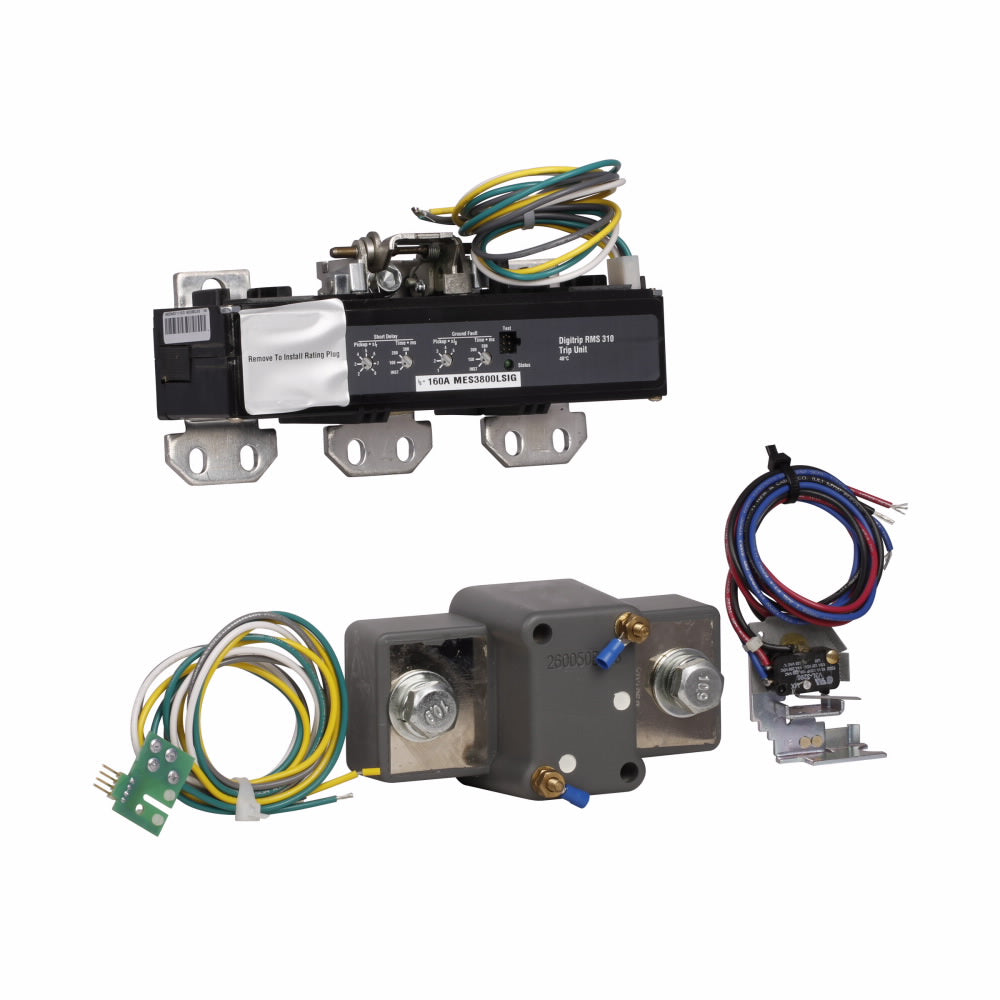

Eaton MES3800LSG 800 Amp Circuit Breaker Trip Unit – 3 Pole – 600 V – LSG – Series C

The Eaton / Cutler-Hammer MES3800LSG is an 800 Amp, 3-pole solid-state circuit breaker trip unit from the Series C MES family. It has a maximum voltage rating of 600 V and uses an interchangeable Digitrip RMS 310 trip unit with Long-Time, Short-Time, and Ground Fault (LSG) trip functions.

Specifications

• Manufacturer: Eaton / Cutler-Hammer
• Brand: Eaton
• Product Type: Circuit Breaker Trip Unit
• Series: Series C
• Type: MES
• Catalog Number / MPN: MES3800LSG
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 V Maximum
• Trip Type: Solid-State
• Trip Unit: Interchangeable Digitrip RMS 310
• Trip Functions: LSG – Long-Time, Short-Time and Ground Fault

Part Numbers & Identification

• Manufacturer: Eaton / Cutler-Hammer
• Brand: Eaton
• Catalog Number / MPN: MES3800LSG
• Series: Series C
• Type: MES
• Current Rating: 800 A
• Pole Count: 3 Pole
• Trip Unit: Digitrip RMS 310
• Trip Functions: LSG – Long-Time, Short-Time and Ground Fault
• UPC:782114371374

Compatibility

The Eaton MES3800LSG is designed for compatible Eaton / Cutler-Hammer Series C MDL, HMDL, CMDL, and CHMDL molded case circuit breaker frame types.
