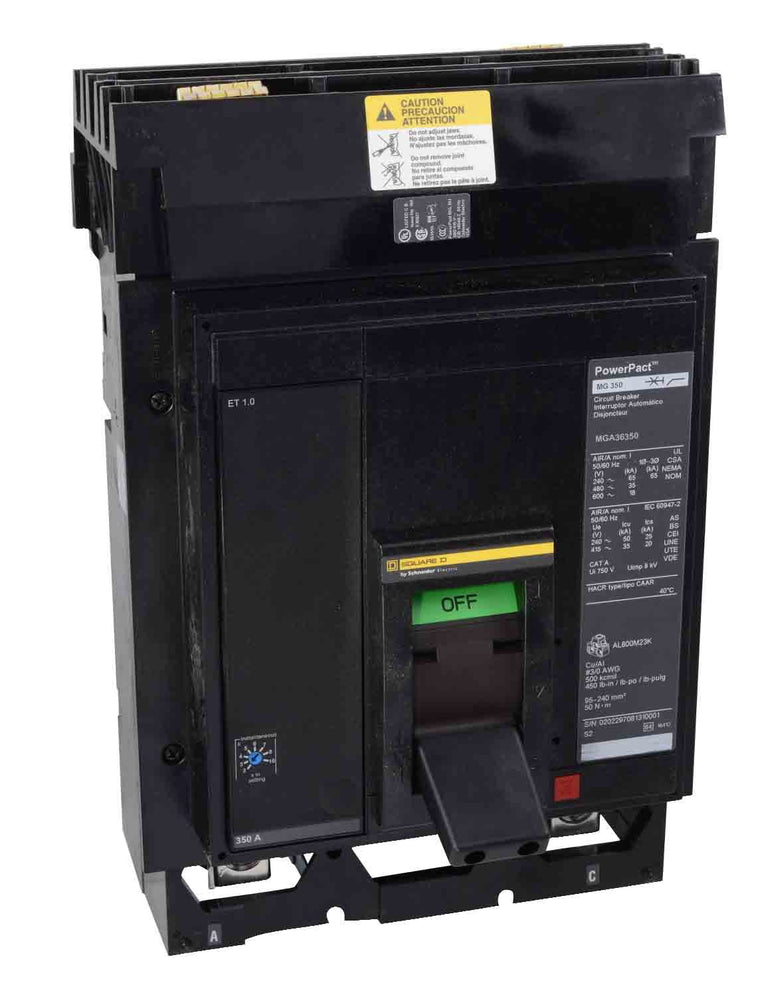

Square D MGA36350 350 Amp PowerPact Molded Case Circuit Breaker – 3 Pole – 600V AC – 35 kA @ 480V

The Square D MGA36350 is a PowerPact MGA molded case circuit breaker designed for three-phase electrical distribution systems. It features a 350A current rating, 600V AC voltage rating, and a high interrupting capacity of 35kA at 480V. The breaker uses an I-Line style plug-in connection and is equipped with a non-interchangeable solid-state trip unit providing long-time and instantaneous (LI) protection.

Specifications

• Brand: Schneider Electric / Square D
• Product Series: PowerPact
• Type: MGA
• MPN: MGA36350
• Current Rating: 350A
• Poles: 3
• Phase: 3-phase
• Phase Connection: ABC
• Voltage Rating: 600V AC
• Interrupting Capacity: 35kA at 480V
• Interrupting Rating: High
• Connection: I-Line style plug-in
• Trip Unit: Non-interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Trip Technology: Solid-state electronic
• Terminals: Load-side lug terminals

Part Numbers & Identification

• Manufacturer Part Number: MGA36350
• Product Family: PowerPact MGA
• Product Category: Molded Case Circuit Breaker (MCCB)
• UPC:785901496090

Compatibility

Designed for compatible Square D PowerPact I-Line panelboards and distribution equipment configured for MGA-type, three-pole breakers with a 350A rating and 600V AC application.

Certifications

• UL Rating: UL Listed
