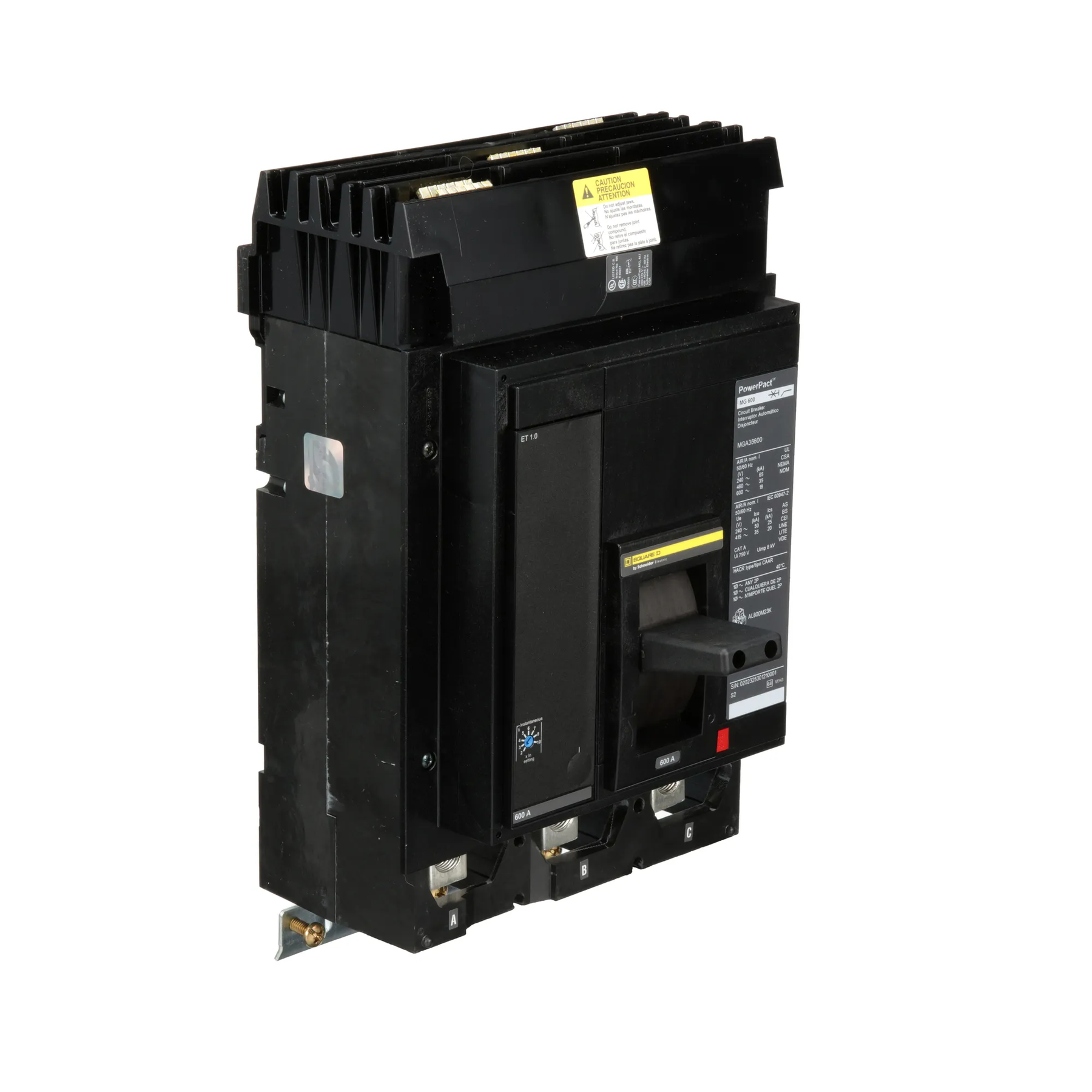

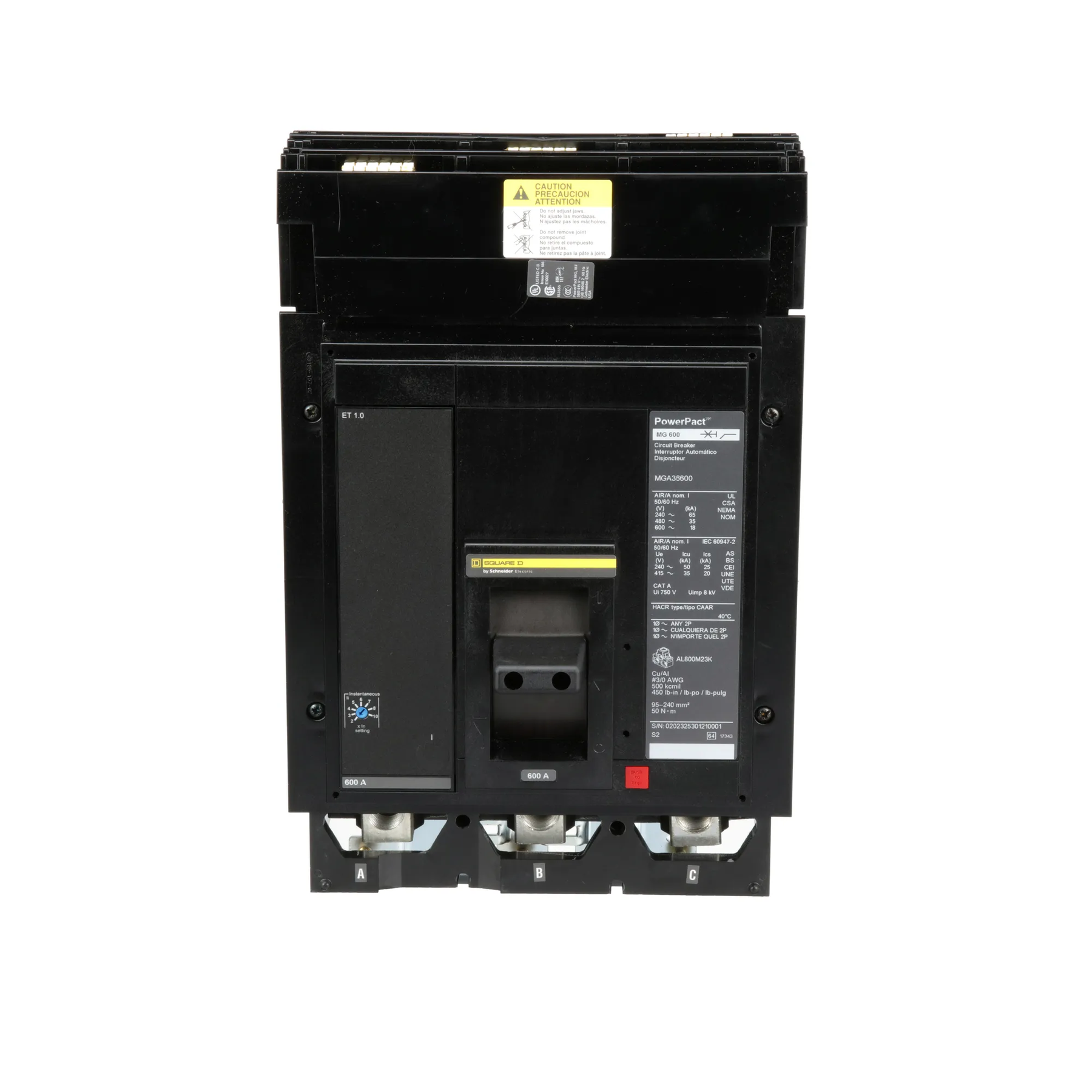

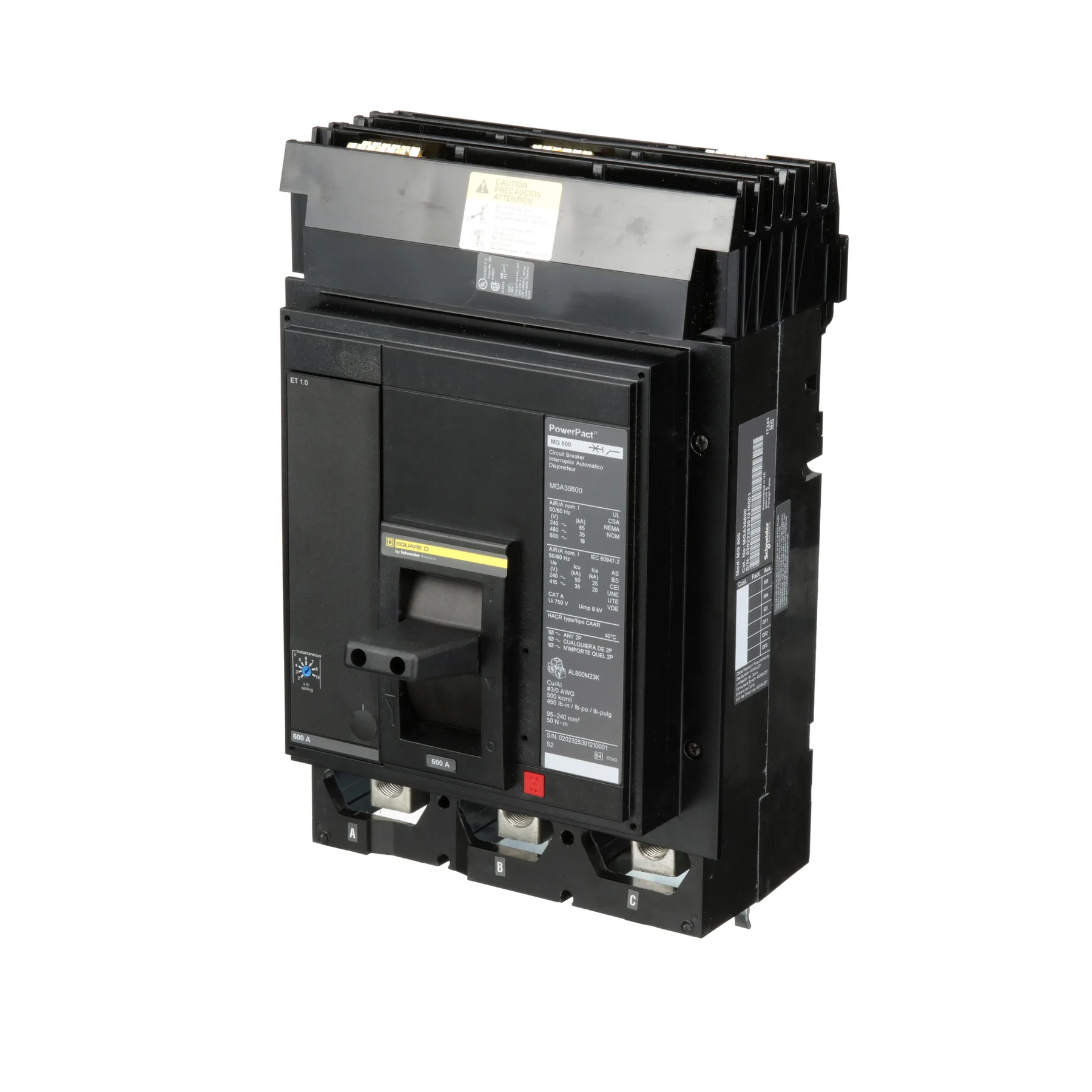

Square D MGA36600 Molded Case Circuit Breaker – 600A – 3-Pole / 3-Phase – 600V AC – 35kA @ 480V – I-Line Plug-In – PowerPact MGA Series

The Square D MGA36600 is a 600A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type MGA Series. It features solid-state thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The MGA36600 is rated for 600V AC and provides a 35kA interrupting rating at 480V AC with high interrupting capacity. It features an I-Line style plug-in connection, ABC phase connection, and a load-side lug terminal.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: MGA
• Type: MGA
• Catalog No.: MGA36600
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V AC
• Interrupting Rating: 35kA @ 480V AC
• Interrupting Capacity: High
• Protection Type: Solid-State
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Terminal Configuration: Load-Side Lug Terminal
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric
• Construction: Molded Case

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MGA36600
• Catalog Number: MGA36600
• Model: MGA36600
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: MGA
• Type: MGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 600A
• UPC:785901428749

Compatibility:

Designed for use with compatible Square D PowerPact MGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The MGA36600 provides 600A, 3-pole protection for compatible 600V AC electrical distribution applications.

The breaker features 35kA interrupting capacity at 480V AC, high interrupting capacity, solid-state protection, non-interchangeable LI trip functions, ABC phase connection, and a load-side lug terminal.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, phase connection, terminal arrangement, and mounting configuration before installation.

Certifications:

• UL Listed
