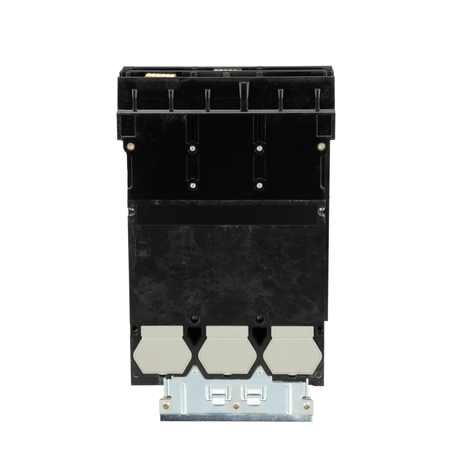

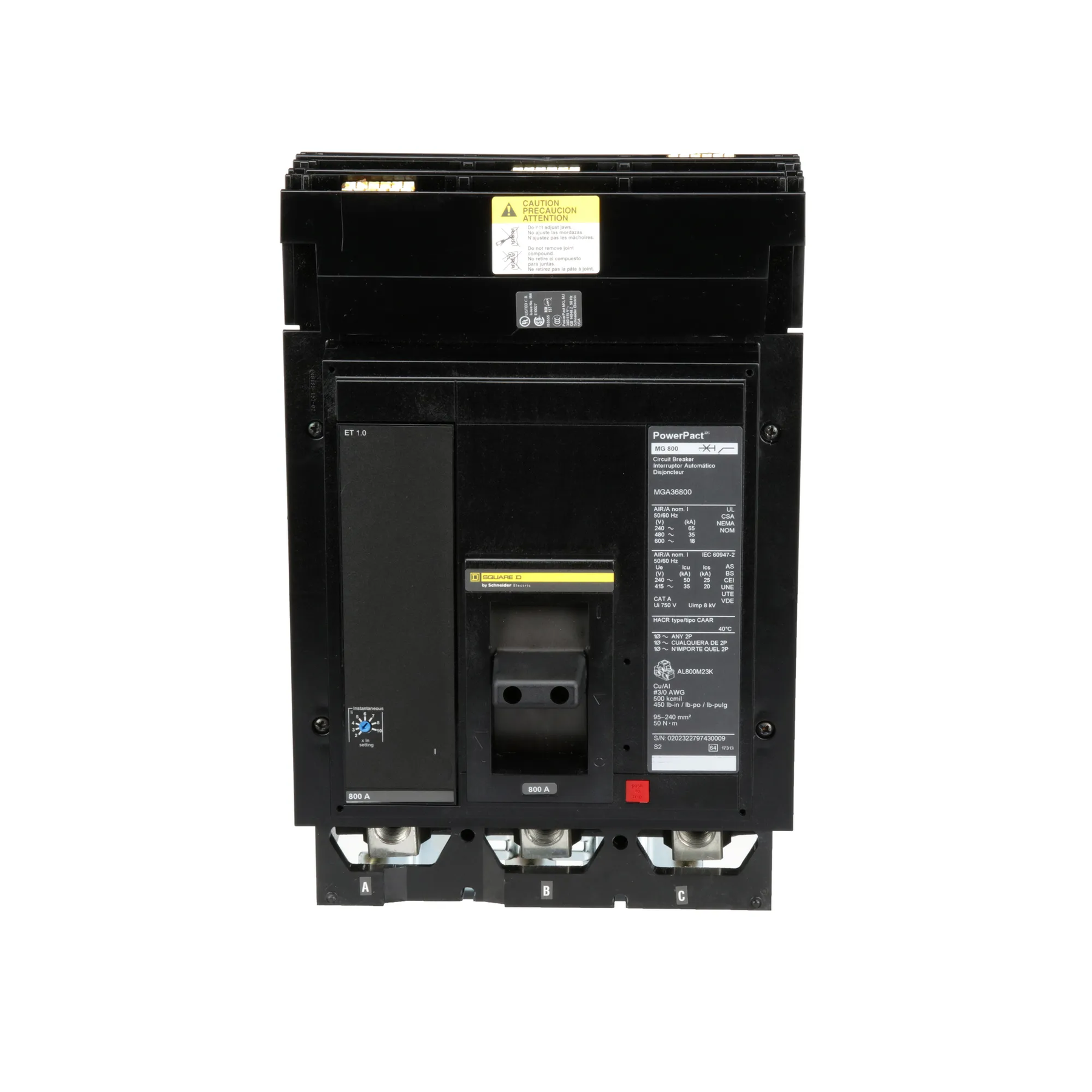

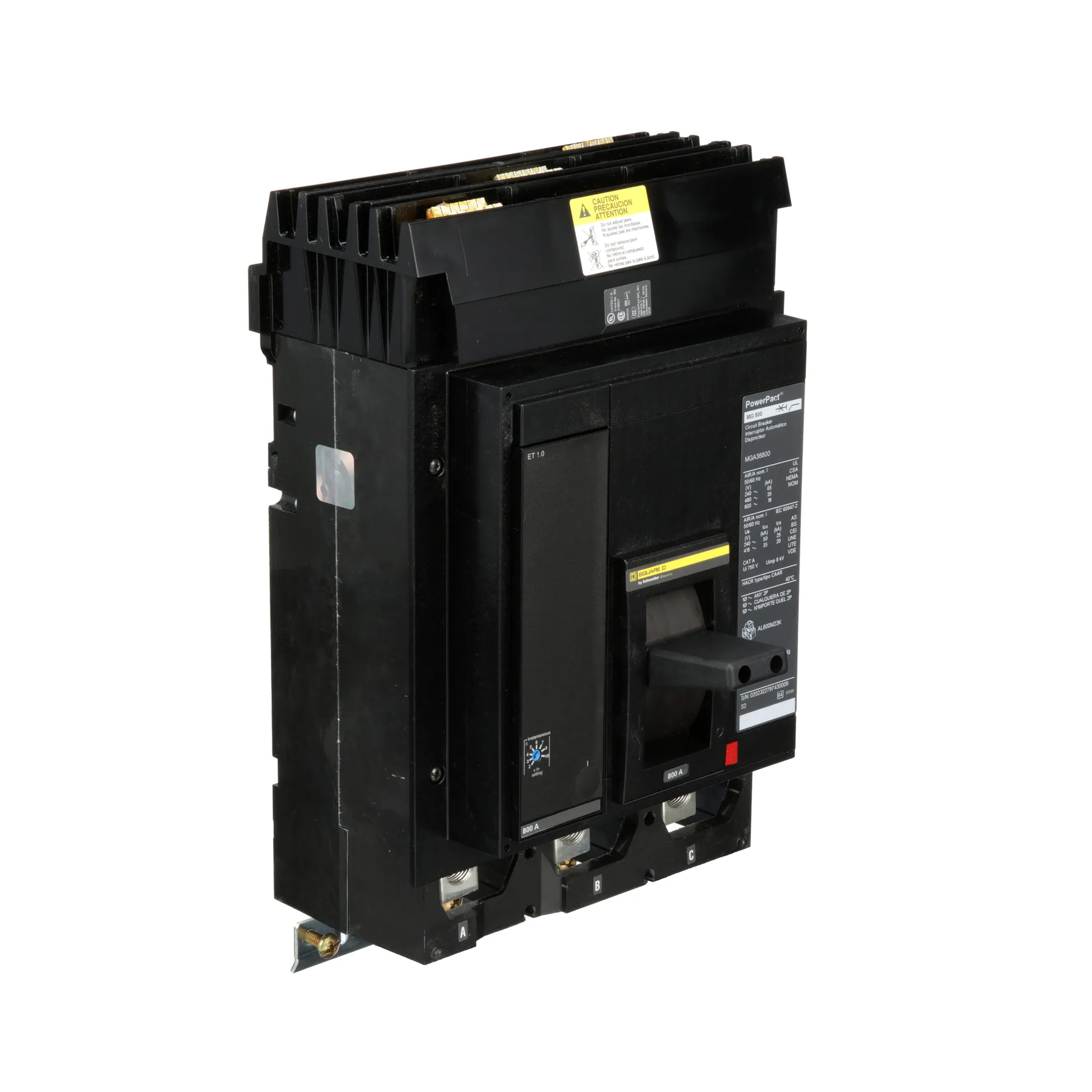

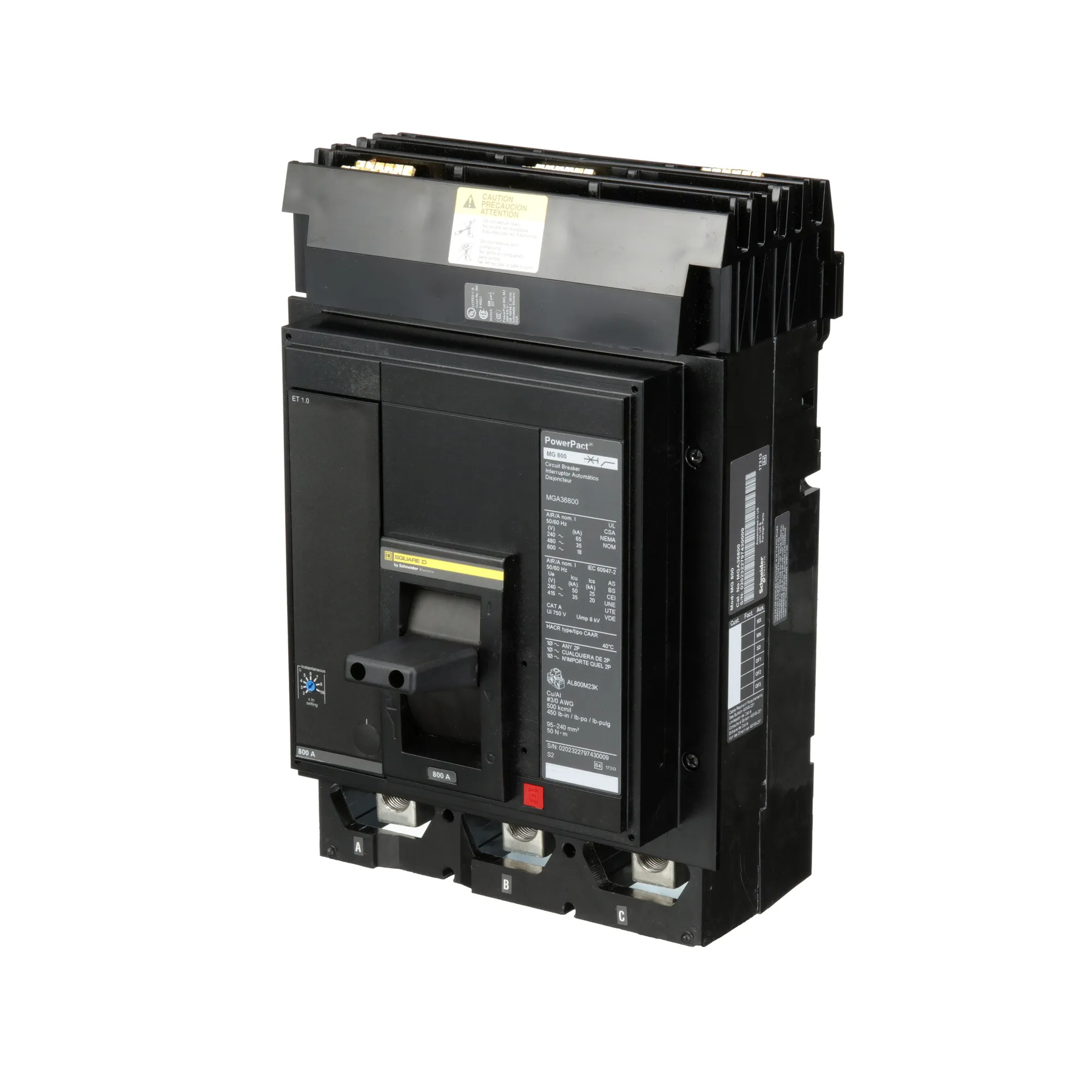

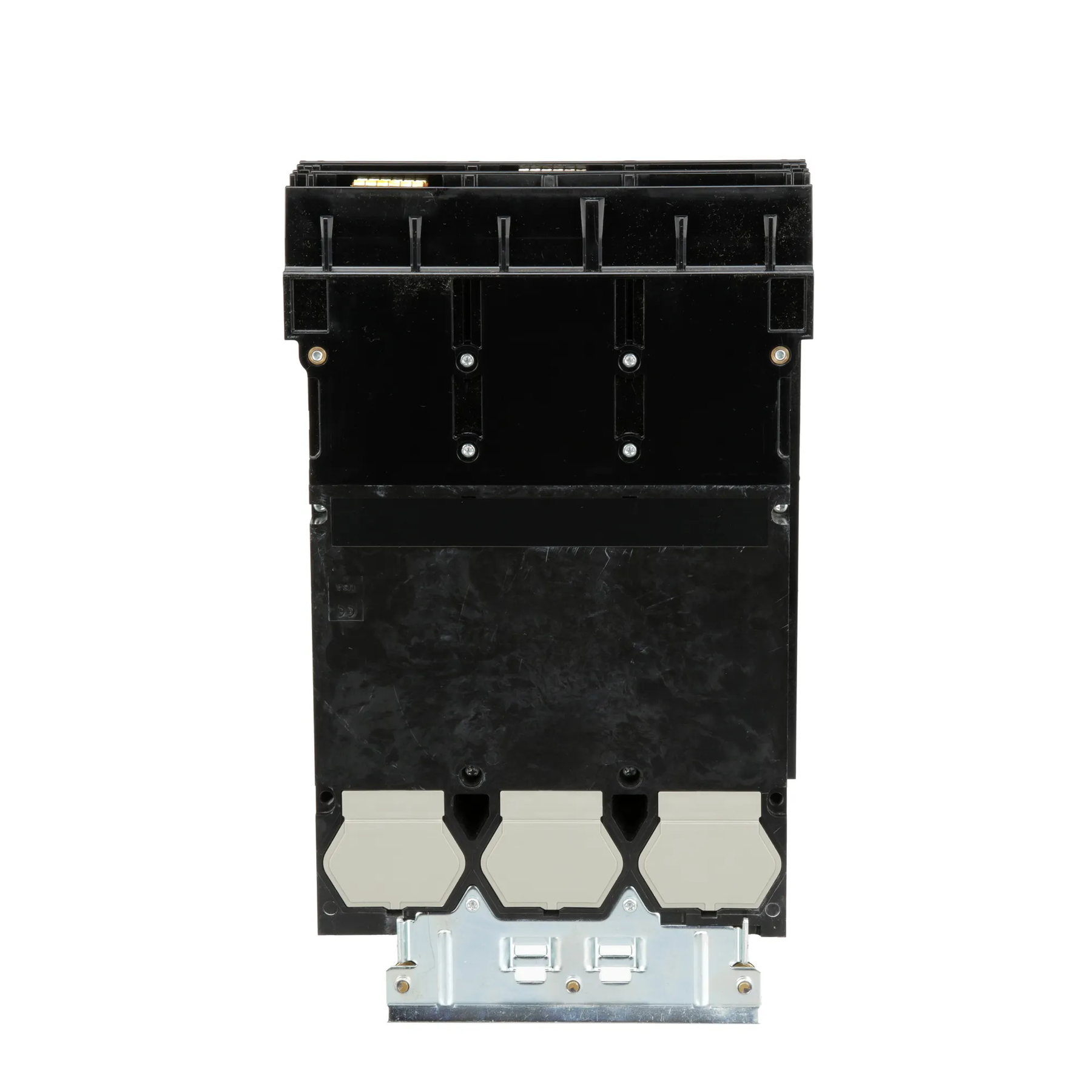

Square D MGA36800 Molded Case Circuit Breaker – 800A – 3-Pole – 600V AC – 35kA @ 480V AC – I-Line Plug-In – PowerPact MGA Series

The Square D MGA36800 is an 800A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type MGA Series. It features solid-state protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The MGA36800 is rated for 600V AC with a 35kA interrupting rating at 480V AC and provides high interrupting capacity. It uses an I-Line style plug-in connection with an ABC phase connection and includes load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: MGA
• Type: MGA
• Catalog No.: MGA36800
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V AC
• Interrupting Rating: 35kA @ 480V AC
• Interrupting Capacity: High
• Protection Type: Solid-State
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Terminal Configuration: Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MGA36800
• Catalog Number: MGA36800
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: MGA
• Type: MGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: MGA36800
• Breaker Configuration: 3-Pole, 800A
• upc:785901496793

Compatibility:

Designed for use with compatible Square D PowerPact MGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The MGA36800 is an 800A, 3-pole, 600V solid-state breaker with a 35kA interrupting rating at 480V AC, high interrupting capacity, LI trip functions, and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, phase connection, terminal arrangement, and mounting configuration before installation.

Certifications:

• UL Listed
• PowerPact MGA Series
• 800A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 35kA @ 480V AC Interrupting Rating
• High Interrupting Capacity
• Solid-State Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Load-Side Lug Terminals
