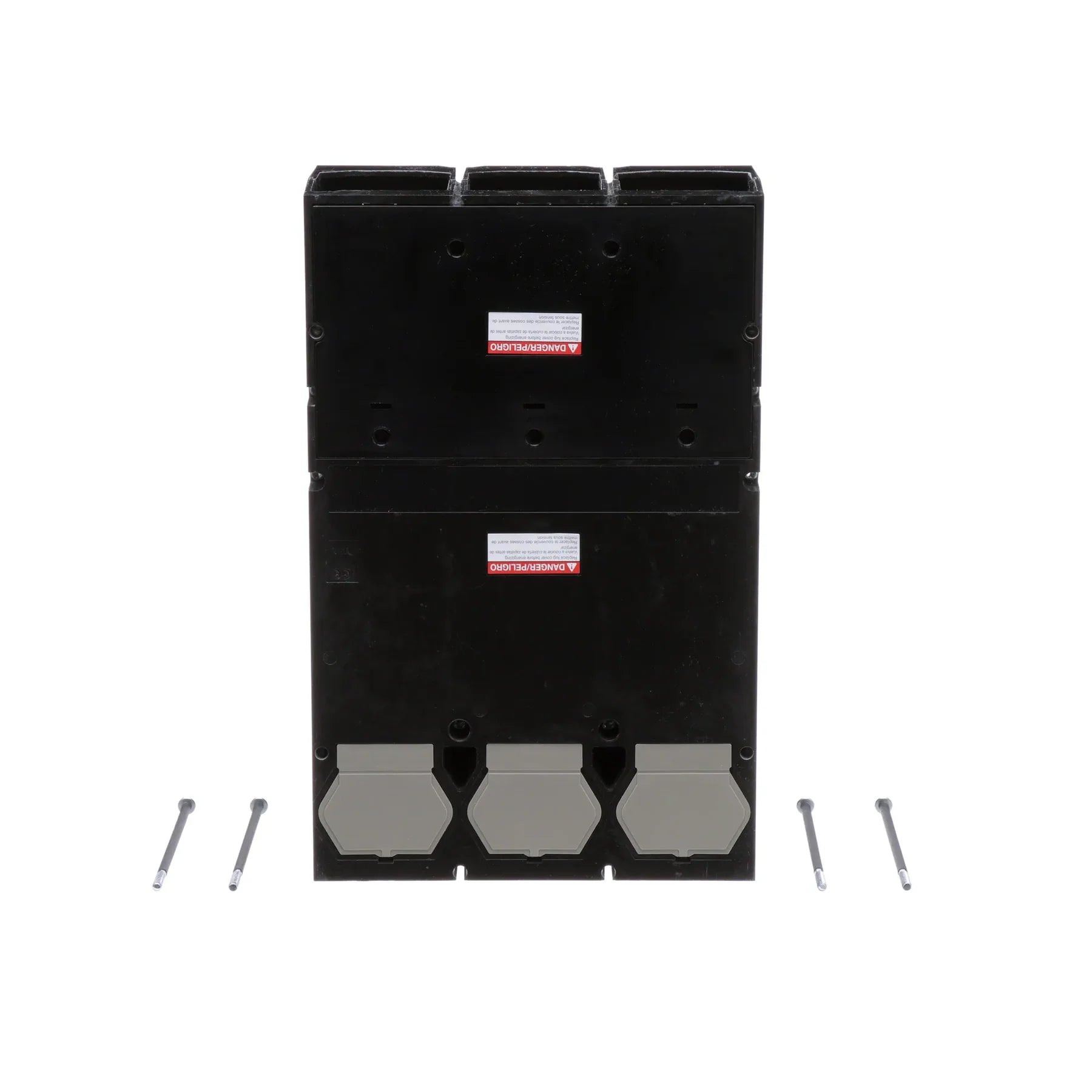

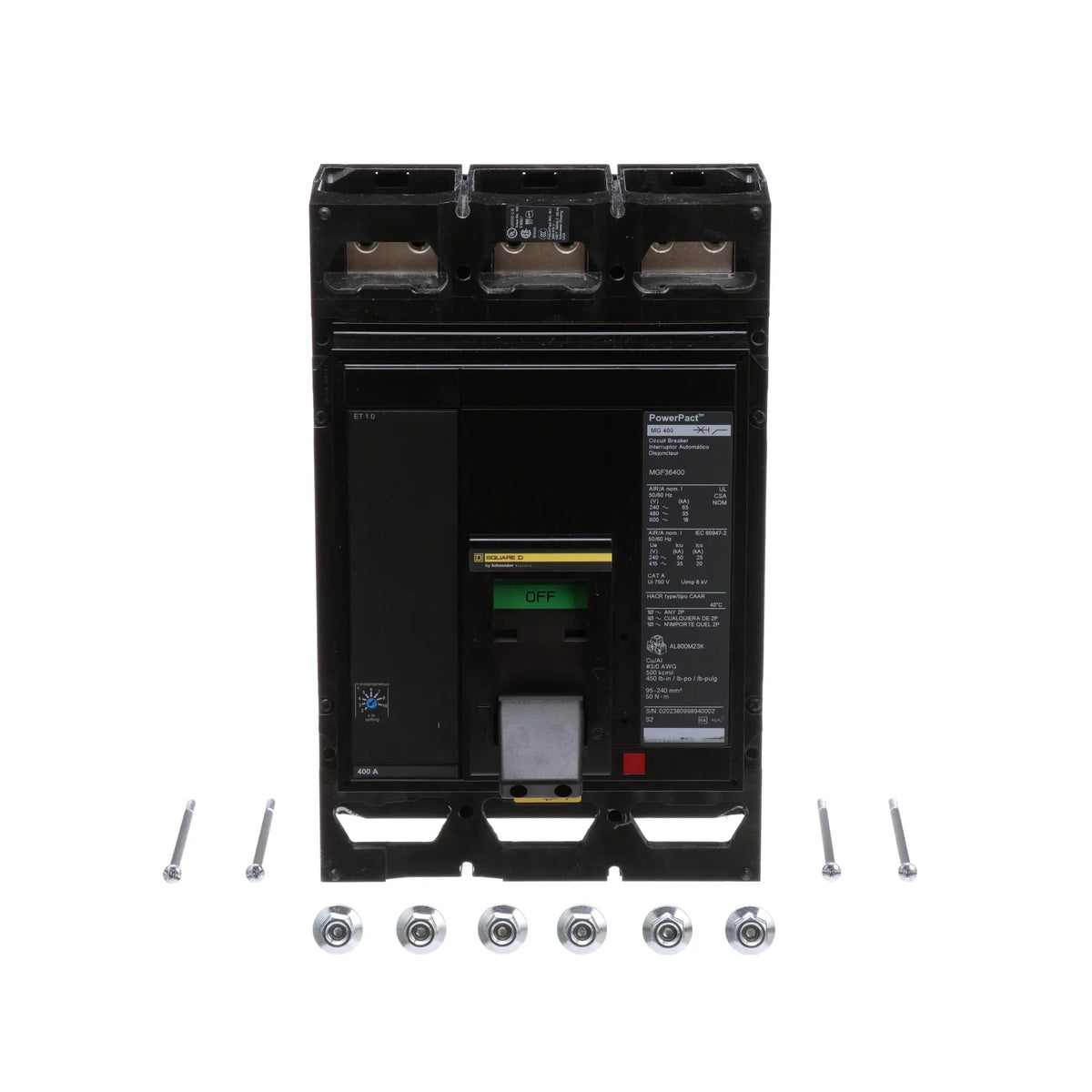

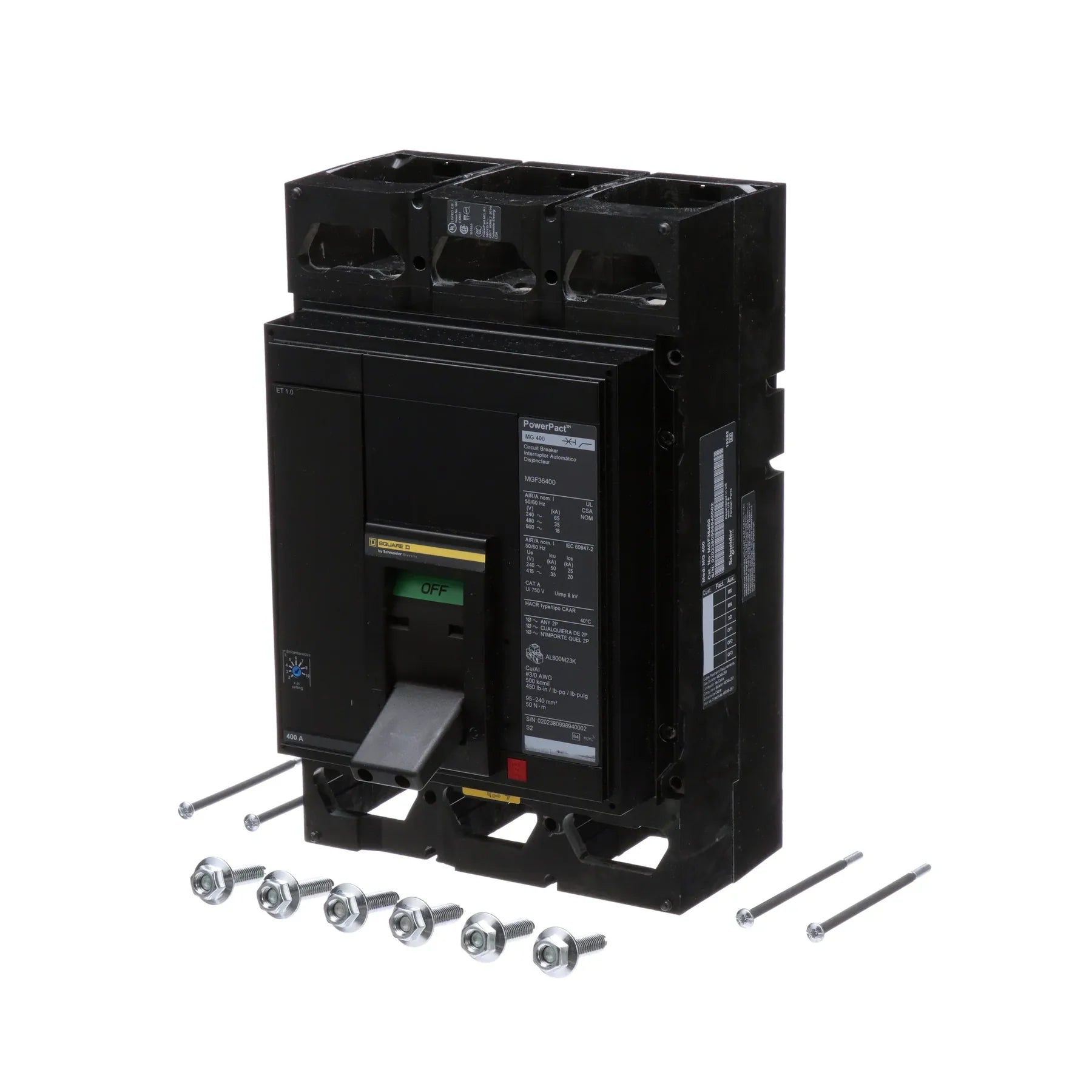

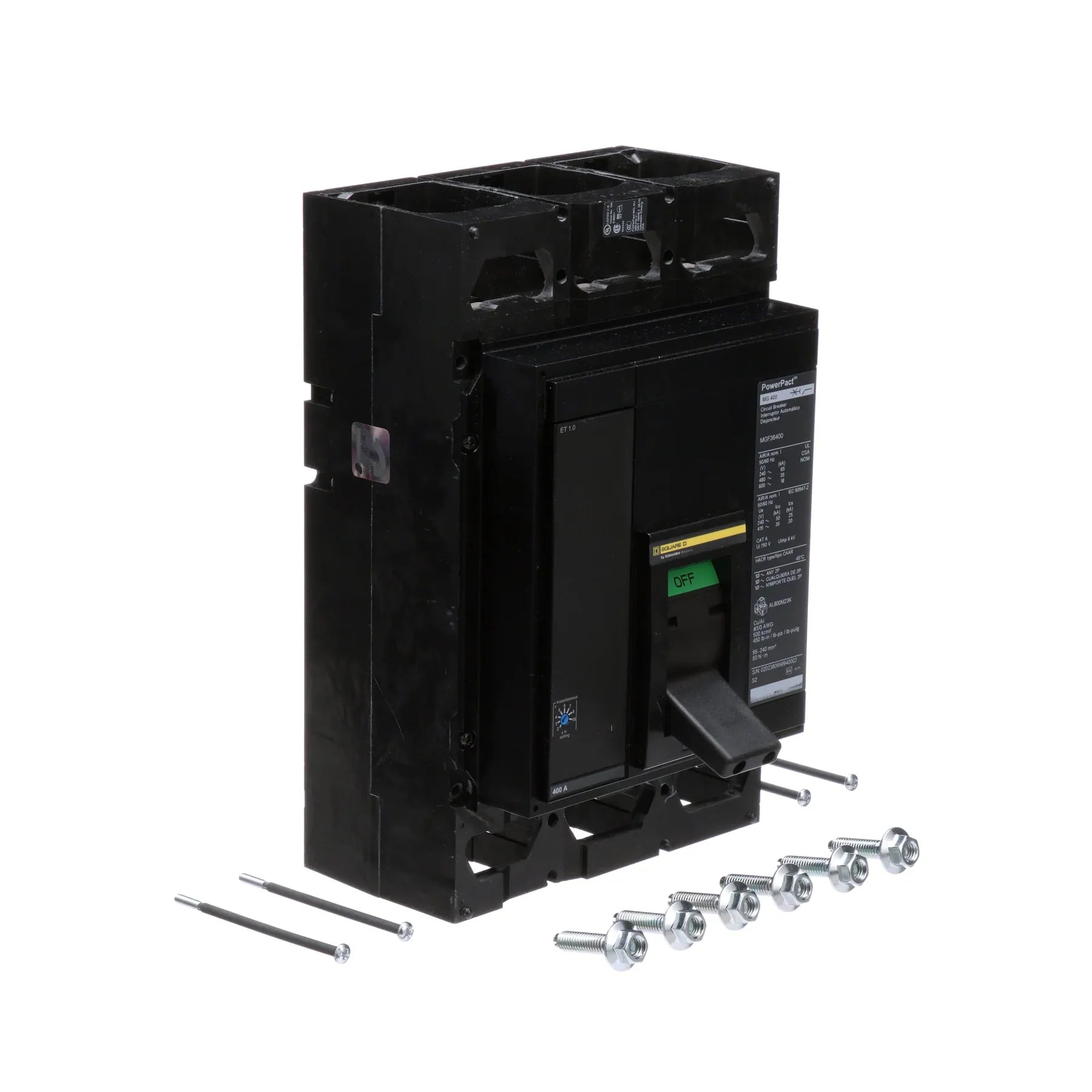

Square D MGL36400 Molded Case Circuit Breaker – 400A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact MGL Series

The Square D MGL36400 is a 400A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type MGL Series. It features solid-state electronic protection with a basic non-interchangeable 1.0 trip and Long-Time and Instantaneous (LI) trip functions.

The MGL36400 is rated for 600V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It features a feed-thru configuration with line- and load-side lug terminals and is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: MGL
• Type: MGL
• Catalog No.: MGL36400
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Type: Non-Interchangeable
• Trip Rating: Basic 1.0
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MGL36400
• Catalog Number: MGL36400
• Model: MGL36400
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: MGL
• Type: MGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 400A
• Trip Configuration: Basic 1.0, Non-Interchangeable LI
• UPC:785901507659

Compatibility:

Designed for use with compatible Square D PowerPact MGL Series electrical distribution equipment that accepts MGL Series molded case circuit breakers. The MGL36400 provides 400A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features a basic non-interchangeable 1.0 trip, LI Long-Time and Instantaneous trip functions, a feed-thru configuration, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit compatibility, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact MGL Series
• 400A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• Basic 1.0 Trip
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Square D / Schneider Electric Product
