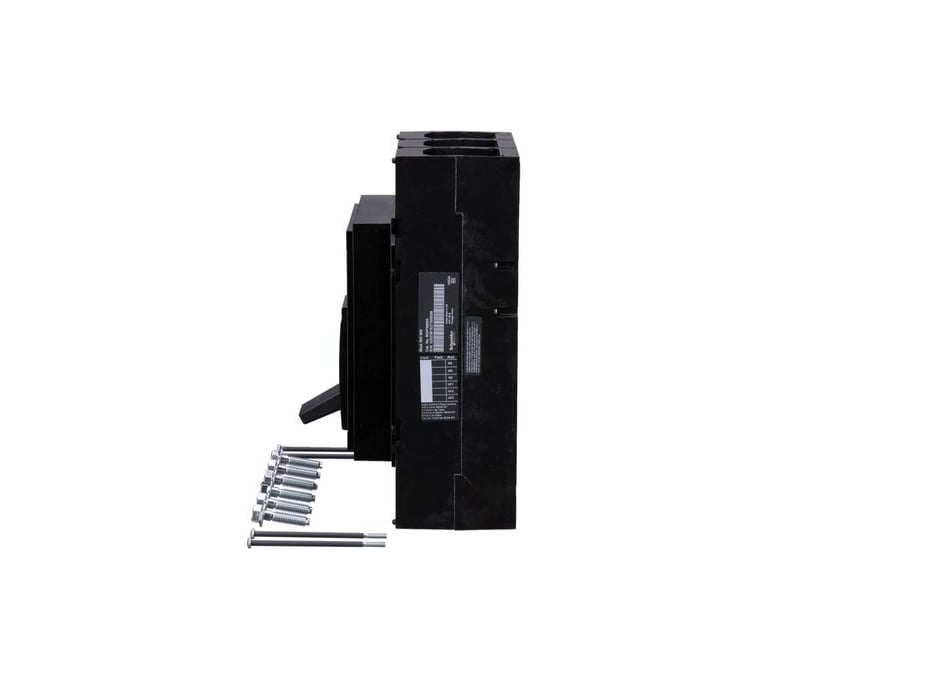

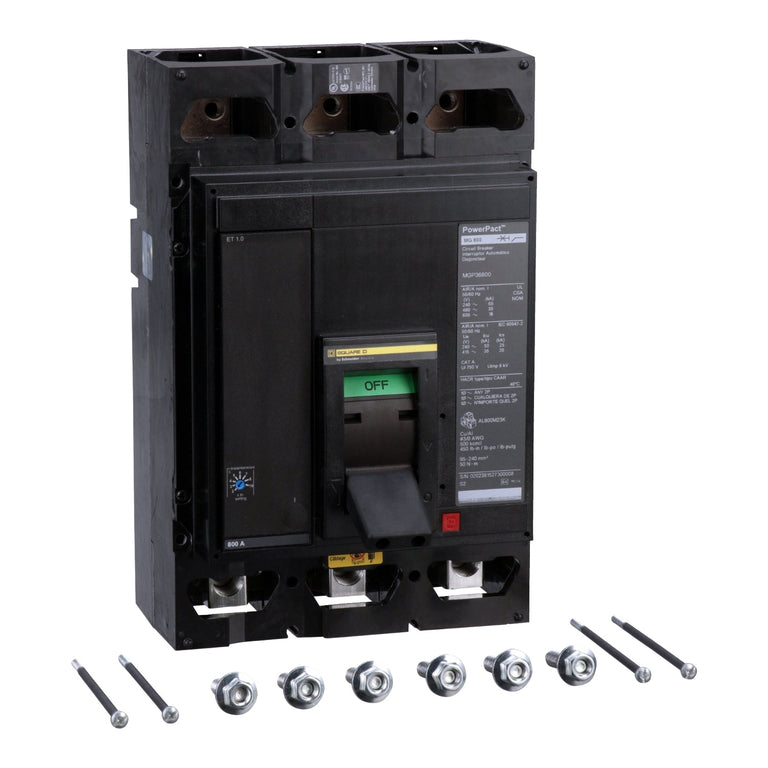

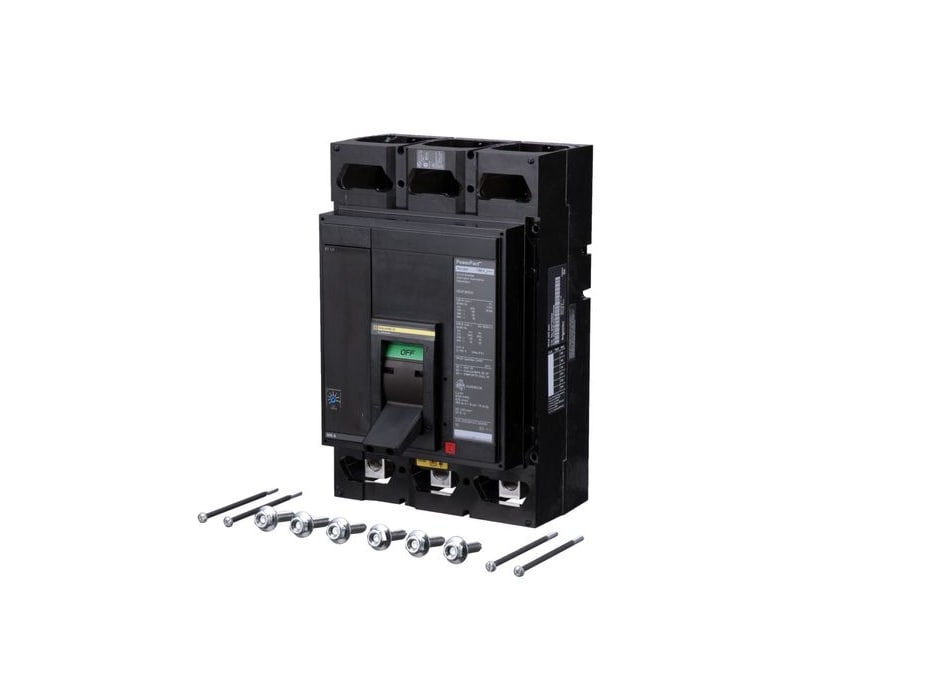

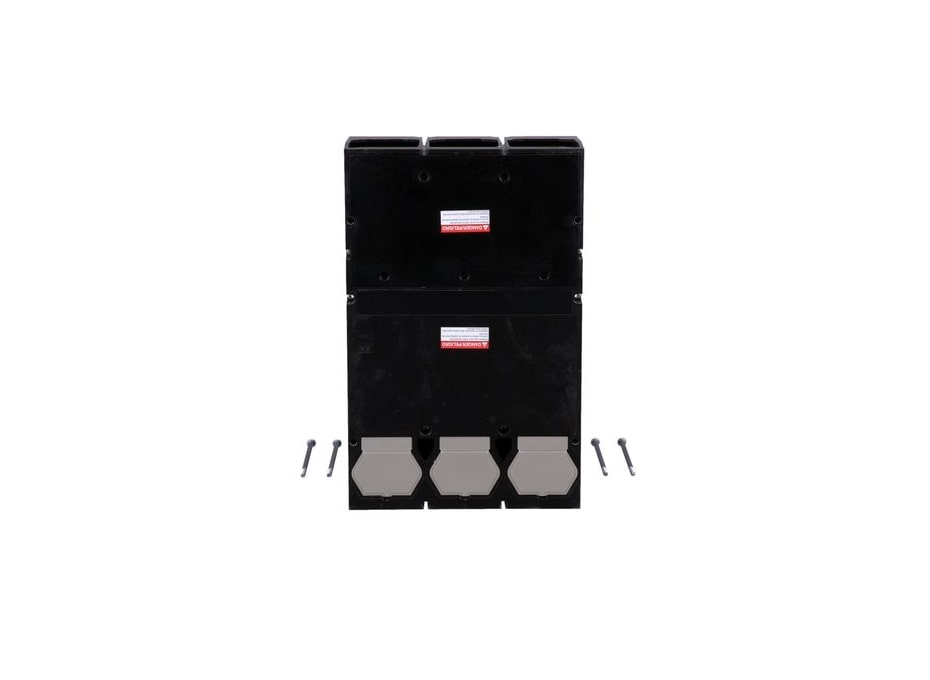

Square D MGP36800 Molded Case Circuit Breaker – 800A – 3-Pole / 3-Phase – 600V AC – 35kAIC @ 480V – Unit Mount – PowerPact M Series

The Square D MGP36800 is an 800A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact M Series. It features a solid-state electronic ET 1.0 trip unit with Long-Time and Instantaneous protection for overload and short-circuit protection.

The breaker is rated for 600V AC and is also specified for 250V DC applications. It provides interrupting capacities of 65kAIC at 240V AC, 35kAIC at 480V AC, and 18kAIC at 600V AC. The unit includes an integral push-to-trip button for manual testing, with terminal nuts on the line side and lugs on the load side.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: M Series
• Frame: M Frame
• Catalog No.: MGP36800
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 65kAIC @ 240V AC; 35kAIC @ 480V AC; 18kAIC @ 600V AC
• Trip Unit: Solid-State Electronic ET 1.0
• Trip Functions: Long-Time and Instantaneous
• Trip Range: 1600–8000A
• Mounting Type: Unit Mount
• Line-Side Connection: Terminal Nuts
• Load-Side Connection: Lugs
• Test Function: Integral Push-to-Trip Button
• Frequency Rating: 50/60Hz
• Continuous Current Rating: 80% of Nominal
• Application: Commercial and Industrial Electrical Distribution

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MGP36800
• Catalog Number: MGP36800
• Model: MGP36800
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: M Series
• Frame: M Frame
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 800A
• Trip Unit: ET 1.0
• UPC / GTIN: 785901502494

Compatibility:

Designed for use with compatible Square D PowerPact M Series switchboards and electrical distribution equipment that accepts the MGP36800 molded case circuit breaker. The breaker provides 800A, 3-pole electronic overcurrent protection for compatible 600V AC systems.

The MGP36800 uses a unit-mount configuration with line-side terminal nuts and load-side lugs. Always verify the specific switchboard or panelboard model, approved breaker configuration, system voltage, available fault current, trip-unit requirements, connection arrangement, and installation instructions before installation.

Certifications:

• UL 489
• CSA C22.2
• NOM
• IEC Standards
• CE
