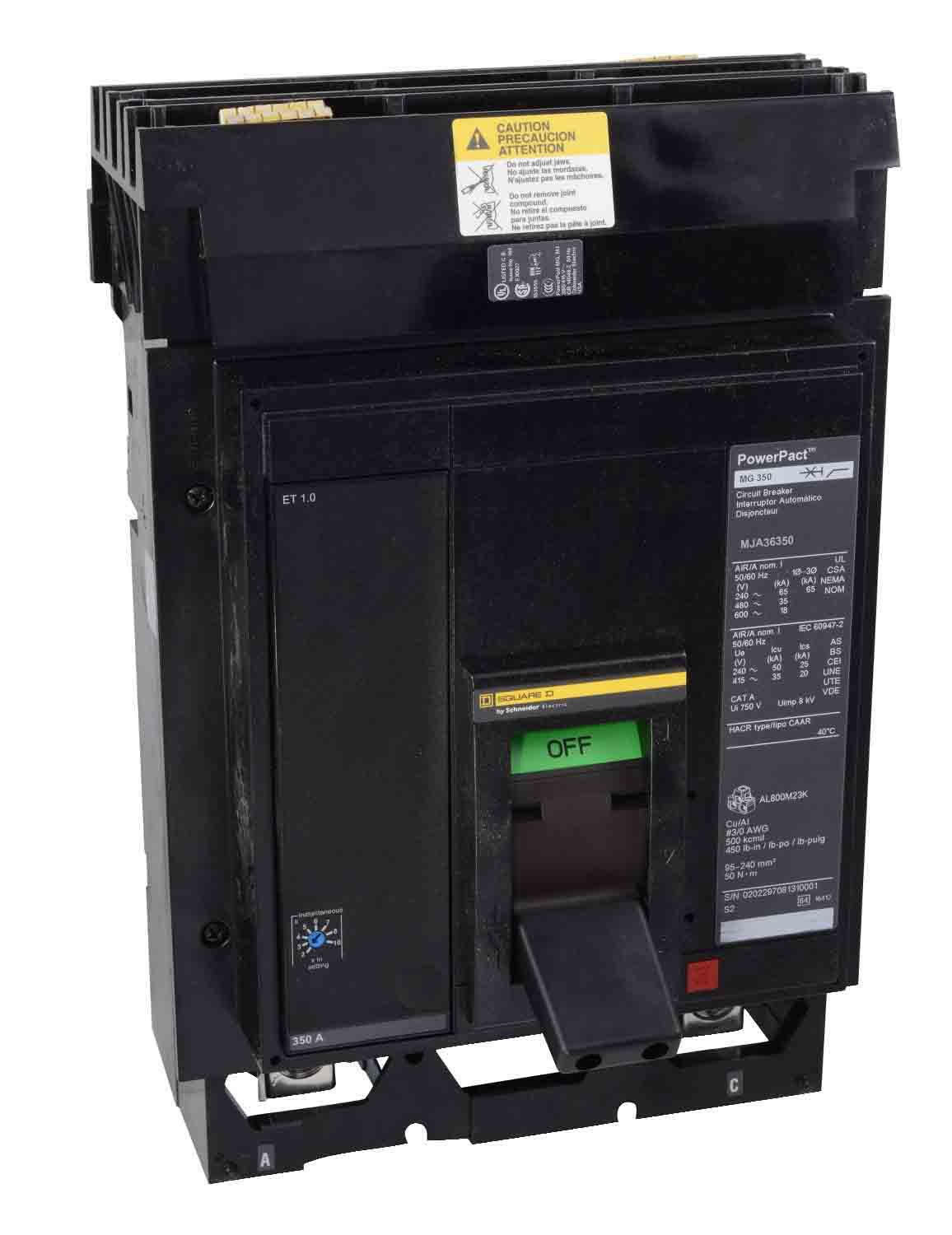

Square D MJA36350 Molded Case Circuit Breaker – 350A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – I-Line Style Plug-In – PowerPact MJA Series

The Square D MJA36350 is a 350A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type MJA Series. It features solid-state electronic protection with a basic non-interchangeable 1.0 trip and Long-Time and Instantaneous (LI) trip functions.

The MJA36350 is rated for 600V and provides a 65kA interrupting rating at 480V. It features current-limiting construction, an I-Line style plug-in connection, an ABC phase connection, and load-side lug terminals. The breaker is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: MJA
• Type: MJA
• Catalog No.: MJA36350
• Current Rating: 350A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Protection Type: Solid-State Electronic
• Trip Configuration: Basic Non-Interchangeable 1.0 Trip
• Trip Functions: Long-Time and Instantaneous (LI)
• Current Limiting: Current Limiting
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MJA36350
• Catalog Number: MJA36350
• Model: MJA36350
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: MJA
• Type: MJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 350A
• UPC:785901689584

Compatibility:

Designed for use with compatible Square D PowerPact MJA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The MJA36350 provides 350A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, an ABC phase connection, a basic non-interchangeable 1.0 trip, LI trip functions, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, phase connection, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact MJA Series
• 350A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• Solid-State Electronic Protection
• Current Limiting
• Basic Non-Interchangeable 1.0 Trip
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Style Plug-In
• ABC Phase Connection
• Load-Side Lug Terminals
