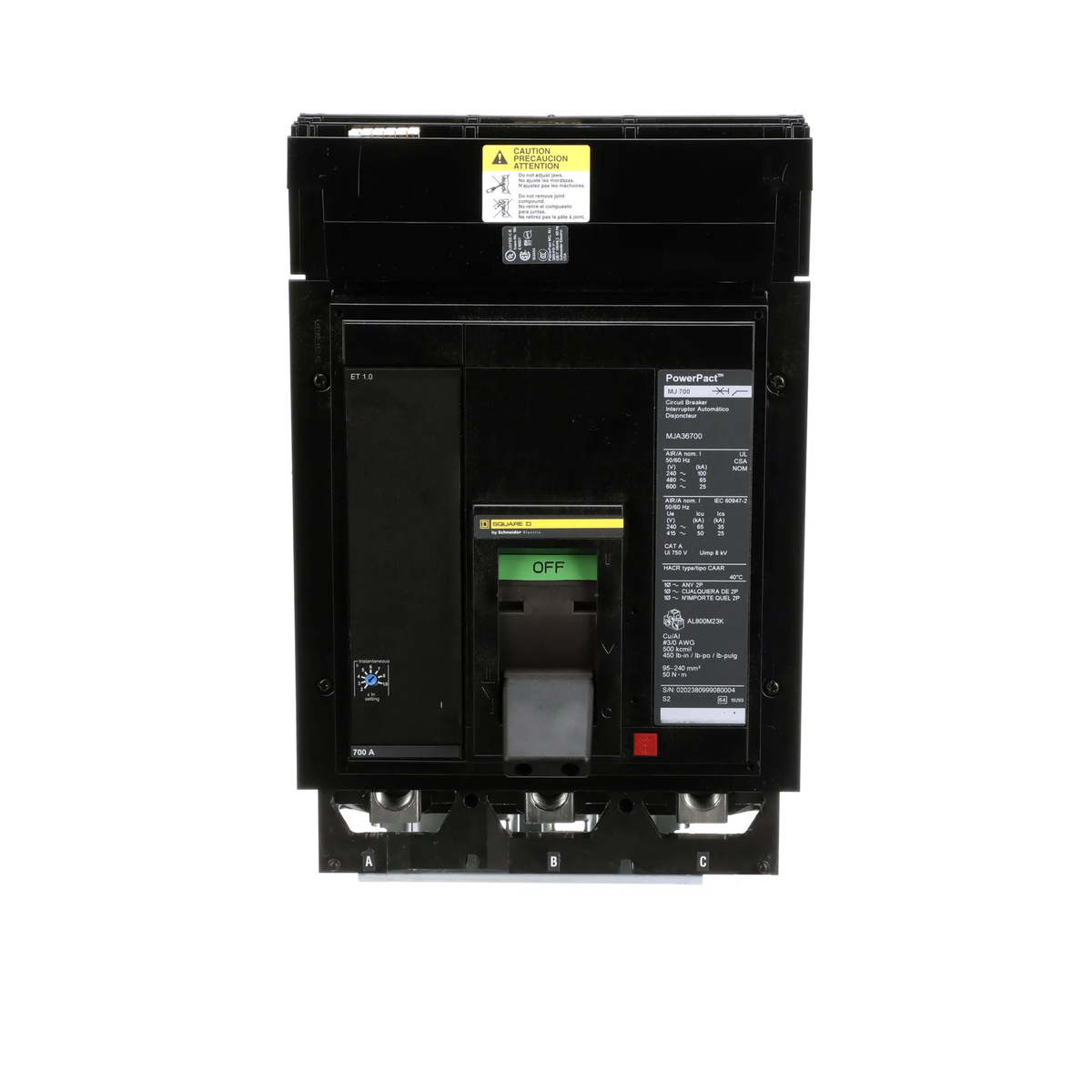

Square D MJA36700 Molded Case Circuit Breaker – 700A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – I-Line Style Plug-In – PowerPact MJA Series

The Square D MJA36700 is a 700A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type MJA Series. It features solid-state electronic protection with a basic non-interchangeable 1.0 trip and LI (Long-Time and Instantaneous) trip functions.

The MJA36700 is rated for 600V and provides a 65kA interrupting rating at 480V with a current-limiting design. It uses an I-Line style plug-in connection, an ABC phase configuration, and load-side lug terminals. The breaker is supplied as a complete circuit breaker and is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: MJA
• Type: MJA
• Catalog No.: MJA36700
• Current Rating: 700A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Configuration: ABC
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Current Limiting
• Protection Type: Solid-State Electronic
• Trip Unit: Basic Non-Interchangeable 1.0 Trip
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Terminal Type: Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MJA36700
• Catalog Number: MJA36700
• Model: MJA36700
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: MJA
• Type: MJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 700A
• Phase Configuration: ABC
• Trip Unit: Basic Non-Interchangeable 1.0
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC:785901862000

Compatibility:

Designed for use with compatible Square D PowerPact MJA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The MJA36700 provides 700A solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features a current-limiting design, ABC phase configuration, and load-side lug terminals.

Certifications:

• UL Listed
