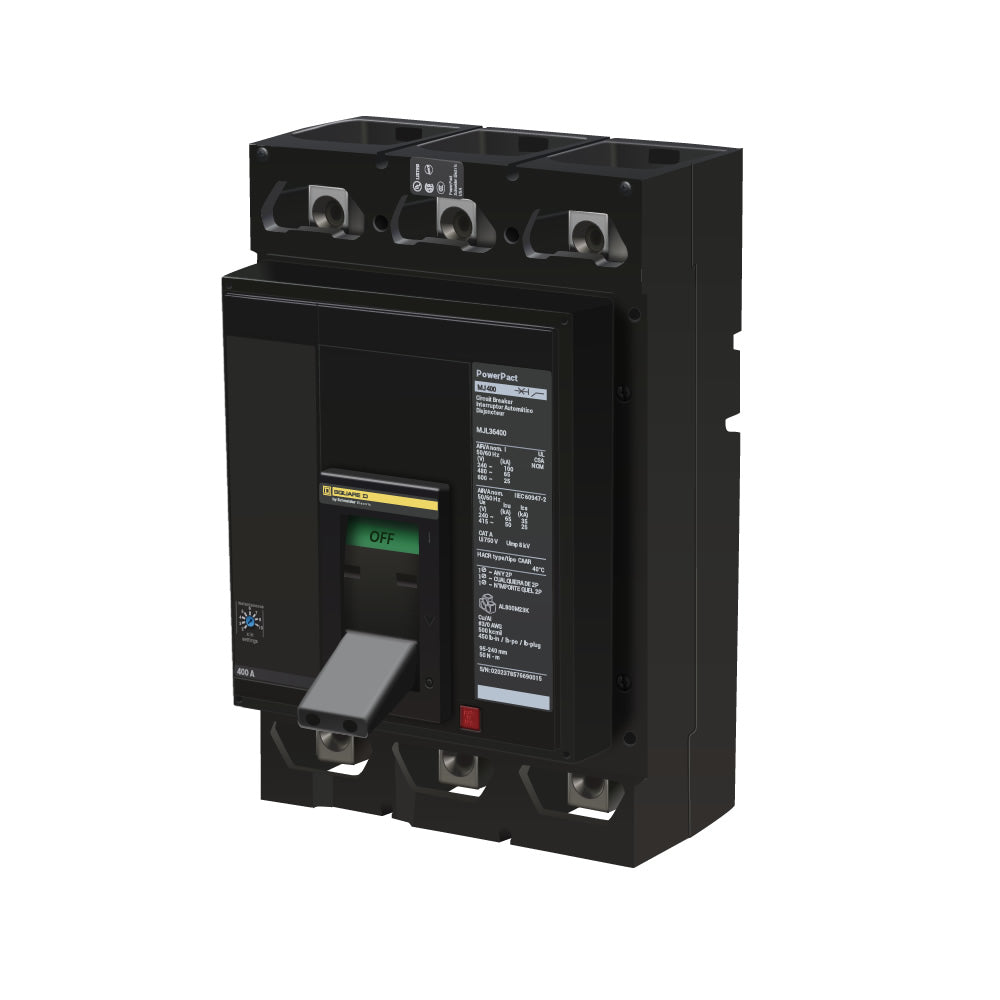

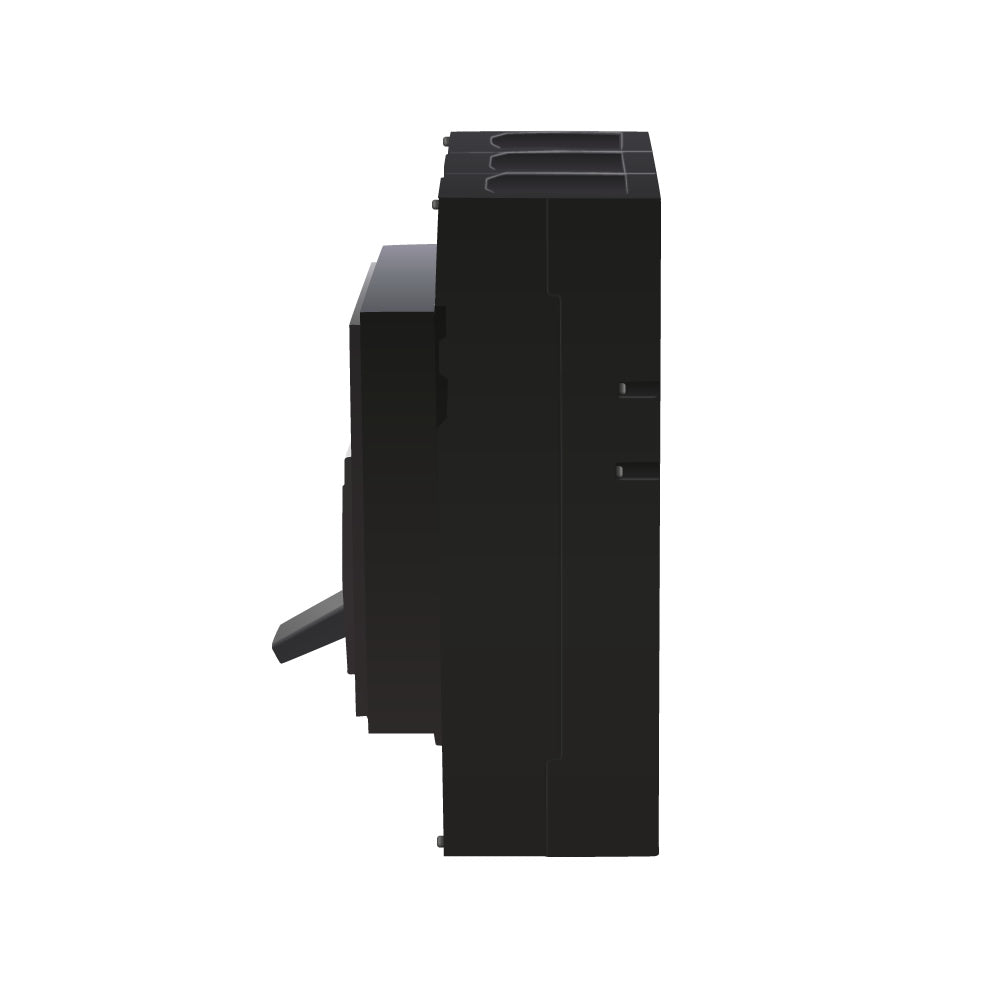

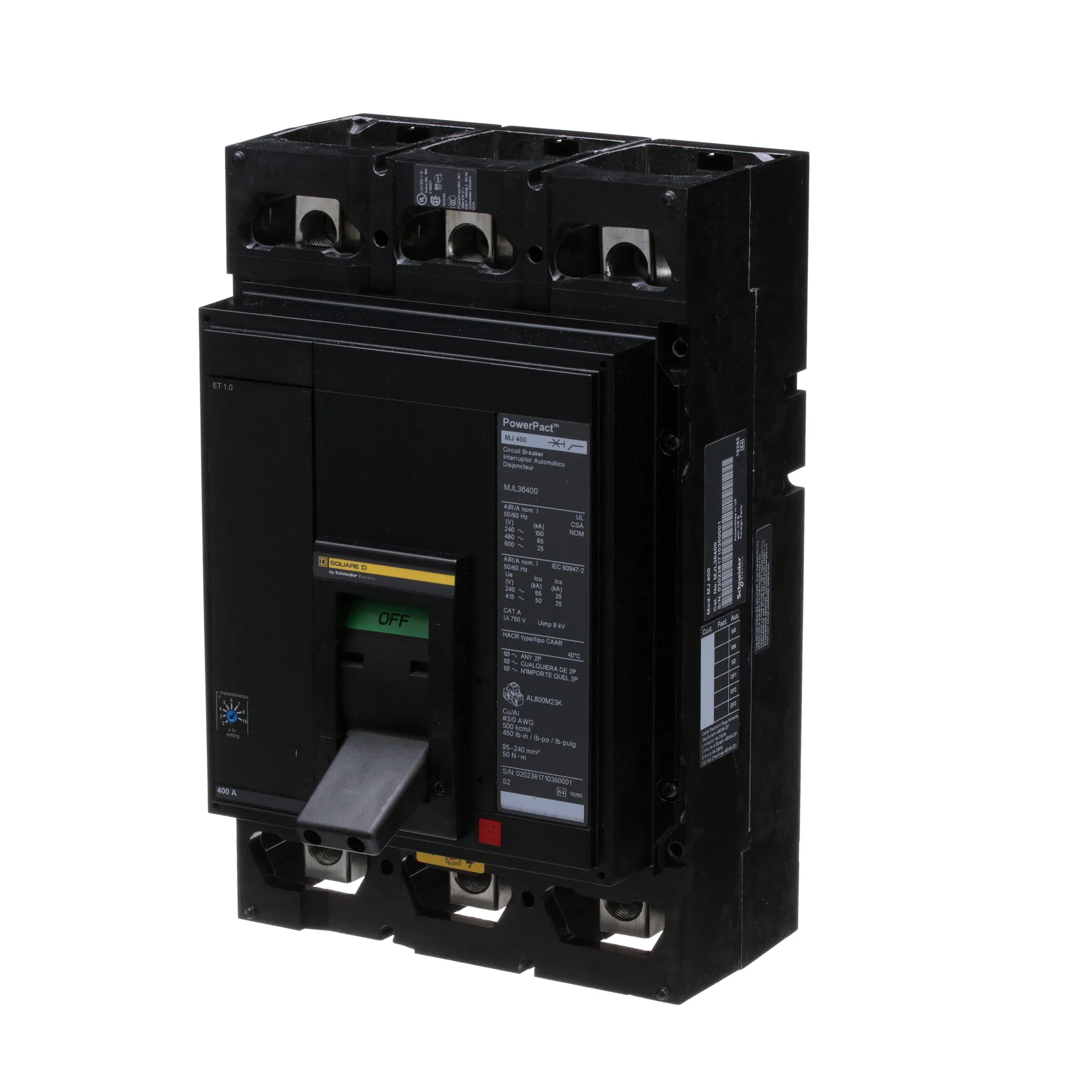

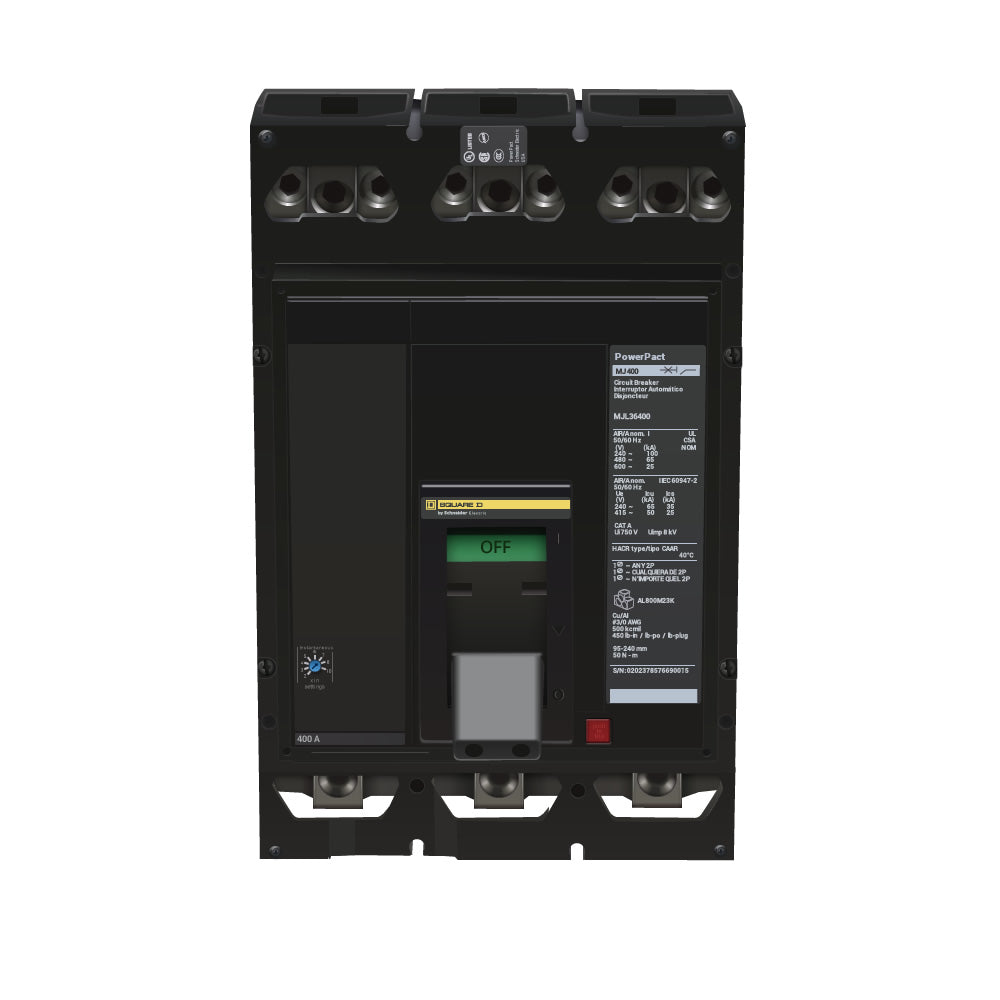

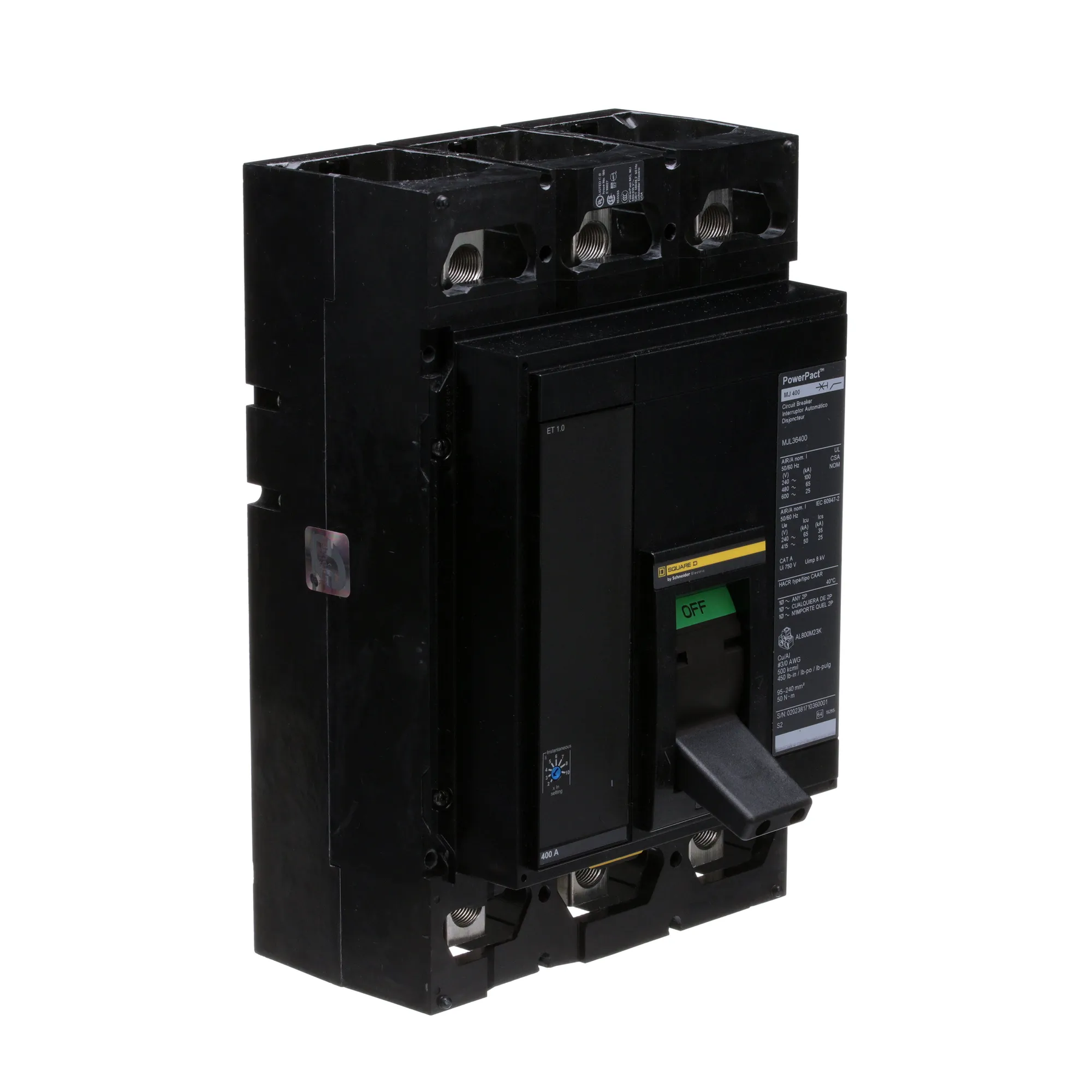

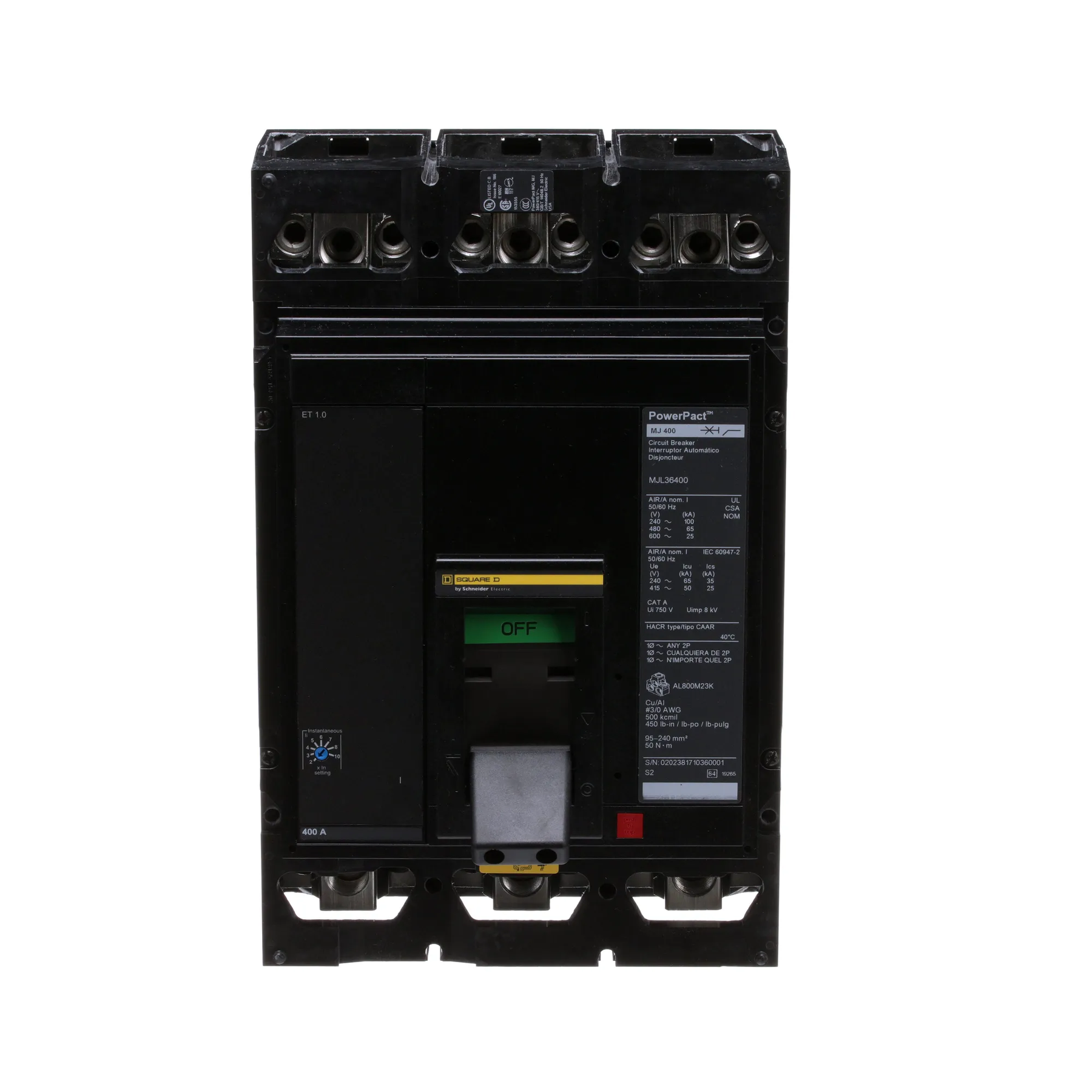

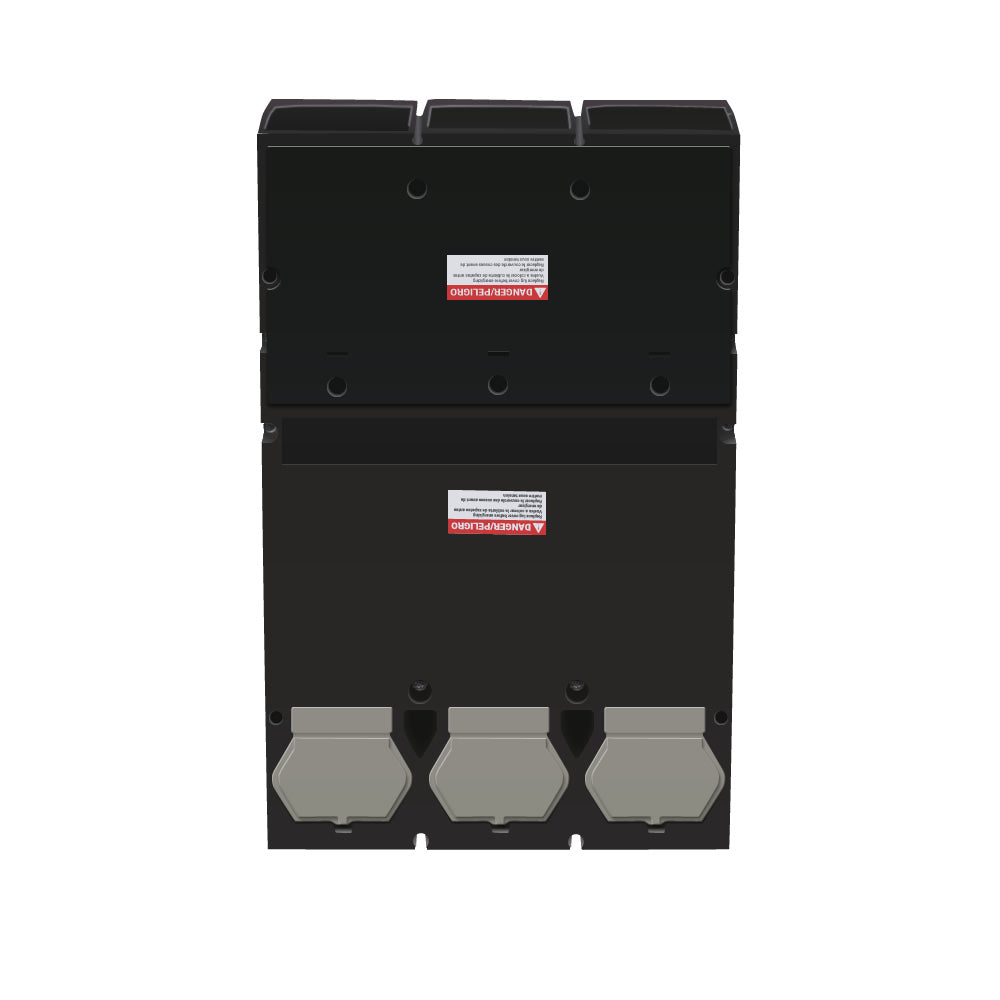

Square D MJL36400 Molded Case Circuit Breaker – 400A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact MJL Series

The Square D MJL36400 is a 400A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type MJL Series. It features solid-state electronic protection with a basic non-interchangeable 1.0 trip and LI (Long-Time and Instantaneous) trip functions.

The MJL36400 is rated for 600V and provides a 65kA interrupting rating at 480V with a current-limiting design. It features a feed-thru configuration with line- and load-side lug terminals and is supplied as a complete circuit breaker. The breaker is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: MJL
• Type: MJL
• Catalog No.: MJL36400
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Current Limiting
• Protection Type: Solid-State Electronic
• Trip Unit: Basic Non-Interchangeable 1.0 Trip
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line- and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MJL36400
• Catalog Number: MJL36400
• Model: MJL36400
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: MJL
• Type: MJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 400A
• Trip Unit: Basic Non-Interchangeable 1.0
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC:785901701828

Compatibility:

Designed for use with compatible Square D PowerPact MJL Series electrical distribution equipment that accepts MJL Series molded case circuit breakers. The MJL36400 provides 400A solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features a current-limiting design, feed-thru configuration, and line- and load-side lug terminals.

Certifications:

• UL Listed
