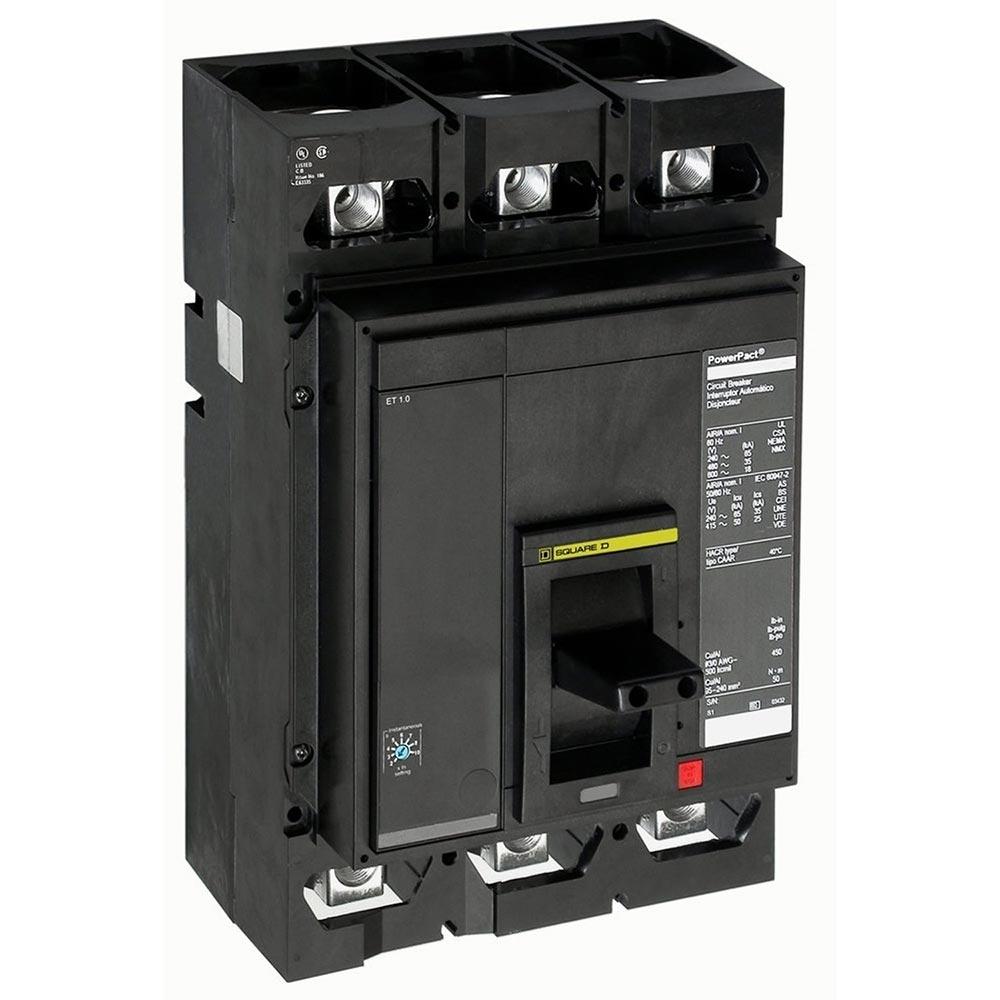

MJL36700 - Square D -Square D MJL36700 700 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – PowerPact Series Molded Case Circuit Breaker

The Square D MJL36700 is a 700 Amp, 3-pole molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type MJL. It is rated for 600 V with a 65 kA interrupting rating at 480 V and features current-limiting performance. The breaker uses solid-state electronic protection with a basic non-interchangeable 1.0 trip and LI (Long-Time and Instantaneous) trip functions. It is designed for feed-thru mounting and includes line and load-side lug terminals.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: MJL
• Catalog Number / MPN: MJL36700
• Primary Rating: 700 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: Current Limiting
• Trip Type: Solid-State Electronic
• Trip Unit: Basic, Non-Interchangeable, 1.0
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: MJL36700
• Series: PowerPact
• Type: MJL
• Current Rating: 700 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Basic, Non-Interchangeable, 1.0
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 785901879961

Compatibility

The Square D MJL36700 is designed for compatible Schneider Electric / Square D PowerPact Type MJL electrical distribution applications.

Certifications

• UL Listed
