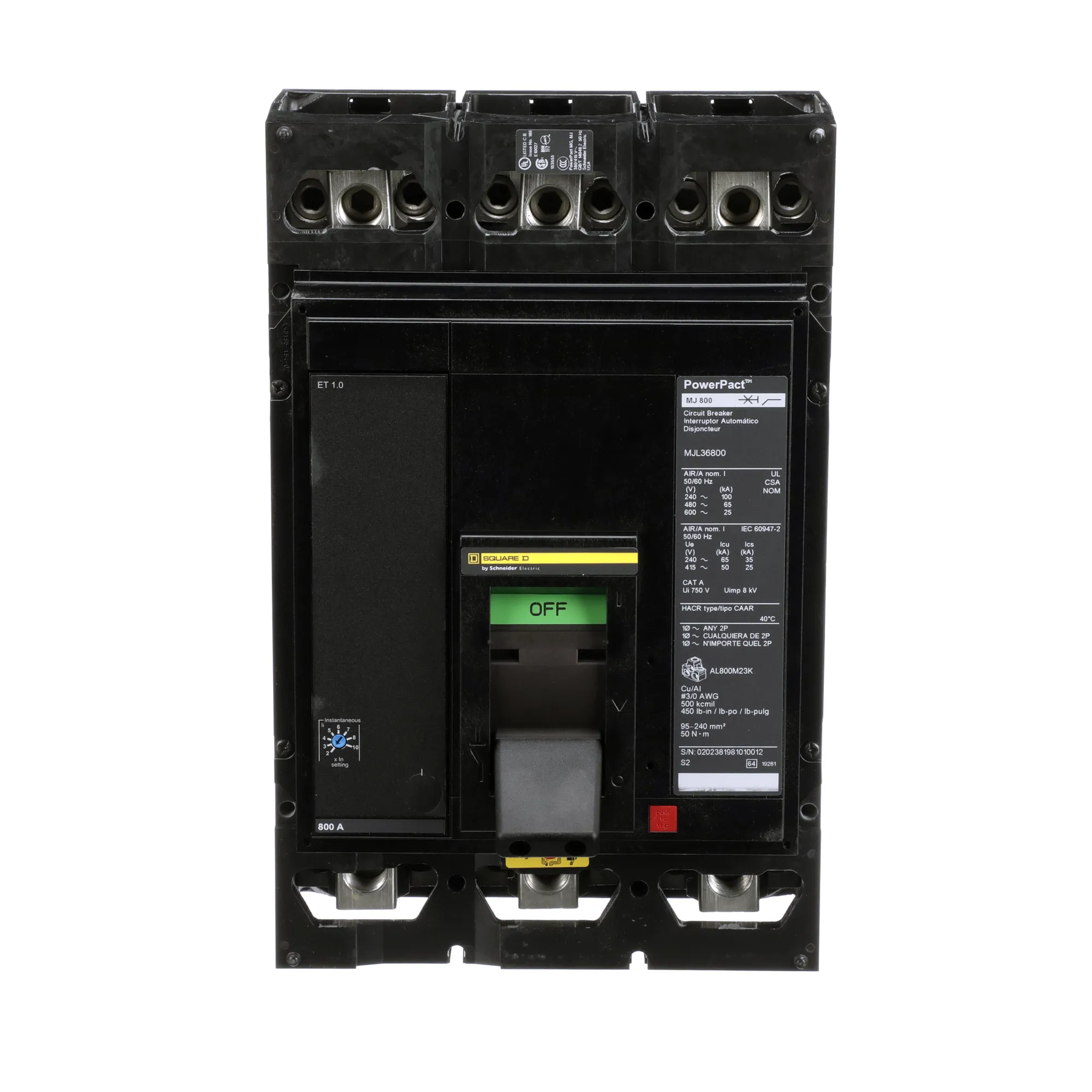

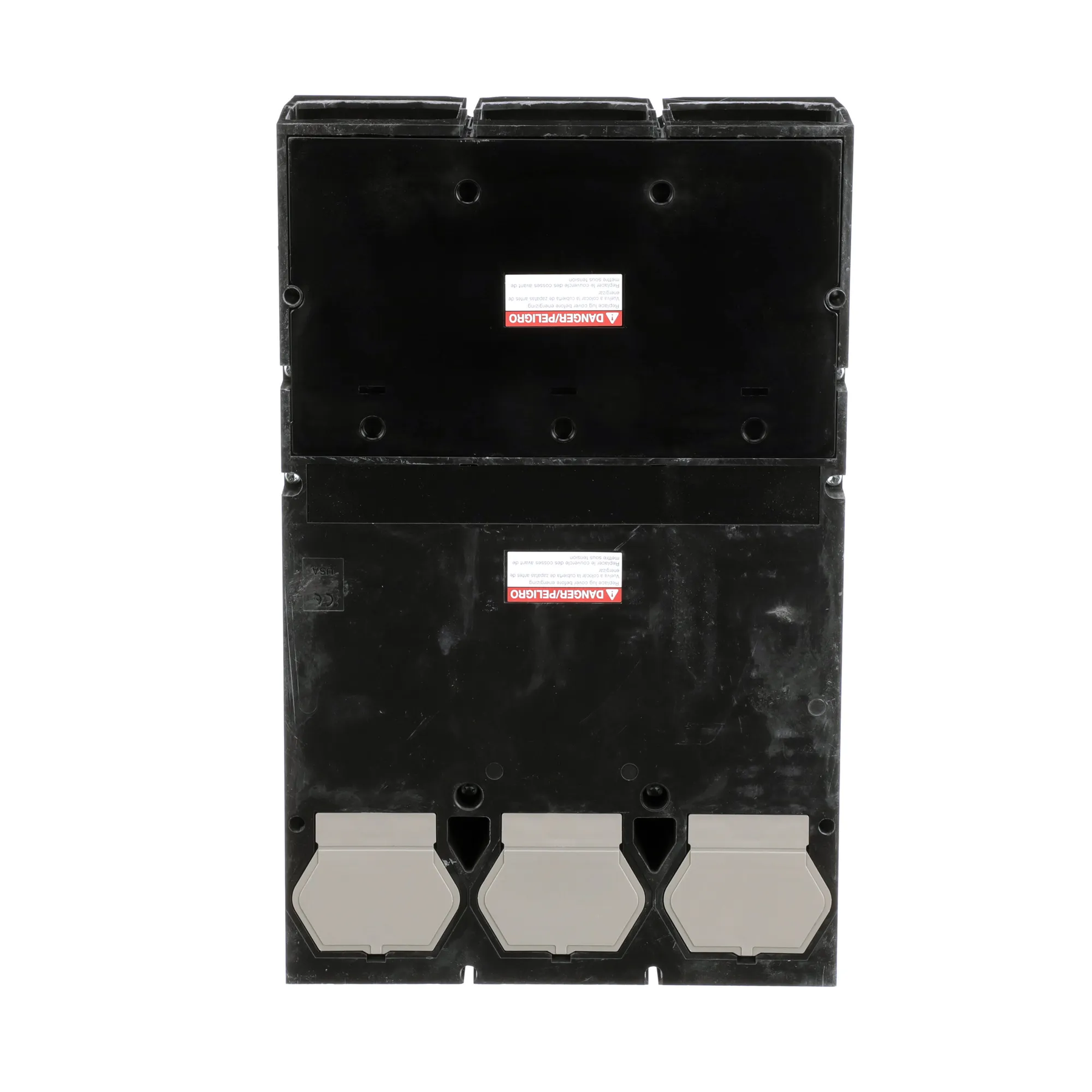

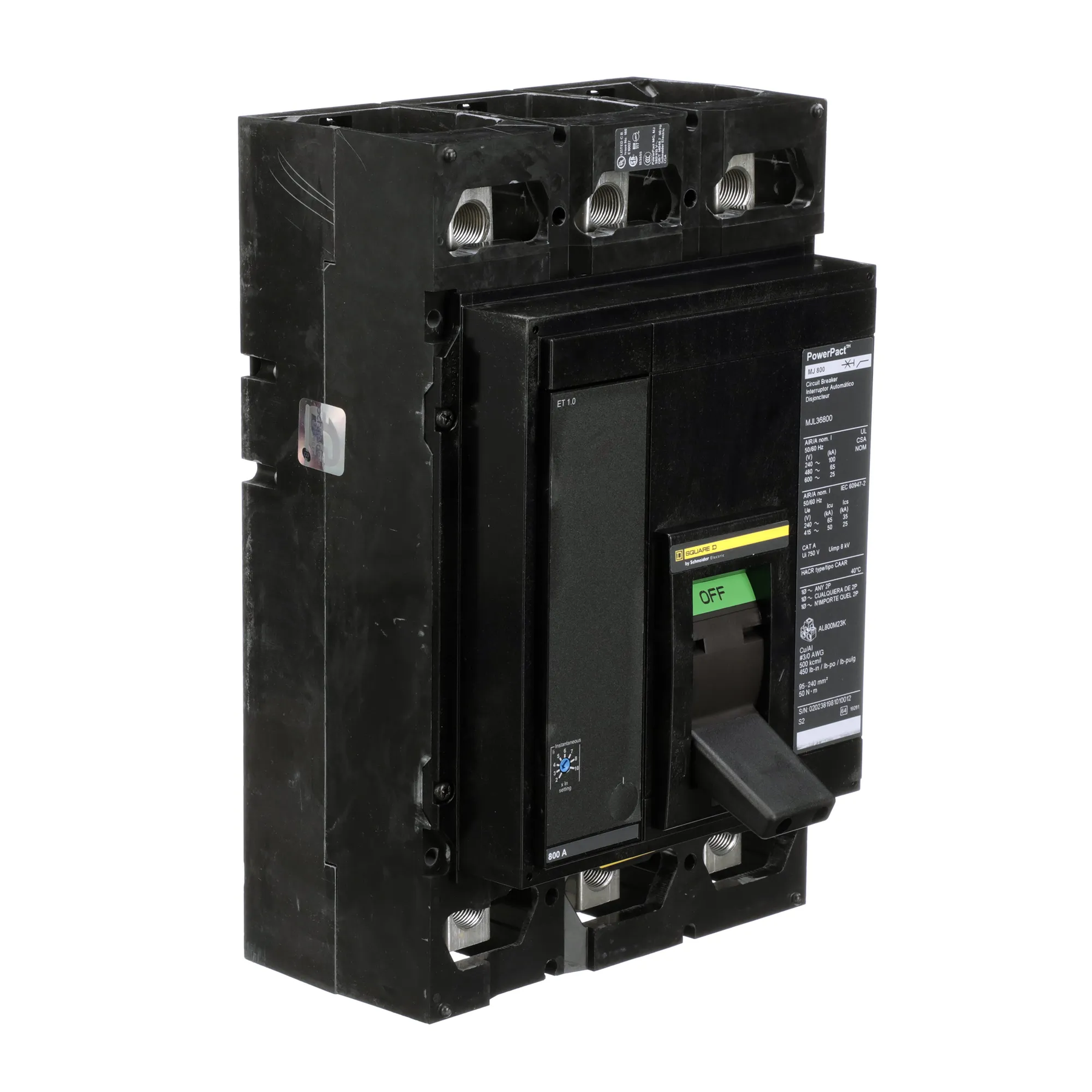

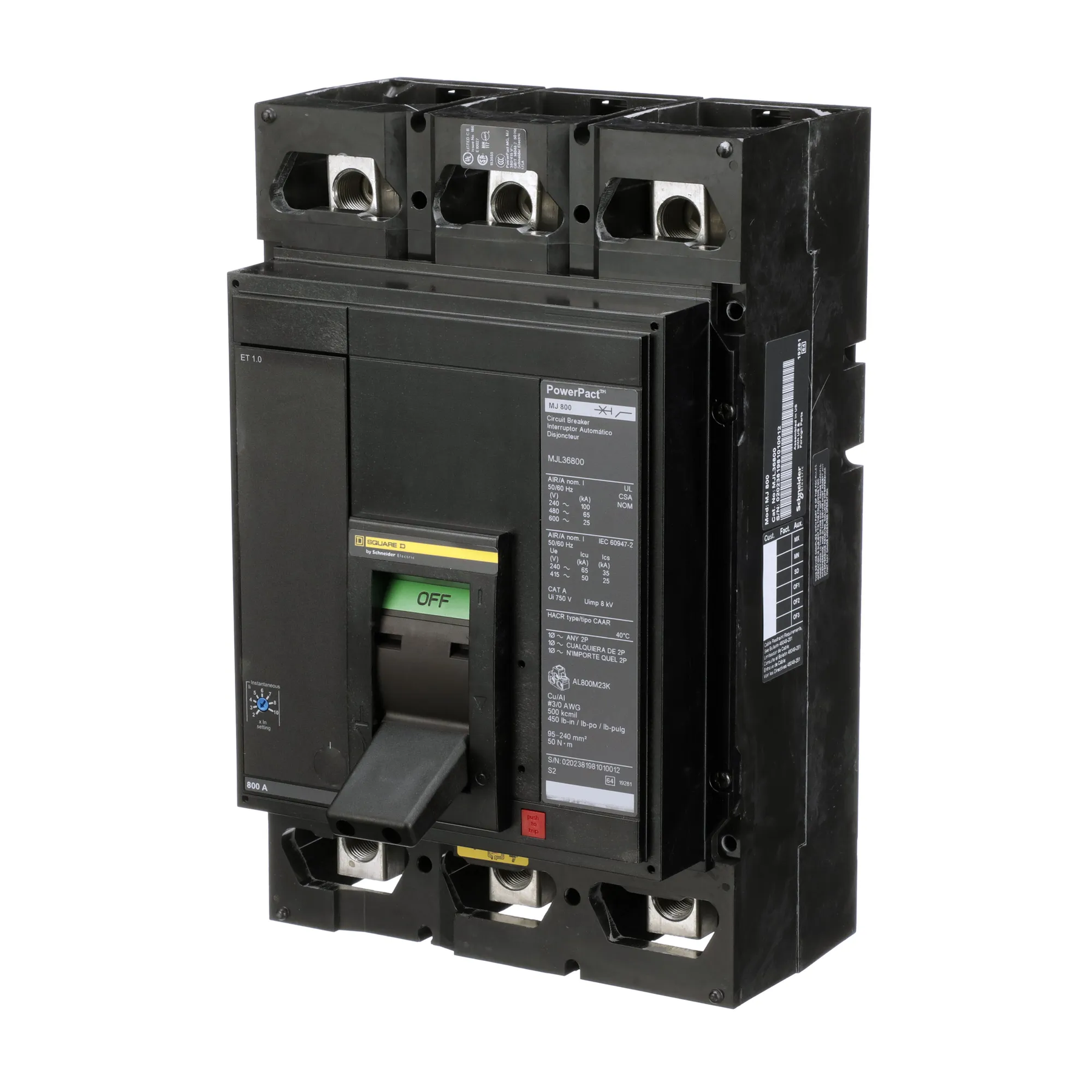

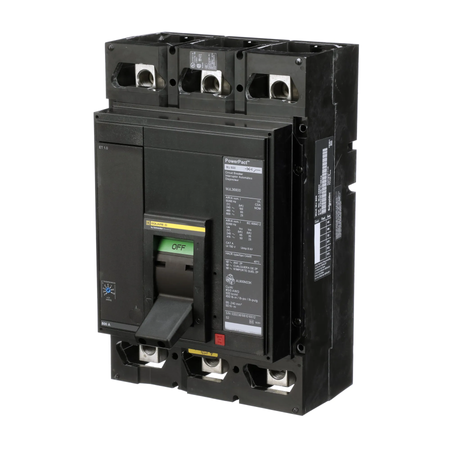

Square D MJL36800 Molded Case Circuit Breaker – 800A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact MJL Series

The Square D MJL36800 is an 800A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type MJL Series. It features solid-state electronic protection with a Basic 1.0 trip unit and Long-Time and Instantaneous (LI) trip functions.

The MJL36800 is rated for 600V and provides a 65kA interrupting rating at 480V with current-limiting construction. It features a feed-thru configuration, is supplied as a complete breaker, and includes line-side and load-side lug terminals. The breaker has a non-interchangeable Basic 1.0 trip unit.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: MJL
• Type: MJL
• Catalog No.: MJL36800
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Protection Type: Solid-State Electronic
• Trip Unit: Basic 1.0
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Current Limiting: Current Limiting
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MJL36800
• Catalog Number: MJL36800
• Model: MJL36800
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: MJL
• Type: MJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 800A
• Trip Unit: Basic 1.0
• Trip Configuration: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC:785901655398

Compatibility:

Designed for use with compatible Square D PowerPact MJL Series electrical distribution equipment that accepts MJL Series molded case circuit breakers. The MJL36800 provides 800A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, a Basic 1.0 non-interchangeable trip unit, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker configuration, system voltage, available fault current, pole requirements, trip-unit compatibility, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact MJL Series
• 800A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• Current Limiting
• Solid-State Electronic Protection
• Basic 1.0 Trip Unit
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Complete Breaker
• Line-Side and Load-Side Lug Terminals
