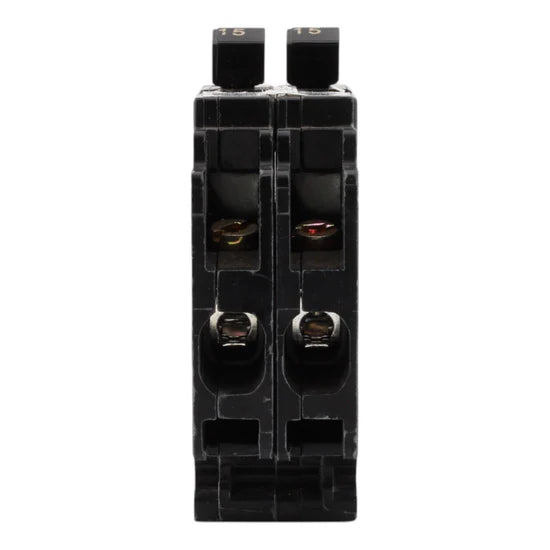

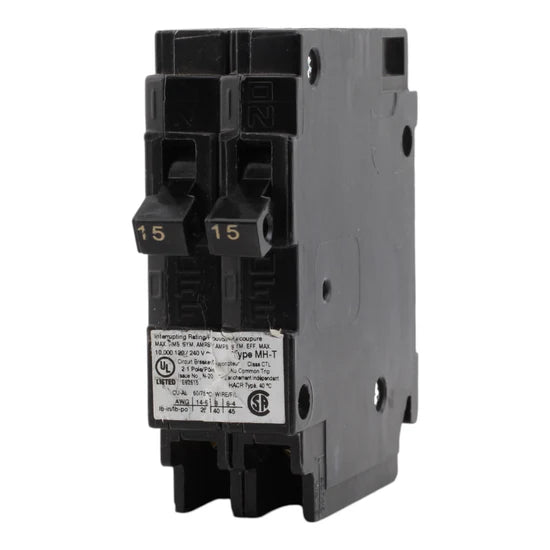

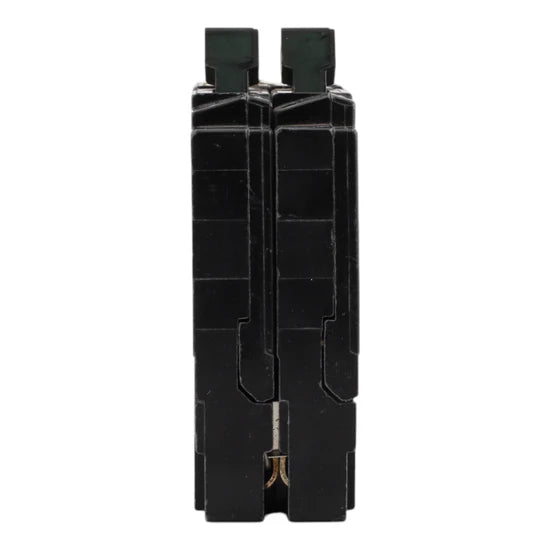

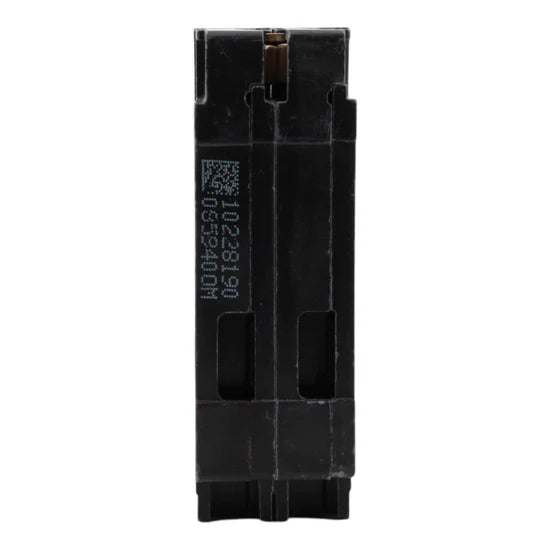

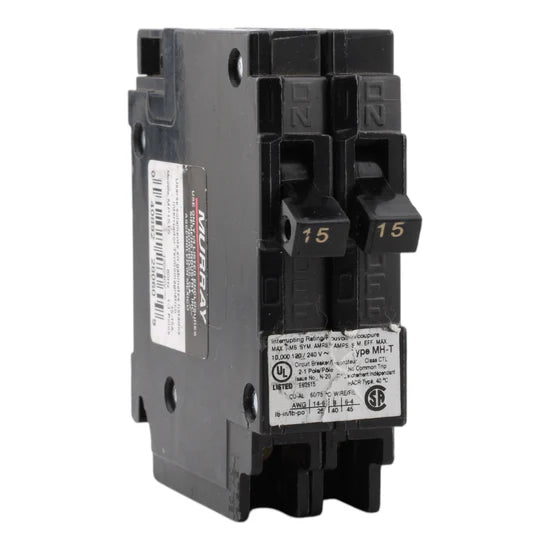

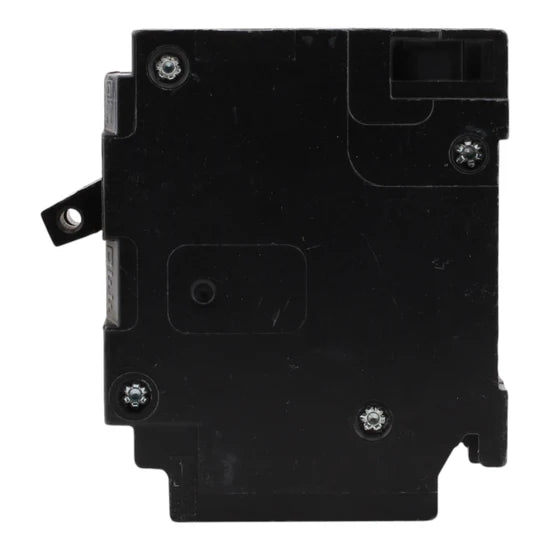

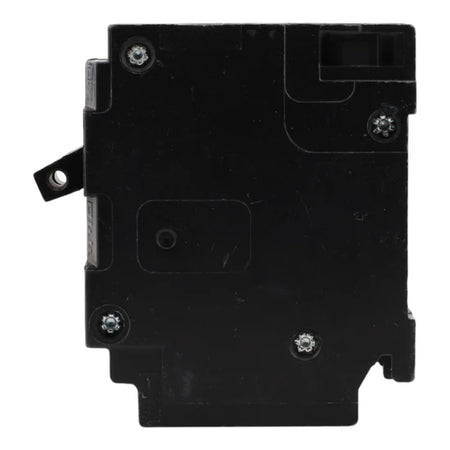

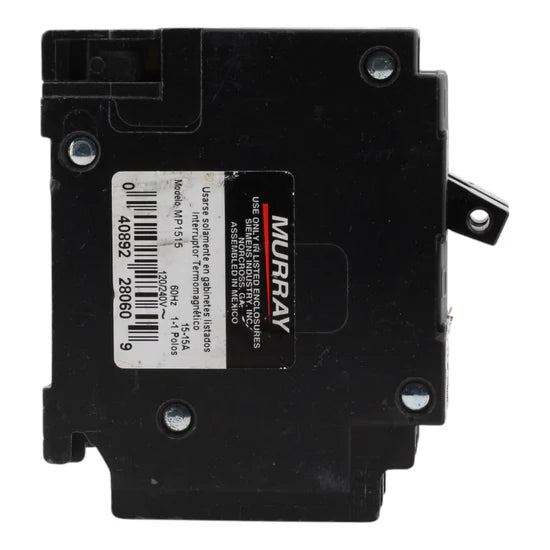

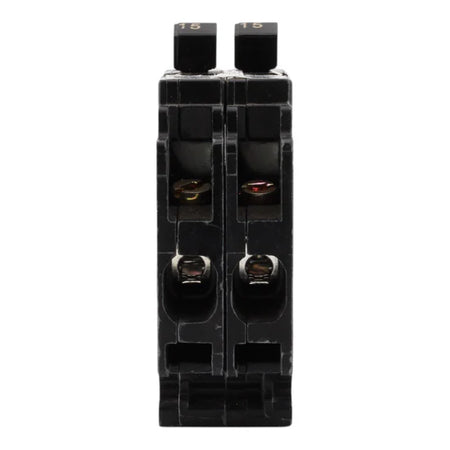

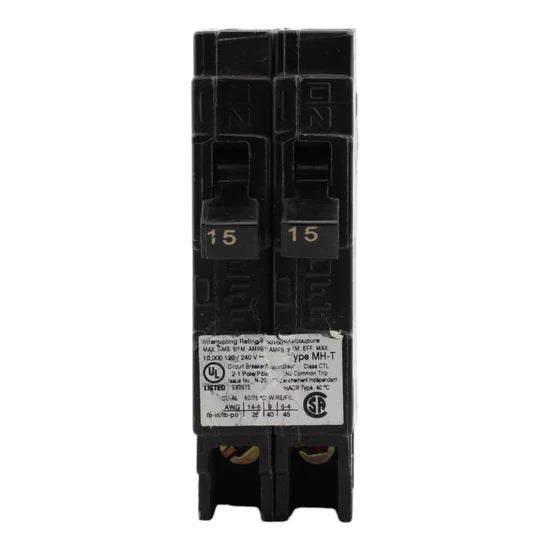

The Murray MP1515 duplex circuit breaker features two 15 Amp single-pole circuits in a compact 1/2 inch width-per-pole design, providing reliable thermal-magnetic protection for residential and light commercial electrical systems. Rated for SWD (Switching Duty) and HACR applications, it ensures dependable overload and short-circuit protection. UL listed and CSA certified, this breaker is ideal for electricians, contractors, and homeowners needing a space-saving duplex solution for 120V circuits.
Voltage and Rating
- Current Rating: 15A per 1-Pole circuit (Duplex: 2 circuits)
- Voltage Rating: 120 Volts AC
- Interrupting Capacity: 10 kA
- Operating Temperature: 40°C
Key Specifications
- Breaker Type: MH-T Duplex Miniature Thermal-Magnetic Circuit Breaker
- Configuration: Duplex (2 separate 1-Pole breakers in 1 unit)
- Number of Poles: 2-Pole
- Width Per Pole: 1/2 inch
- Application Rating: SWD, HACR rated
Technical Specifications
- Wire Compatibility: Copper 14–8 AWG, Aluminum 12–8 AWG
- Operating Mechanism: Thermal-magnetic
- Special Features: Compact 1/2 inch width-per-pole design
- Certifications: UL Listed, CSA Certified
Product Data
- Manufacturer: Murray
- Brand: Murray
- Model Number: MP1515
- UPC: 040892280609
-
Dimensions:
- Height: 3 in
- Width: 1 in
- Depth: 3 in
- Weight: 0.397 lb
