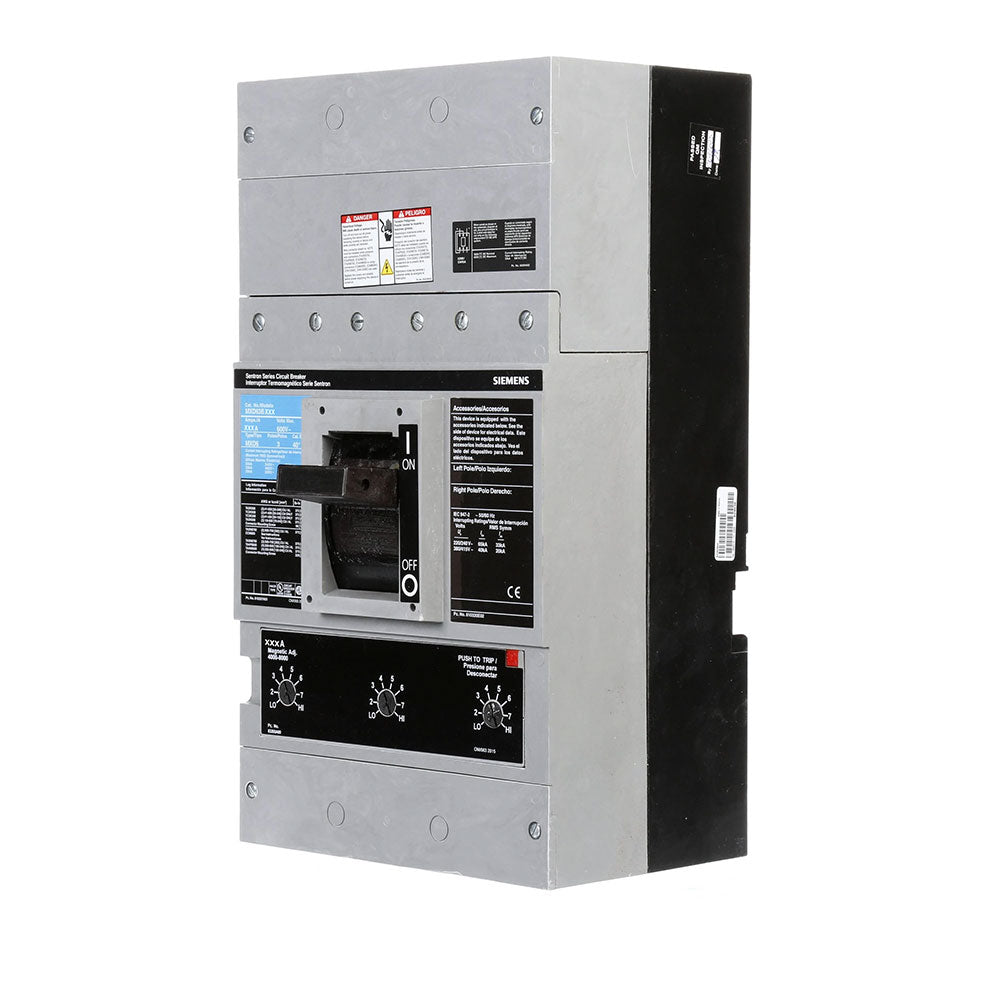

Siemens Sentron MXD63B800HL 800 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 50 kA @ 480V – MXD Frame
Select product condition:
Couldn't load pickup availability
Ask an expert
The Siemens Sentron MXD63B800HL is an 800A, three-pole molded case circuit breaker designed for industrial and commercial power distribution systems. It features a thermal-magnetic trip unit with non-interchangeable trip configuration and a 100%-rated design for applications requiring continuous operation at its full rated current under specified installation conditions.
Specifications
- Brand: Siemens
- Series: Sentron
- Type: MXD
- Catalog Number / MPN: MXD63B800HL
- Rated Current: 800A
- Poles: 3 Pole
- Phase: 3 Phase
- Rated Voltage: 600V
- Interrupting Capacity: 50 kA @ 480V
- Interrupting Class: Standard
- Trip Unit: Thermal-Magnetic
- Trip Configuration: Non-interchangeable
- Current Rating: 100% Rated
- Mounting: Bolt-on
- Temperature Rating: 40°C
Part Numbers & Identification
- Manufacturer: Siemens
- Product Family: Sentron
- Catalog Number: MXD63B800HL
- Frame: MXD
- Product Type: Molded Case Circuit Breaker (MCCB)
- UPC:783643304123
Compatibility
Suitable for Siemens Sentron MXD-frame applications requiring an 800A, three-pole, 100%-rated MCCB with thermal-magnetic overload and short-circuit protection, bolt-on mounting, and a 50 kA interrupting capacity at 480V.
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
- Electrical Rating Bolt On - 800 Amp - 3 Pole - 600 Volt
