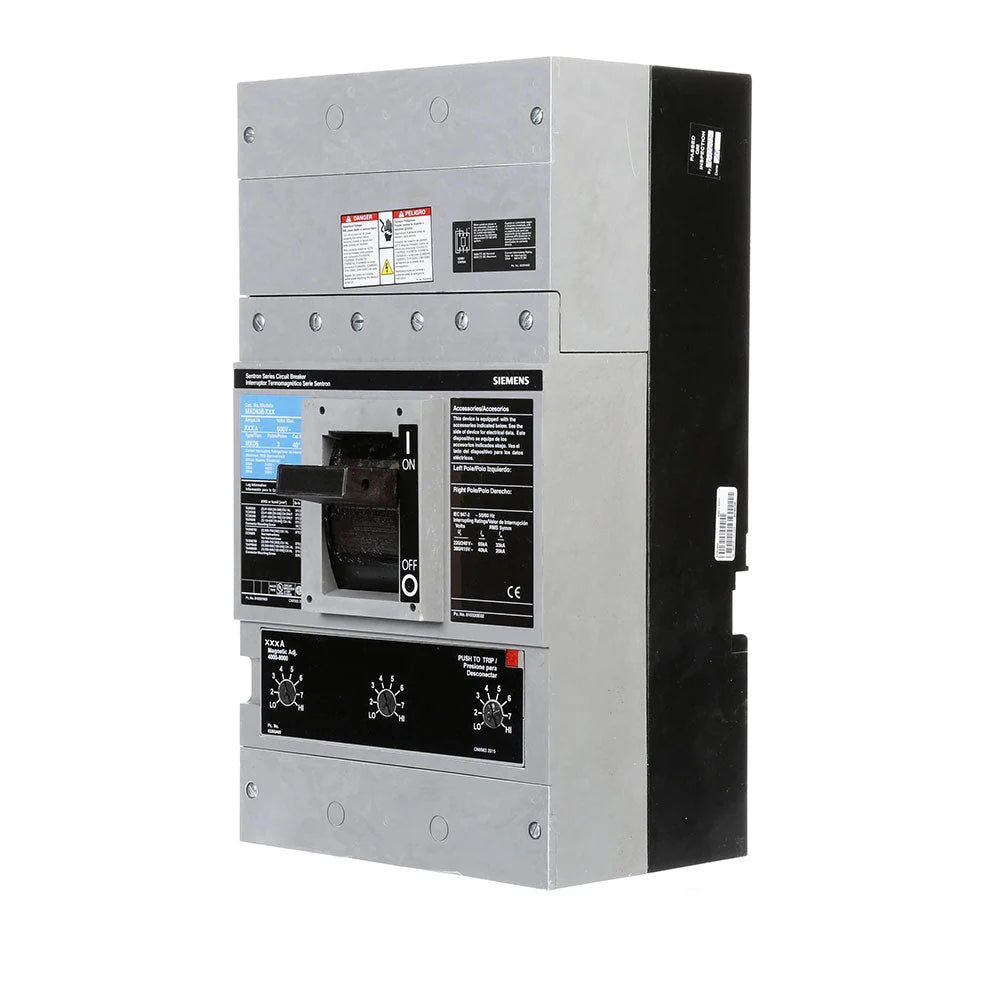

Siemens MXD63L800 800 Amp Motor Circuit Protector – 3 Pole – 600 V – 50 kA@480 V – Bolt-On – SENTRON Series

The Siemens MXD63L800 is an 800 Amp, 3-pole, 3-phase motor circuit protector (MCP) from the Siemens SENTRON Series, Type MXD. It is rated for 600 V with a standard interrupting capacity of 50 kA at 480 V. The device provides magnetic-only instantaneous protection with a low instantaneous range and a magnetic range of 3000–6000 A. Lugs are not included.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Motor Circuit Protector (MCP)
• Series: SENTRON
• Type: MXD
• Catalog Number / MPN: MXD63L800
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 50 kA @ 480 V
• Interrupting Capacity: Standard
• Protection Type: Magnetic Only
• Trip Function: I – Instantaneous Only
• Instantaneous Range: Low
• Magnetic Range: 3000–6000 A
• Connection / Mounting: Bolt-On
• Terminals: Lugs Not Included

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: MXD63L800
• Series: SENTRON
• Type: MXD
• Current Rating: 800 A
• Pole Count: 3 Pole
• Product Type: Motor Circuit Protector (MCP)
• Protection: Magnetic Only
• Trip Function: I – Instantaneous Only
• Magnetic Range: 3000–6000 A
• Terminals: Lugs Not Included
• UPC: 783643215245

Compatibility

The Siemens MXD63L800 is designed for compatible Siemens SENTRON Type MXD motor circuit protector applications. Verify the specific motor control equipment, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
