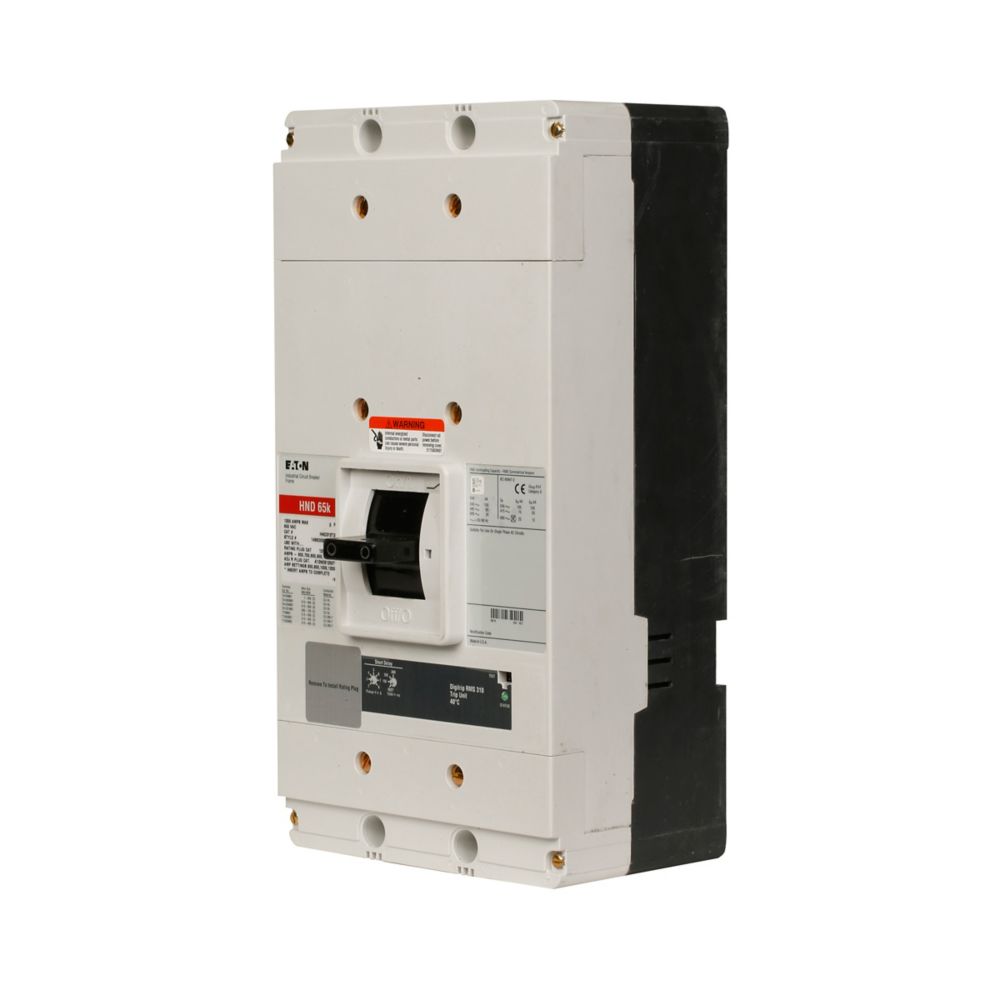

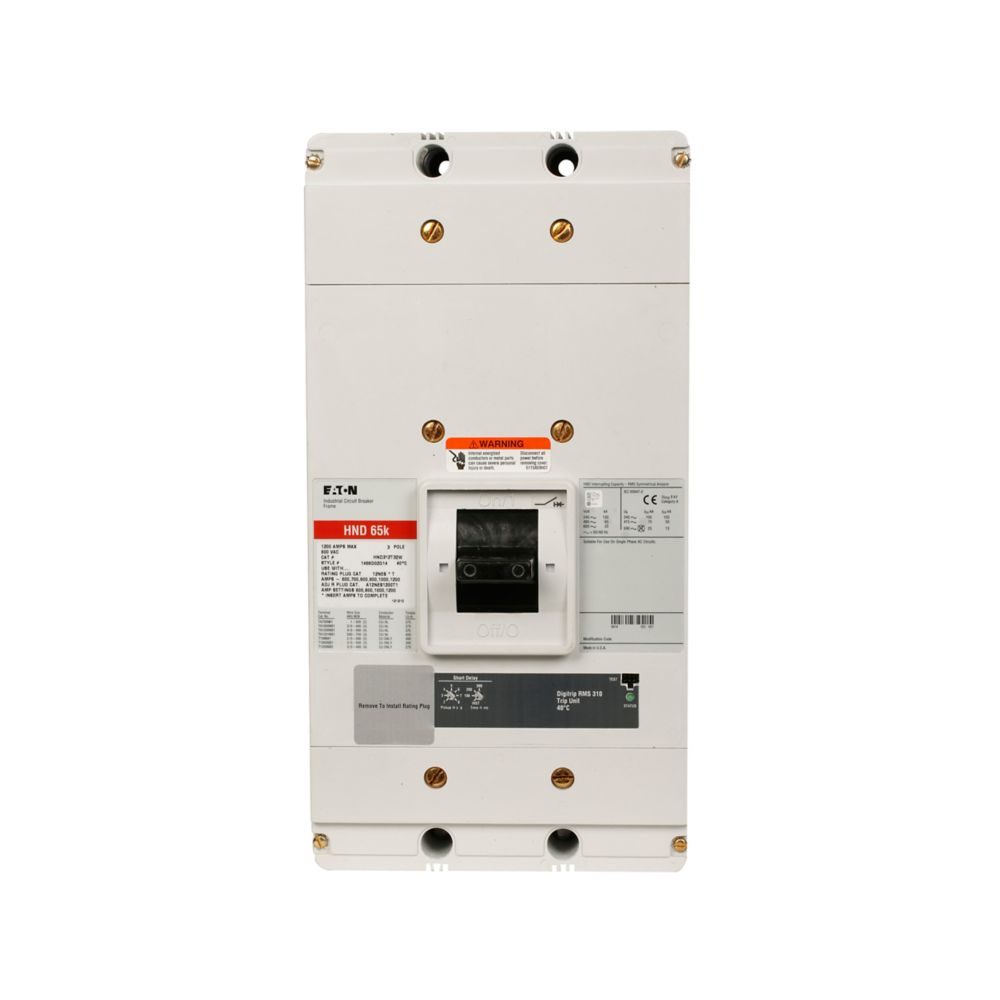

Eaton ND312T36W 1200 Amp Electronic Molded Case Circuit Breaker – 3 Pole – 600 Vac – 85 kAIC at 240 Vac / 50 kAIC at 480 Vac – Without Terminals – Series G

The Eaton ND312T36W is a 1200 Amp electronic molded case circuit breaker from the Eaton Cutler-Hammer Series G. Designed for demanding electrical distribution applications, this NG-frame circuit breaker features a Digitrip 310 RMS electronic trip unit with LSIG (Long-Time, Short-Time, Instantaneous, and Ground-Fault) protection. It has a three-pole configuration, a 600 Vac voltage rating, and interrupting capacities of 85 kAIC at 240 Vac and 50 kAIC at 480 Vac. The breaker is 80% rated, operates at 50–60 Hz.

Specifications

• Manufacturer: Eaton
• Brand: Eaton Cutler-Hammer
• Product Type: Electronic Molded Case Circuit Breaker
• Series: Series G
• Frame Type: NG Frame
• Circuit Breaker Type: ND
• Catalog Number / MPN: ND312T36W
• Primary Rating: 1200 Amp
• Poles / Configuration: 3 Pole
• Voltage Rating: 600 Vac
• Interrupting Rating at 240 Vac: 85 kAIC
• Interrupting Rating at 480 Vac: 50 kAIC
• Trip Unit: Digitrip 310 RMS
• Trip Type: Electronic LSIG (Long-Time, Short-Time, Instantaneous, Ground-Fault)
• Frequency: 50–60 Hz
• Terminal Configuration: Without Terminals
• Rating: 80% Rated
• Compliance: HACR Rated
• Application: Electrical distribution and overcurrent protection

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton Cutler-Hammer
• Catalog Number: ND312T36W
• Series: Series G
• Frame: NG Frame
• Circuit Breaker Type: ND
• Current Rating: 1200 A
• Pole Count: 3 Pole
• Trip Unit Identification: Digitrip 310 RMS
• Trip Protection: Electronic LSIG
• Terminal Configuration: Without Terminals
• UPC: 786679252703
• Product Type: Electronic Molded Case Circuit Breaker

Compatibility

The Eaton ND312T36W is intended for compatible electrical distribution systems and switchgear assemblies designed to accommodate Eaton Series G NG-frame molded case circuit breakers.

Certifications

• UL Listed
