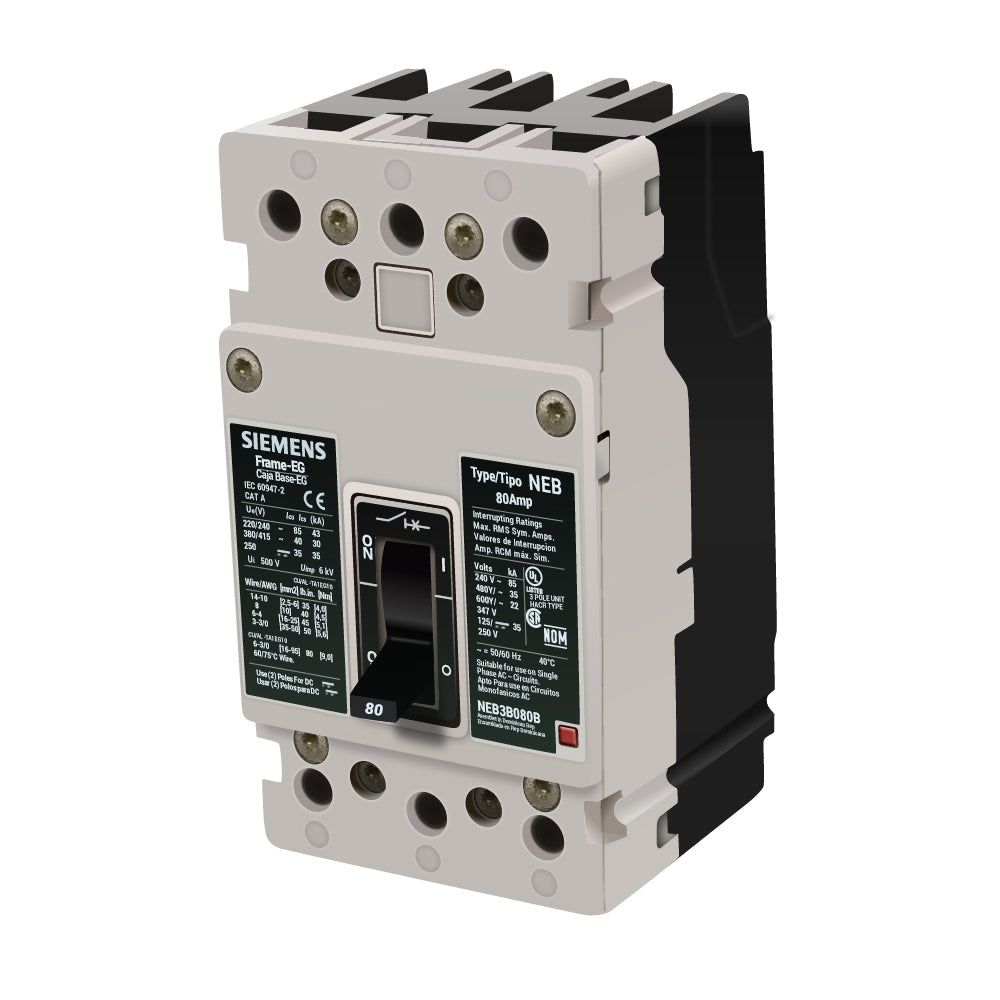

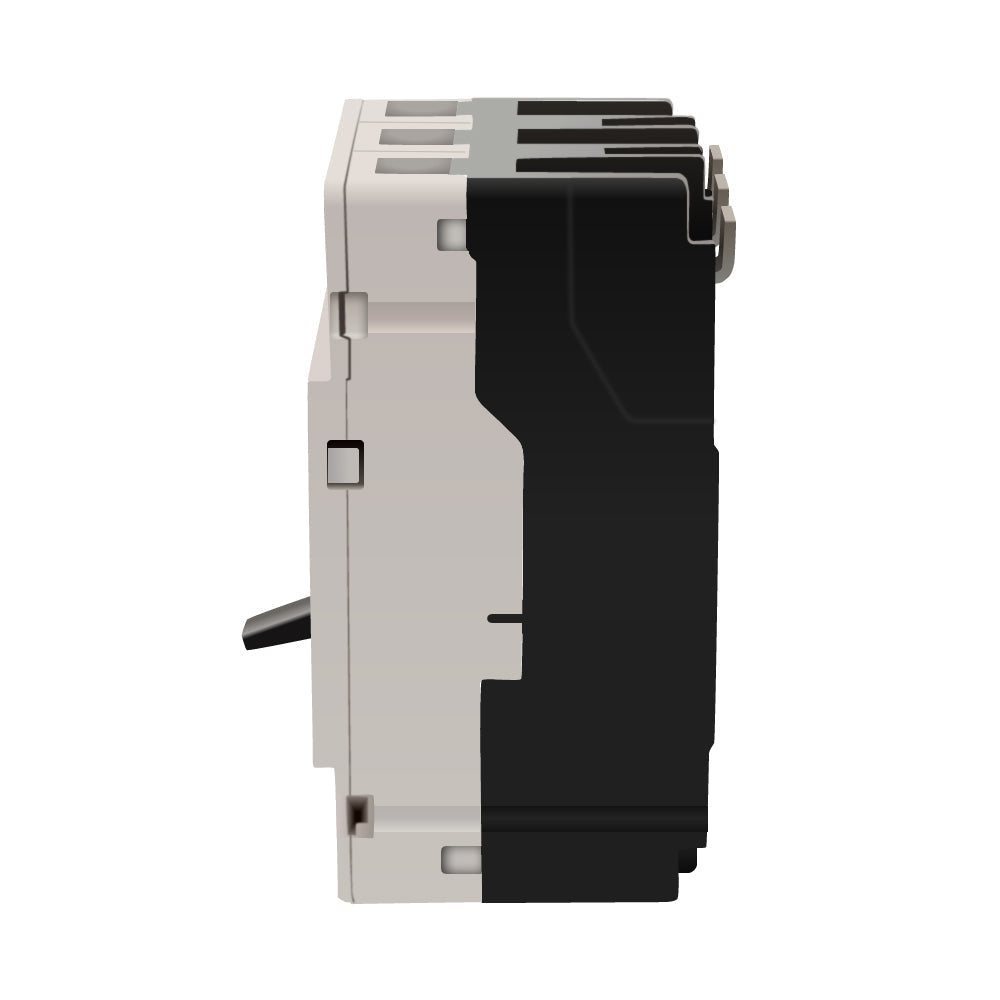

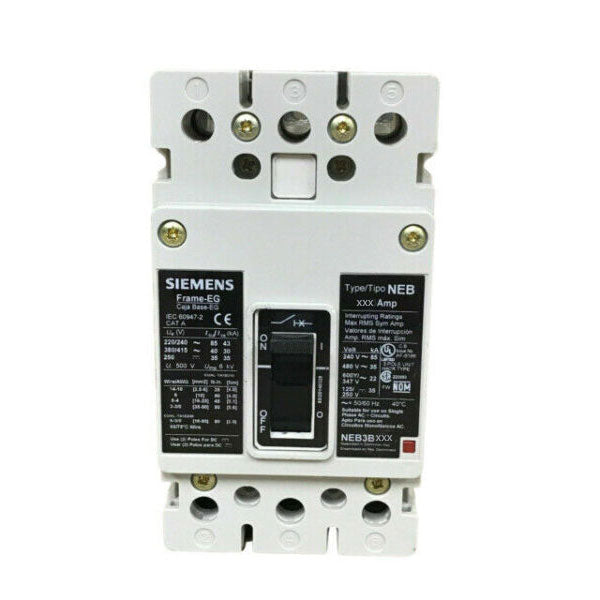

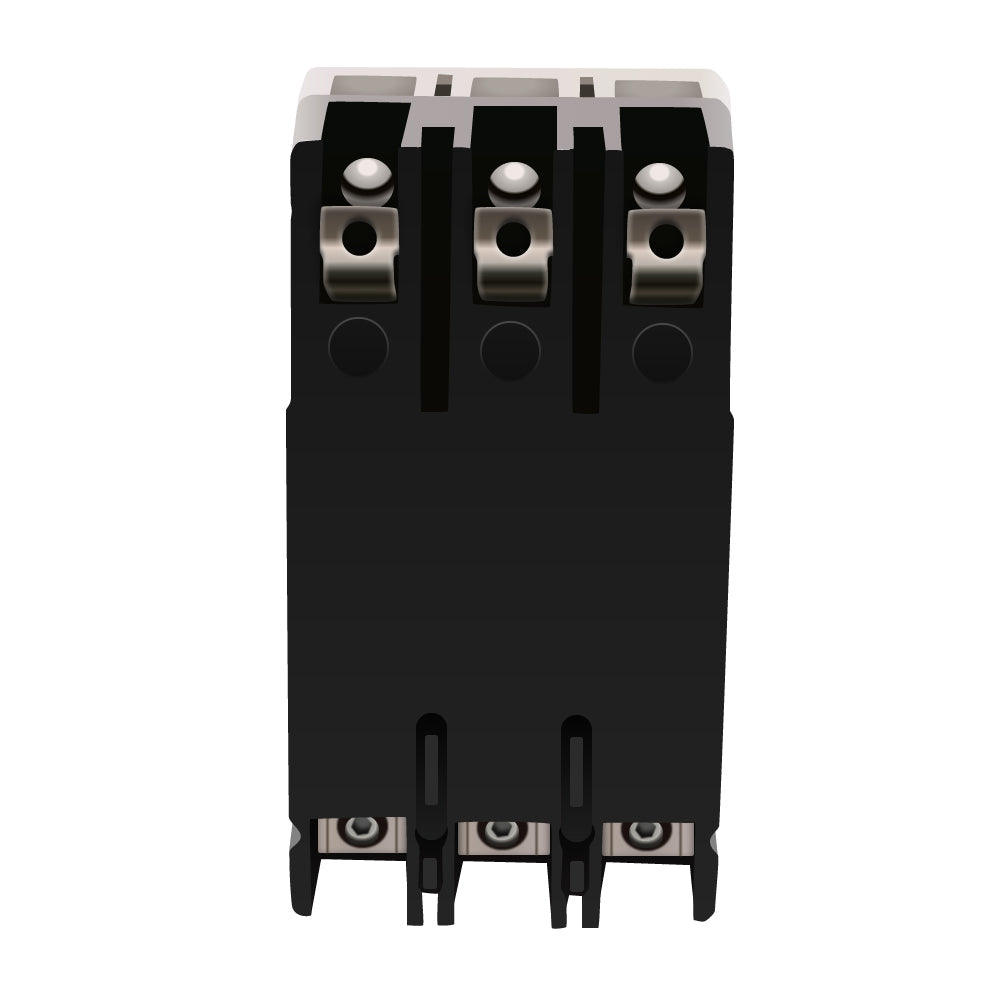

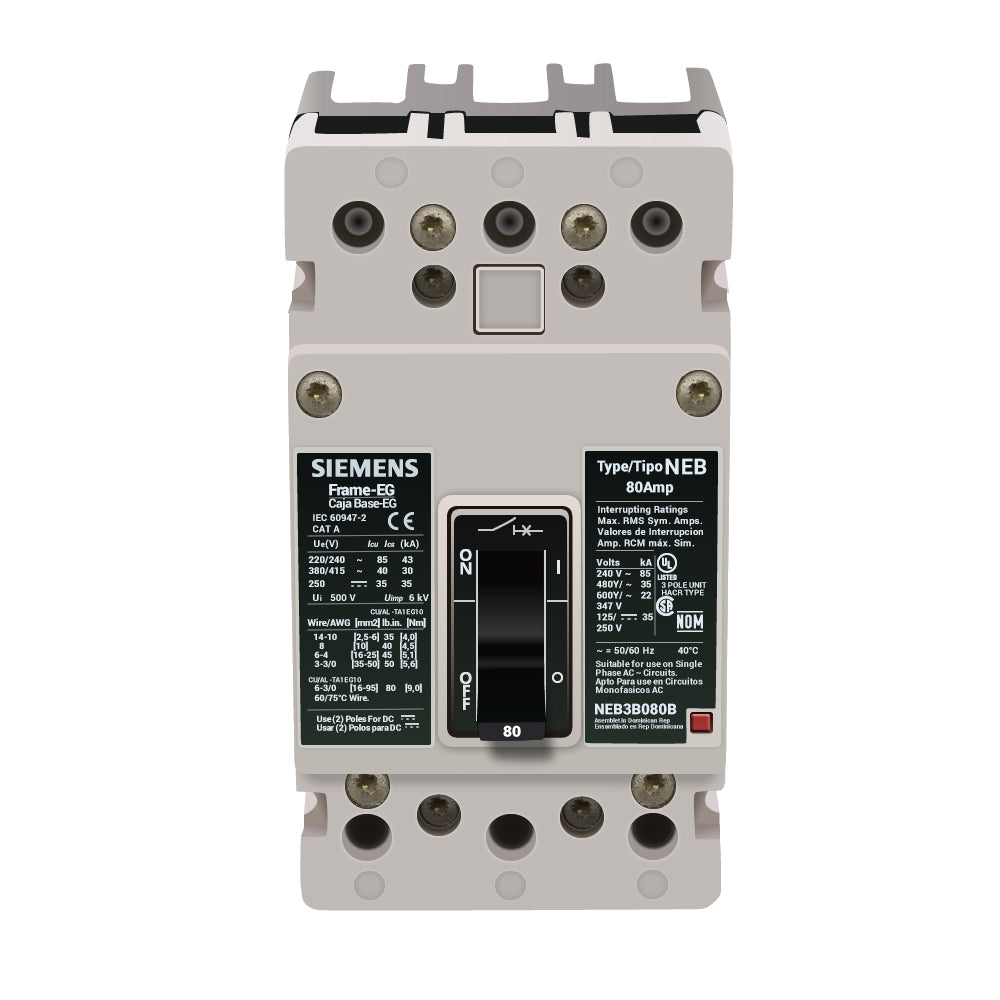

Siemens NEB3B080B Molded Case Circuit Breaker – 80A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – NEB Series

The Siemens NEB3B080B is an 80A, 3-pole, 3-phase molded case circuit breaker from the Siemens NEB Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The breaker is rated for 600V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It features a bolt-on mounting configuration and is supplied complete with load-side lug terminals. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: NEB Series
• Series: NEB
• Type: NEB
• Catalog No.: NEB3B080B
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NEB3B080B
• Catalog Number: NEB3B080B
• Model: NEB3B080B
• Product Family: Siemens NEB Circuit Breakers
• Series: NEB
• Type: NEB
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 80A
• UPC:783643558601

Compatibility:

Designed for use with compatible Siemens NEB Series electrical distribution equipment that accepts NEB Series bolt-on molded case circuit breakers. The NEB3B080B provides 80A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker uses a bolt-on connection and is supplied complete with load-side lug terminals.

Certifications:

• Siemens NEB Series
• 80A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Rated
