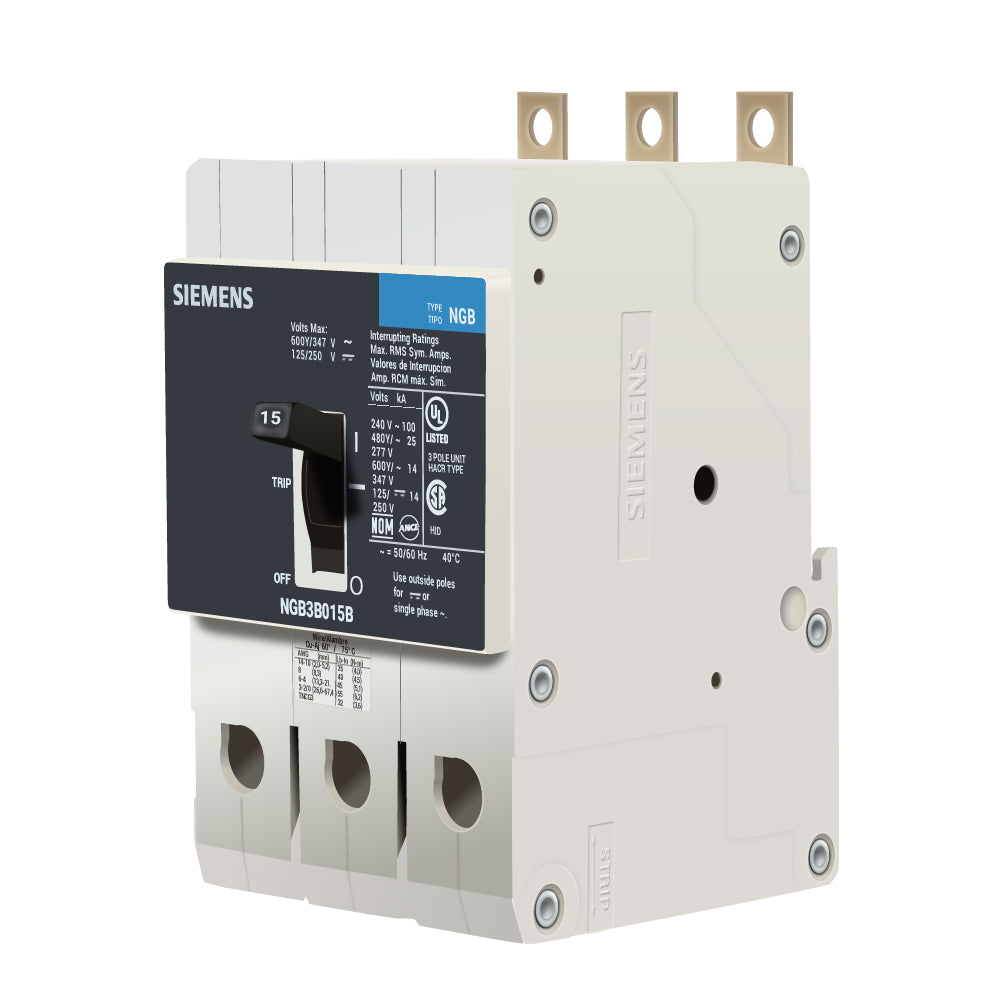

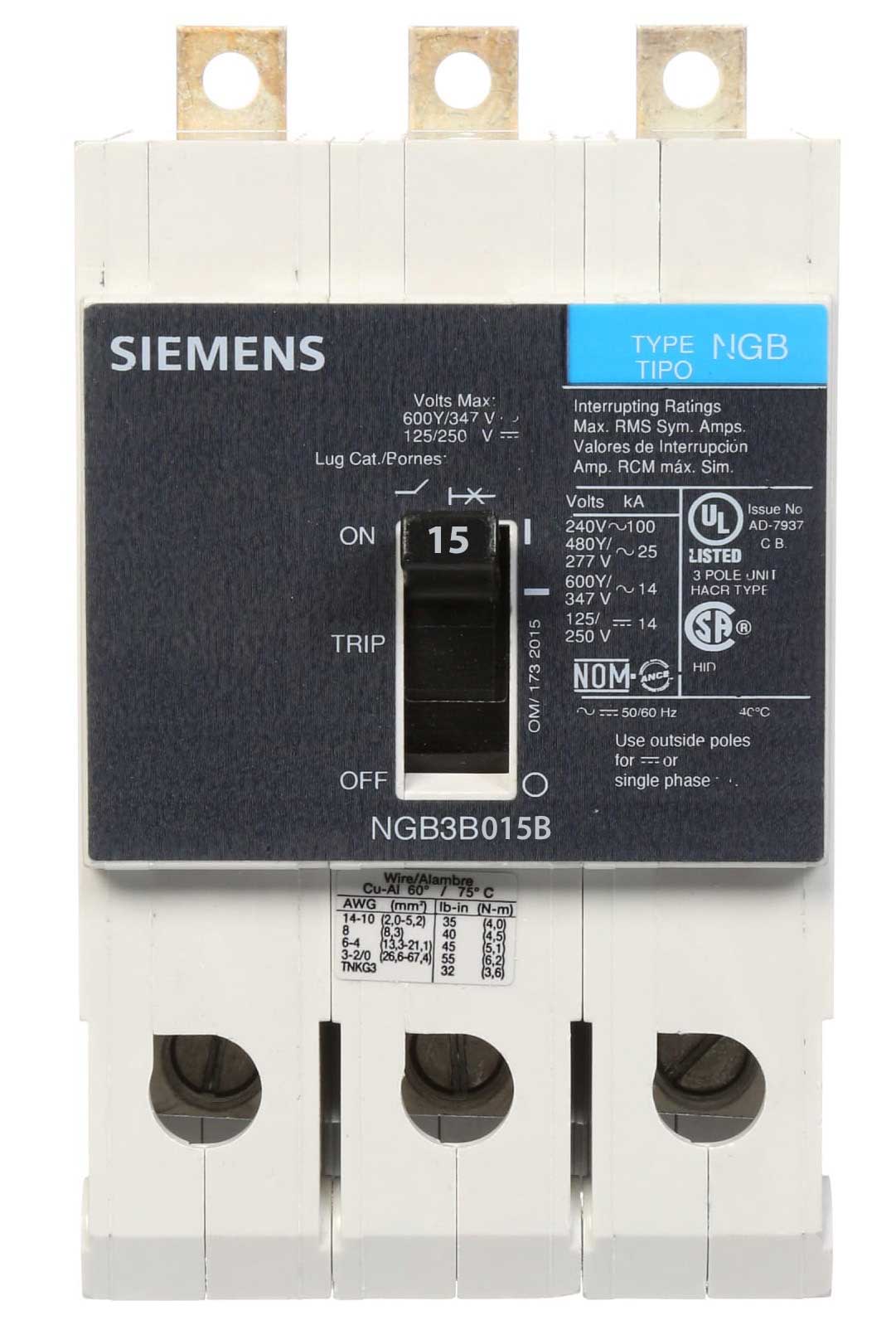

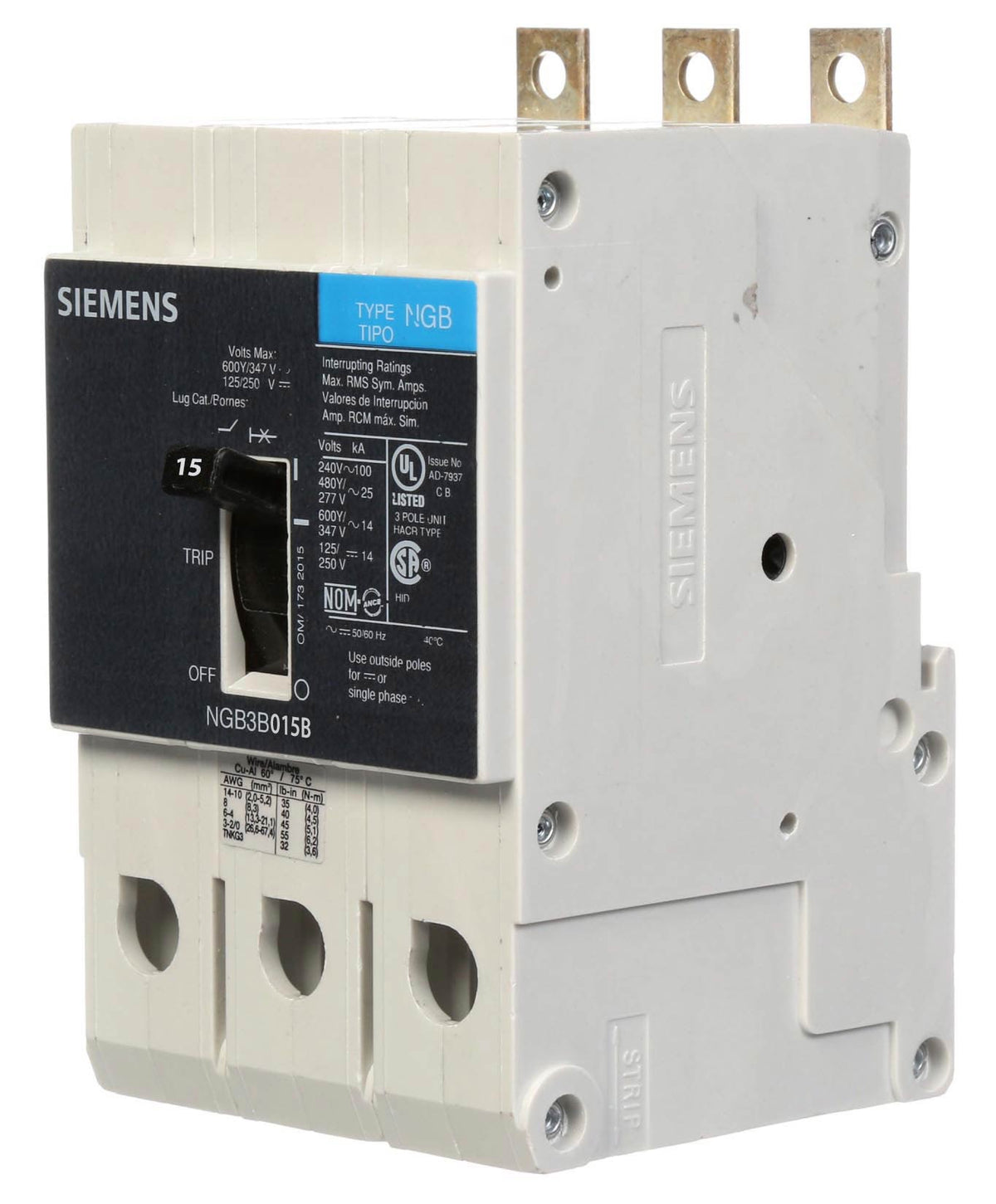

Siemens NGB3B015B Molded Case Circuit Breaker – 15A – 3-Pole – 600V – 25kA @ 480V – Bolt-On – VL Series NGB

The Siemens NGB3B015B is a 15A, 3-pole, 3-phase molded case circuit breaker from the Siemens VL Series Type NGB. It is designed for panelboard-mounted applications and features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600V and provides a 25kA interrupting rating at 480V with a standard interrupting capacity. It uses a bolt-on connection, includes load-side lug terminals, and is suitable for reverse-feed applications.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: VL Series
• Series: VL
• Type: NGB
• Catalog No.: NGB3B015B
• Current Rating: 15A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Not specified
• Mounting Type: Panelboard Mounted
• Connection Type: Bolt-On
• Terminal Configuration: Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Feed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGB3B015B
• Catalog Number: NGB3B015B
• Product Family: Siemens VL Series Molded Case Circuit Breakers
• Series: VL
• Type: NGB
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Model: NGB3B015B
• Breaker Configuration: 3-Pole, 15A
• upc:783643414259

Compatibility:

Designed for use with compatible Siemens VL Series Type NGB electrical distribution equipment that accepts bolt-on molded case circuit breakers. The NGB3B015B provides 15A, 3-pole protection for compatible 600V, 3-phase applications and is suitable for reverse-feed applications.

The breaker features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and includes load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, reverse-feed suitability, and installation requirements before installation.

Certifications:

• VL Series Type NGB
• 15A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Panelboard Mounted
• Bolt-On Connection
• Load-Side Lug Terminals
• Suitable for Reverse-Feed Applications
