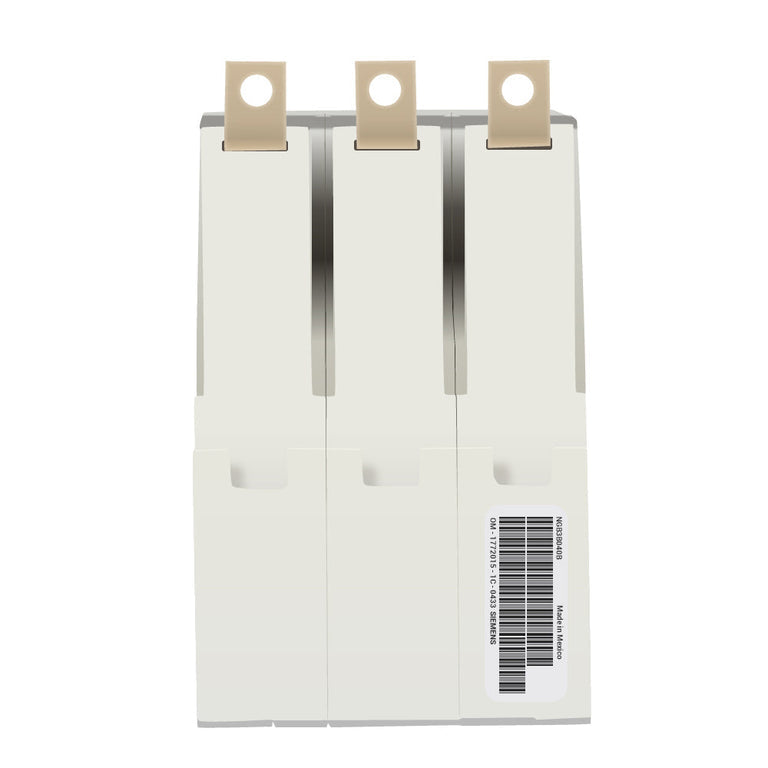

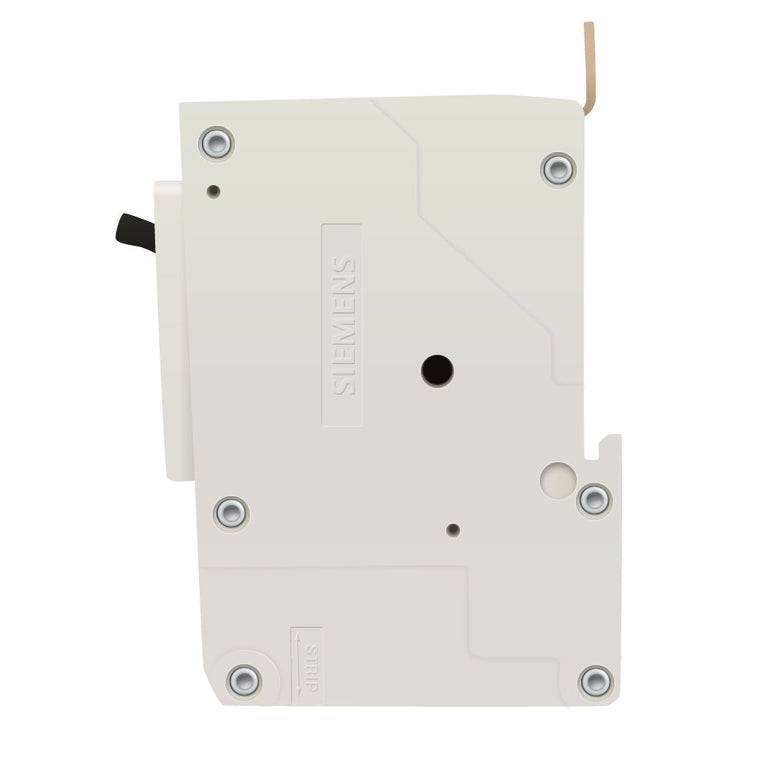

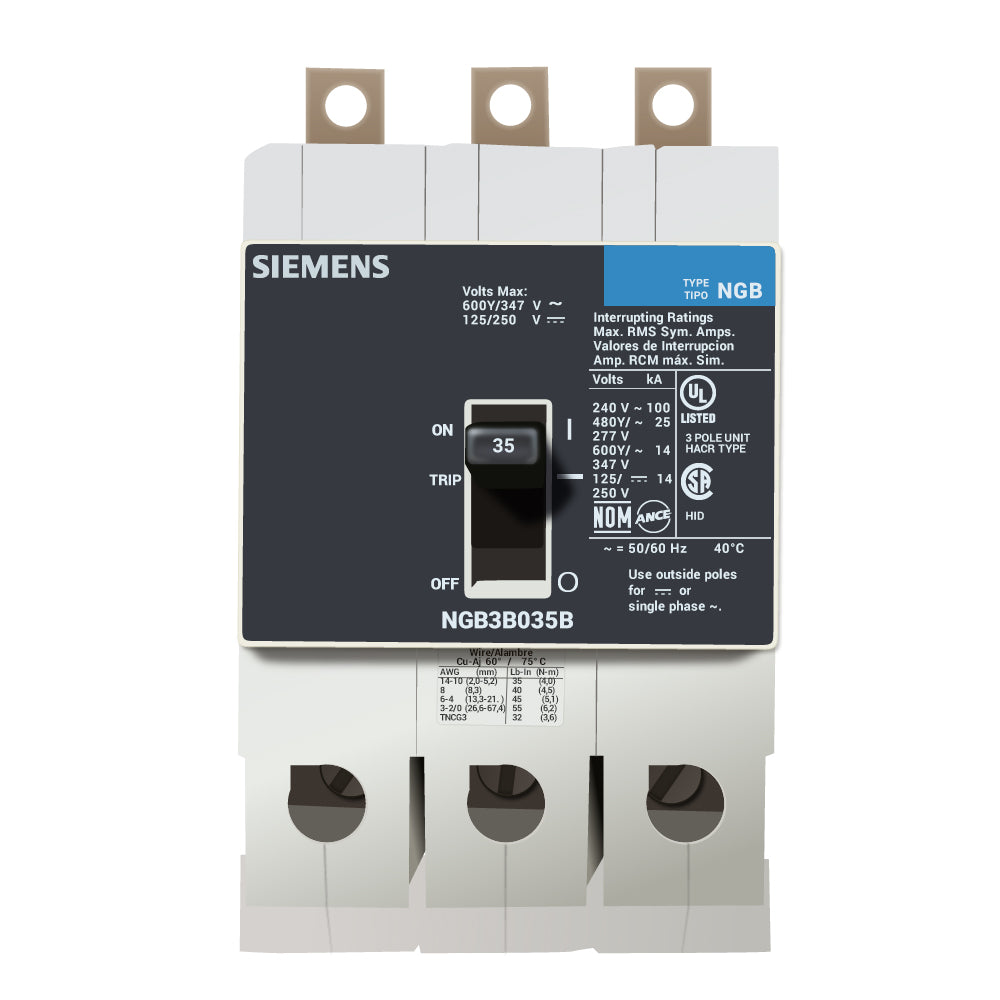

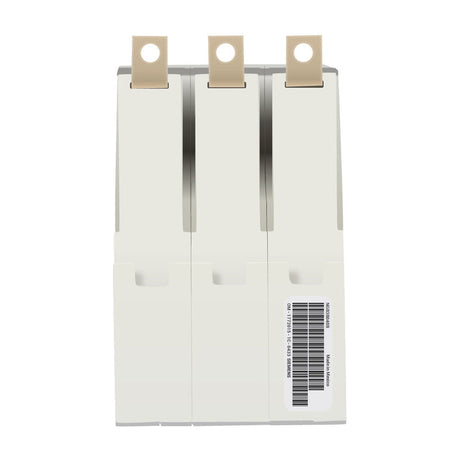

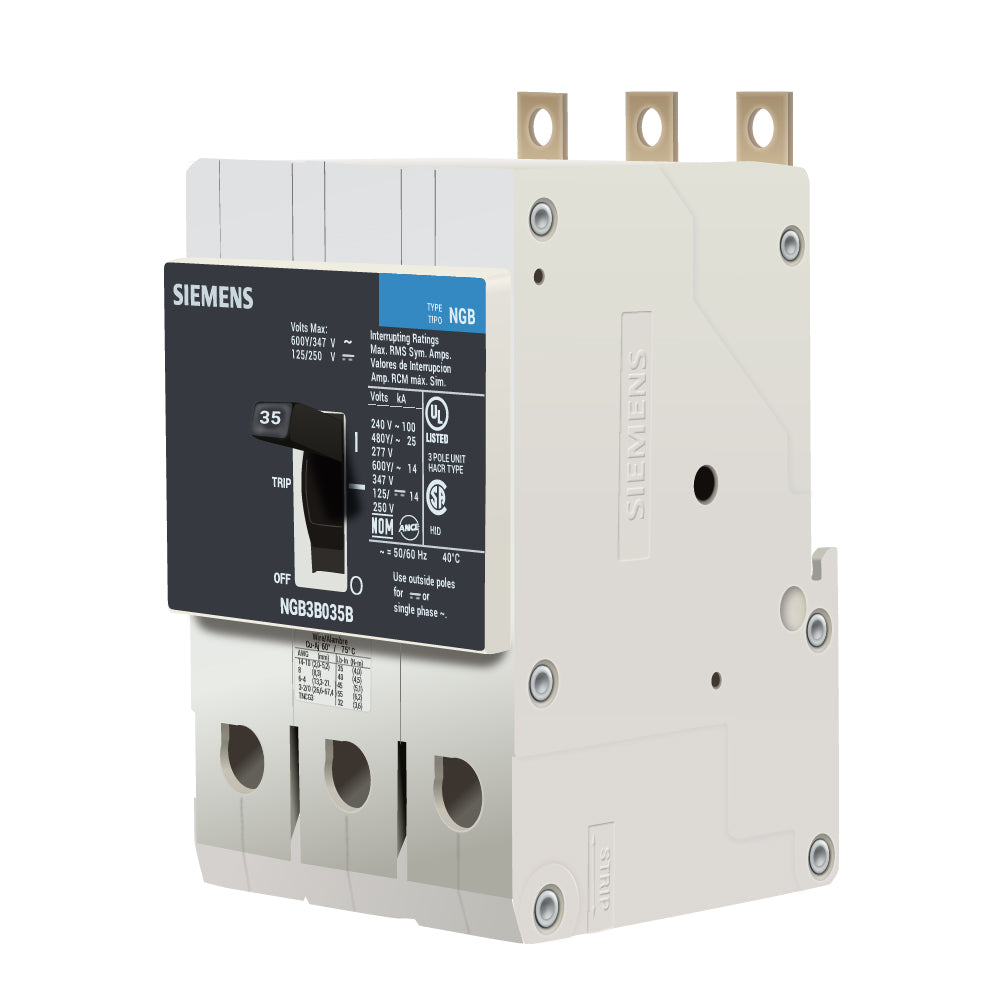

Siemens NGB3B035B 35 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 25 kA@480 V – Bolt-On – VL Series

The Siemens NGB3B035B is a 35 Amp, 3-pole molded case circuit breaker from the Siemens VL Series, Type NGB. Rated for 600 V, it provides a 25 kA interrupting rating at 480 V and features thermal-magnetic overcurrent protection with LI (Long-Time and Instantaneous) trip functions. Designed for bolt-on panelboard mounting, this breaker supports reverse-feed applications and includes load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: VL
• Type: NGB
• Catalog Number / MPN: NGB3B035B
• Primary Rating: 35 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 25 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Bolt-On Panelboard Mounting
• Terminals: Load-Side Lug Terminals
• Application: Suitable for Reverse-Feed Applications

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: NGB3B035B
• Series: VL
• Type: NGB
• Current Rating: 35 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals
• UPC:783643414297

Compatibility

The Siemens NGB3B035B is designed for compatible Siemens VL Series, Type NGB panelboard applications and supports reverse-feed installation as specified.
