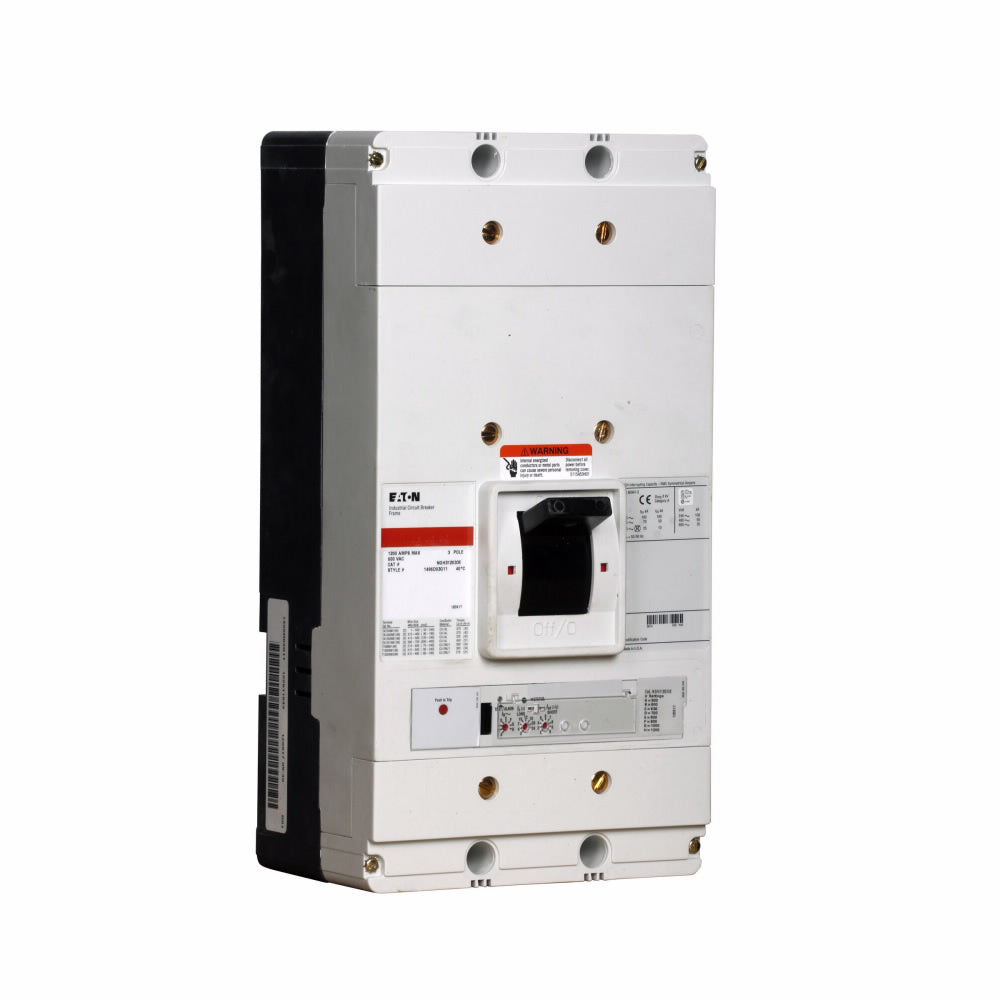

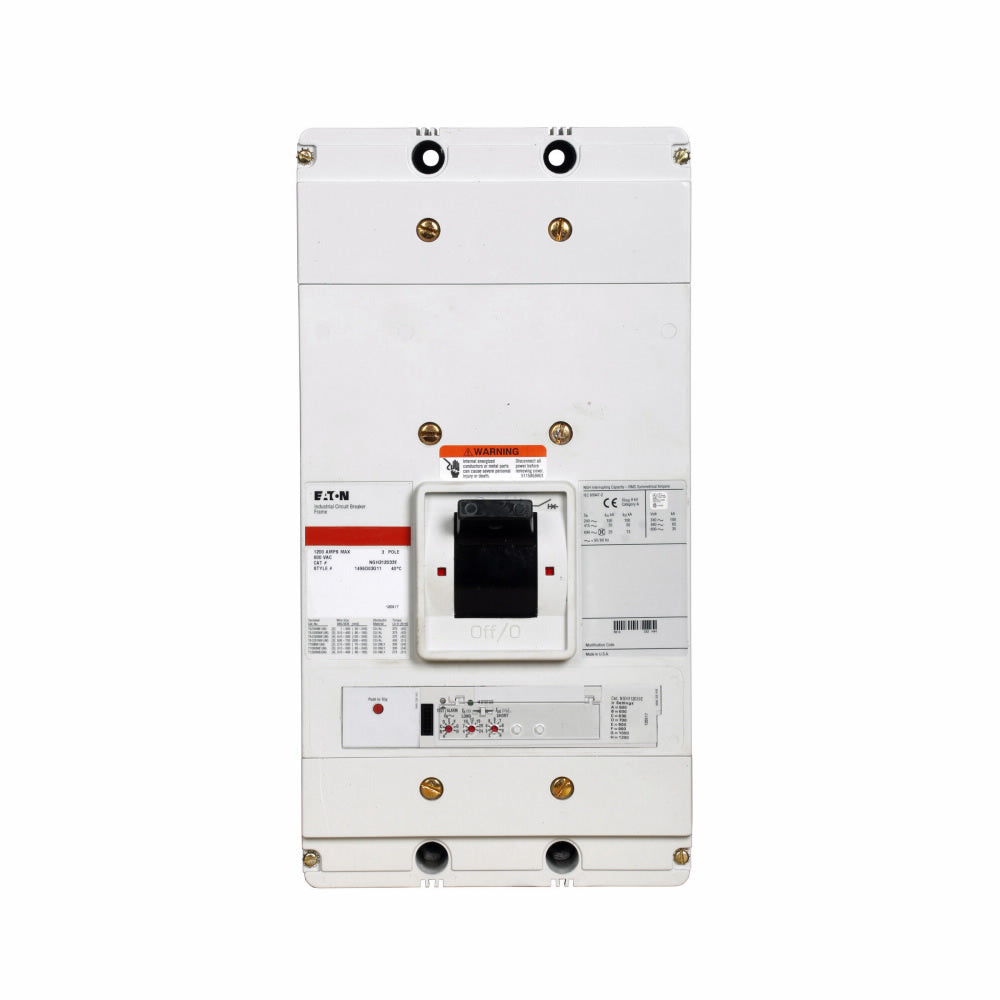

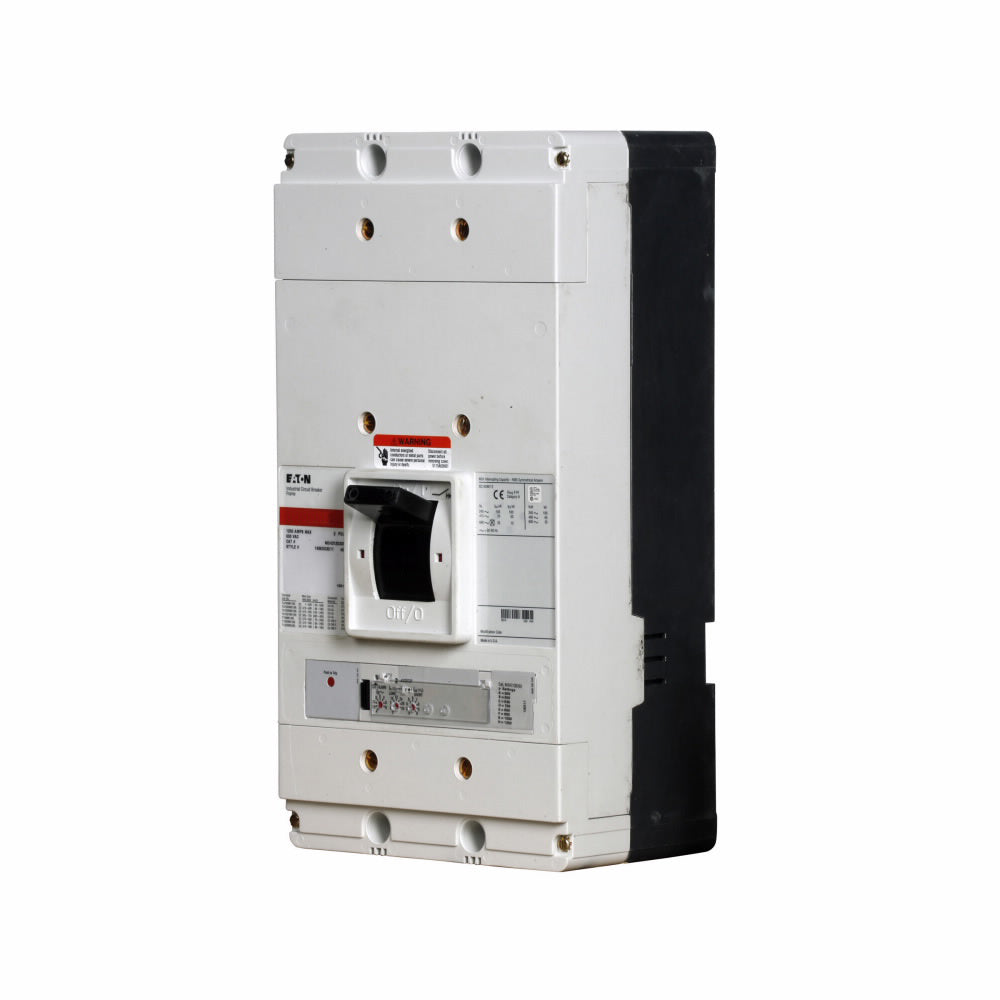

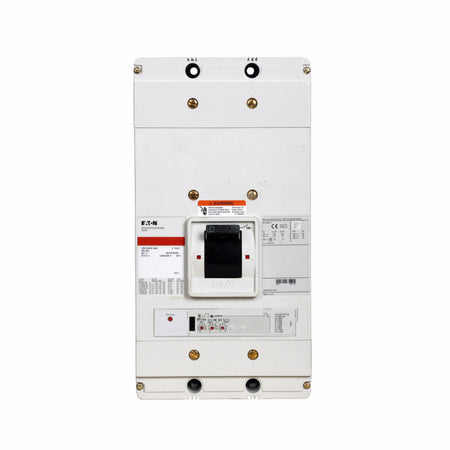

Eaton NGC308032E Molded Case Circuit Breaker – 800A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Bolt-On / Bus – Series G NG Frame

The Eaton NGC308032E is an 800A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series G NG Frame. It is designed for demanding commercial and industrial power distribution applications and features an electronic Digitrip RMS 310 LSI trip unit.

The breaker provides Long-Time, Short-Time, and Instantaneous (LSI) protection for system coordination and fault protection. It has a 600V maximum voltage rating with interrupting ratings of 200kA at 240V, 100kA at 480V, and 45kA at 600V.

The NGC308032E uses a bolt-on / bus connection and is supplied with line- and load-side connections; lugs are not included.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Frame: NG Frame
• Catalog No.: NGC308032E
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 200kA @ 240V; 100kA @ 480V; 45kA @ 600V
• Protection Type: Electronic Solid-State
• Trip Unit: Digitrip RMS 310
• Trip Functions: Long-Time, Short-Time, Instantaneous (LSI)
• Mounting / Connection: Bolt-On / Bus
• Terminals: Line & Load
• Lugs: Not Included
• Frequency: 50/60 Hz
• Rating: 80% Rated
• Application: Commercial and Industrial Power Distribution
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGC308032E
• Catalog Number: NGC308032E
• Model: NGC308032E
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Frame: NG Frame
• Trip Unit: Digitrip RMS 310
• Trip Configuration: Electronic LSI
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 800A
• GTIN: 786685378992
• UPC:786685378992

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G NG-frame electrical distribution equipment that accepts the NGC308032E configuration. It is suitable for large commercial and industrial power distribution applications requiring 800A, 3-pole electronic LSI protection.

The breaker uses a bolt-on / bus connection and line- and load-side connections, with lugs not included. Always verify the specific switchgear, panelboard, or electrical equipment model, approved breaker configuration, system voltage, available fault current, trip-unit requirements, terminal arrangement, mounting requirements, and installation specifications before installation.

Certifications:

• UL Listed
• CSA Certified
• HACR Rated
