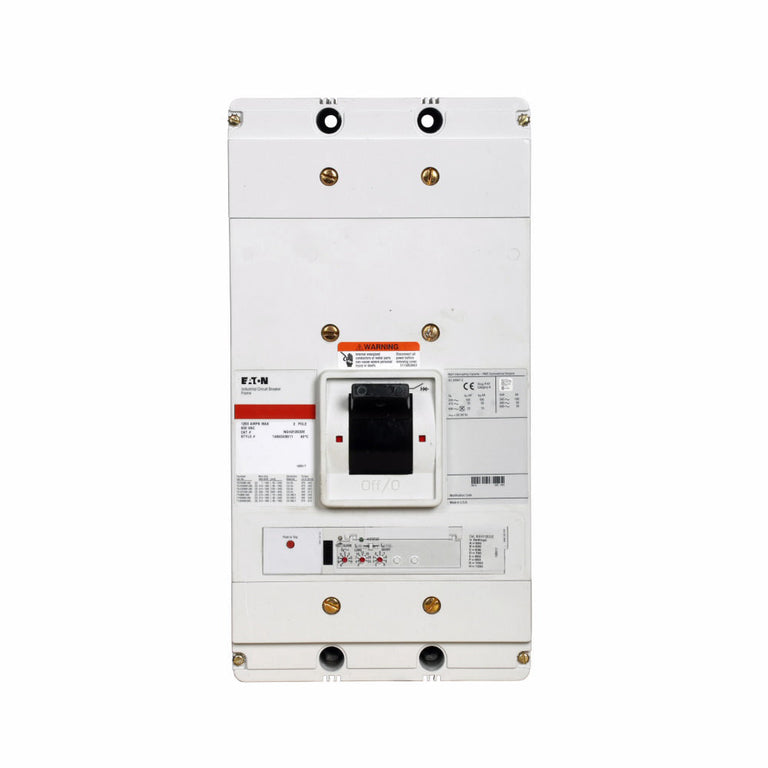

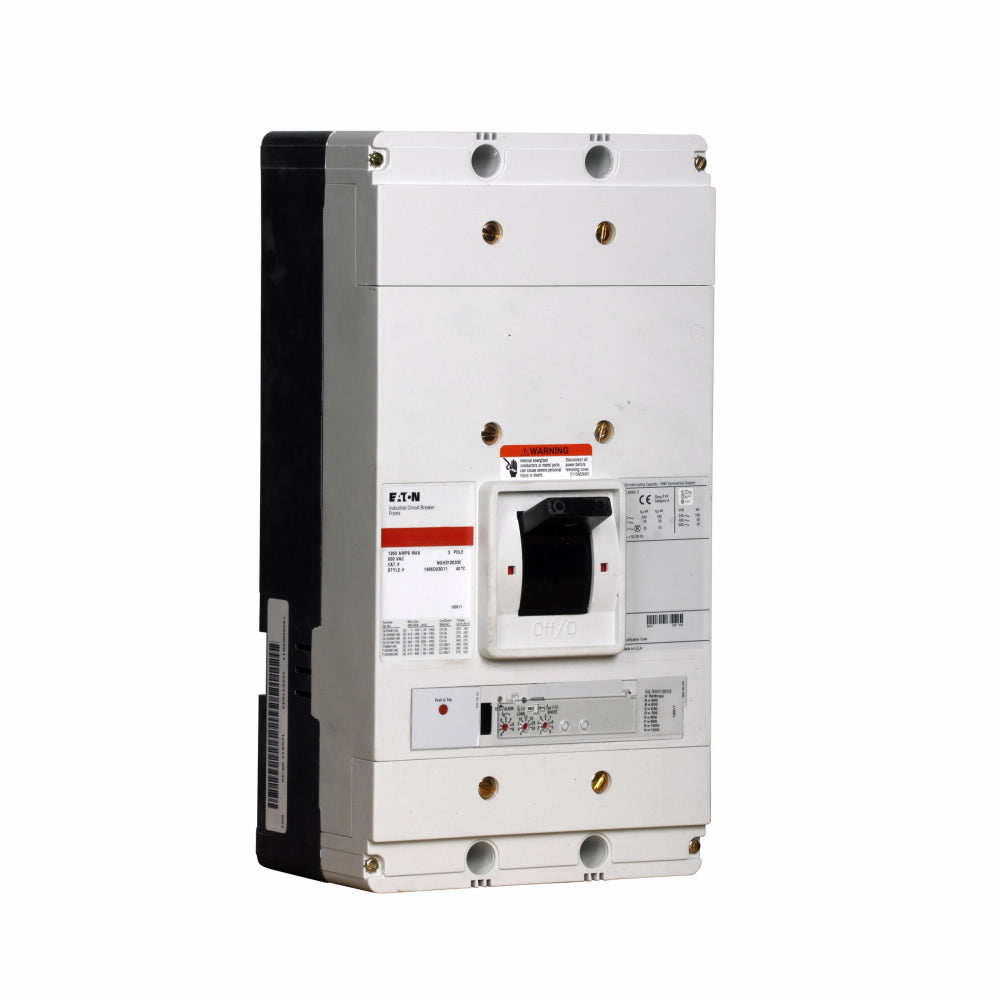

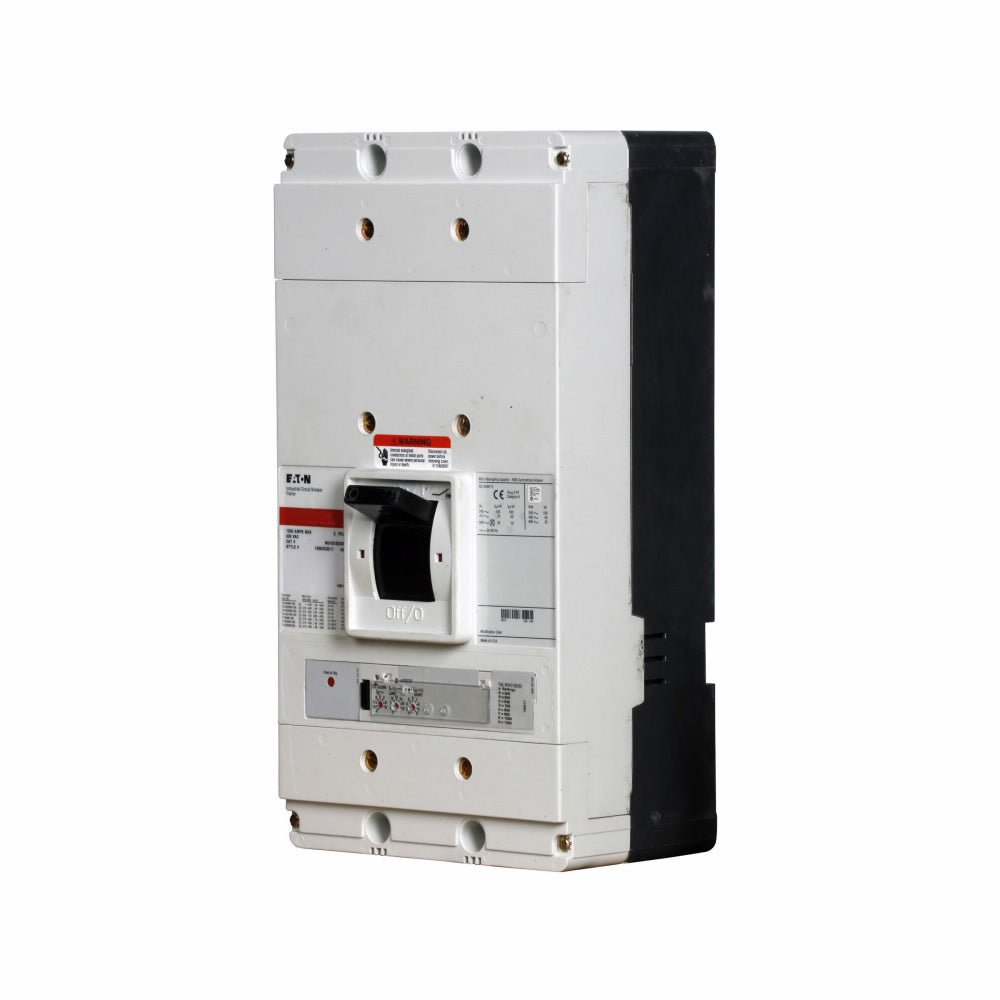

Eaton Series G NGC312032EC 1200 Amp Molded Case Circuit Breaker – 3 Pole – 480V AC – 100 kAIC @ 480V – NG Frame

The Eaton NGC312032EC is a Series G electronic molded case circuit breaker featuring an NG frame and Digitrip 310 RMS electronic trip unit. It provides LSI protection for high-capacity electrical distribution applications.

Specifications

• Brand: Eaton
• Series: Series G
• MPN: NGC312032EC
• Product Type: Electronic Molded Case Circuit Breaker
• Frame: NG
• Amperage Rating: 1200A
• Poles: 3
• Voltage Rating: 480V AC
• Interrupting Capacity: 200 kAIC at 240V AC; 100 kAIC at 480V AC
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Protection: Electronic
• Connection: Line and load
• Conductor Connection: Imperial
• Frequency: 50/60 Hz
• Rated Current: 80% rated

Part Numbers & Identification

• Manufacturer Part Number: NGC312032EC
• UPC:786685574424

Compatibility

Designed for compatible Eaton Series G NG-frame installations requiring a three-pole, 1200A electronic circuit breaker with Digitrip 310 RMS LSI protection.
