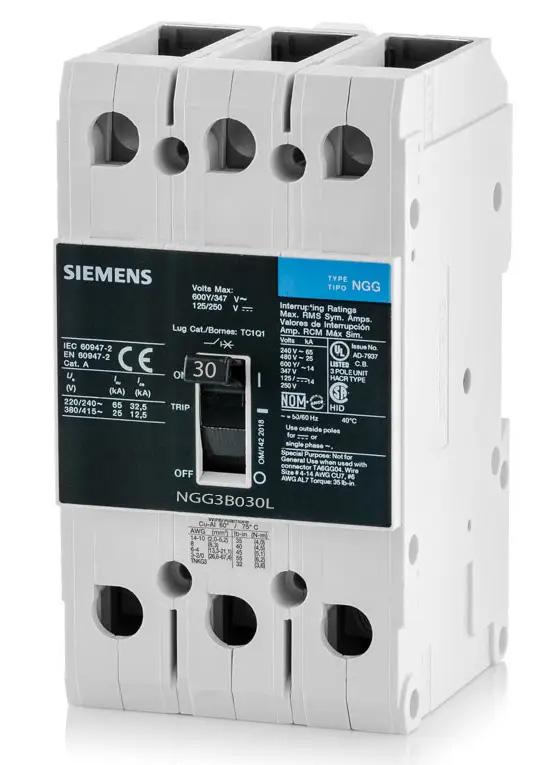

Siemens NGG3B030L Molded Case Circuit Breaker – 30A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Feed-Thru – VL NGG Series

The Siemens NGG3B030L is a 30A, 3-pole, 3-phase molded case circuit breaker from the Siemens VL Series, Type NGG. It is designed for compatible electrical distribution applications and provides a standard interrupting capacity of 25kA at 480V.

The breaker is rated for 600V, features Long-Time and Instantaneous (LI) trip functions, and uses a feed-thru configuration with line- and load-side lug terminals. It is suitable for reverse-feed applications and supports screw or DIN rail mounting.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: VL Series
• Series: VL
• Type: NGG
• Catalog No.: NGG3B030L
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Not specified
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Screw or DIN Rail Mounting
• Connection / Configuration: Feed-Thru
• Terminal Type: Line- and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Feed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGG3B030L
• Catalog Number: NGG3B030L
• Model: NGG3B030L
• Product Family: Siemens VL Circuit Breakers
• Series: VL
• Type: NGG
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 30A
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:783643413818

Compatibility:

Designed for use with compatible Siemens VL Series Type NGG electrical distribution equipment that accepts NGG Series molded case circuit breakers. The NGG3B030L provides 30A, 3-pole protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line- and load-side lug terminals, supports screw or DIN rail mounting, and is suitable for reverse-feed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, mounting method, and installation specifications before installation.
