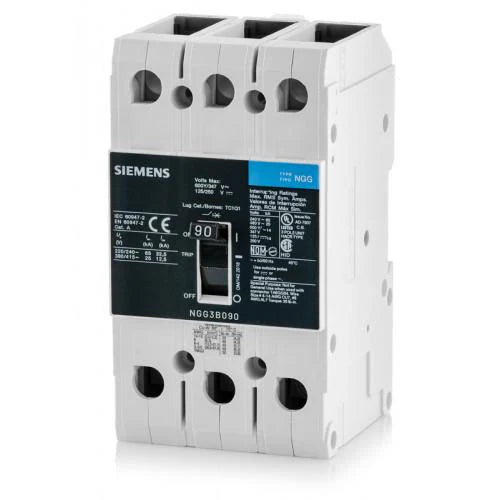

Siemens NGG3B090 Molded Case Circuit Breaker – 90A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Feed-Thru – VL Series NGG

The Siemens NGG3B090 is a 90A, 3-pole, 3-phase molded case circuit breaker from the Siemens VL Series Type NGG. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a standard interrupting capacity.

The breaker is rated for 600V and provides a 25kA interrupting rating at 480V. It features a feed-through configuration, line- and load-side lug terminals, and is suitable for reverse-fed applications. The source information specifies mounting using screws or DIN rail.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: VL Series
• Series: VL
• Type: NGG
• Catalog No.: NGG3B090
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Screw or DIN Rail Mounting
• Connection / Configuration: Feed-Thru
• Terminal Type: Line- and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGG3B090
• Catalog Number: NGG3B090
• Model: NGG3B090
• Product Family: Siemens VL Series Circuit Breakers
• Series: VL
• Type: NGG
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 90A
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:783643363434

Compatibility:

Designed for use with compatible Siemens VL Series Type NGG electrical distribution equipment that accepts the NGG Series molded case circuit breaker. The NGG3B090 provides 90A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features a feed-through configuration, line- and load-side lug terminals, and mounting by screws or DIN rail as specified. It is also suitable for reverse-fed applications. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, mounting arrangement, DIN rail compatibility, terminal configuration, and reverse-feed requirements before installation.
