Eaton Series G NGH308033EC 800 Amp Molded Case Circuit Breaker – 3 Pole – 480V AC – 65 kAIC @ 480V – NG Frame

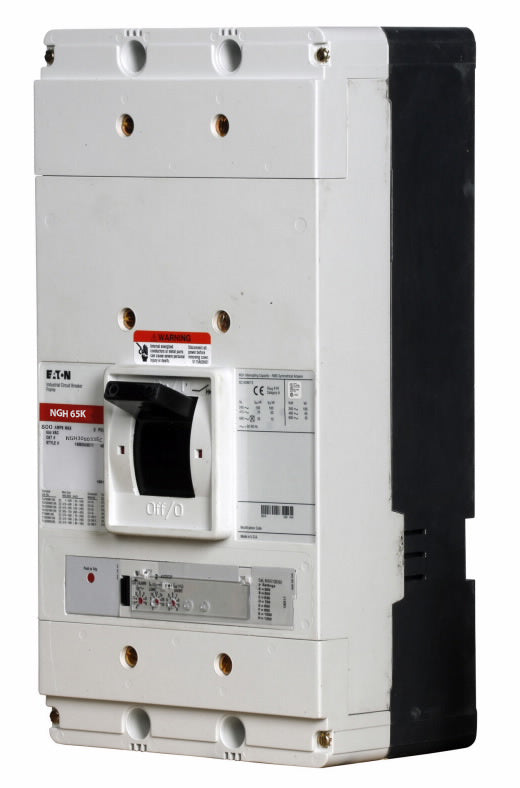

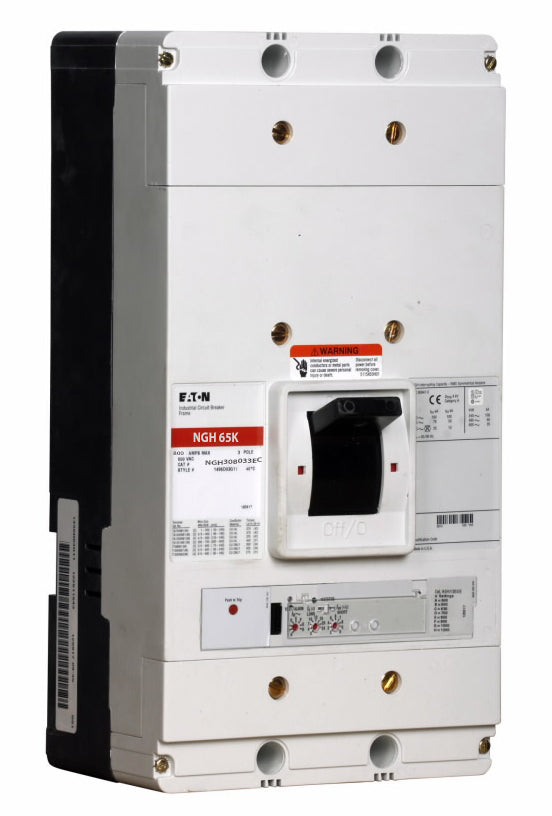

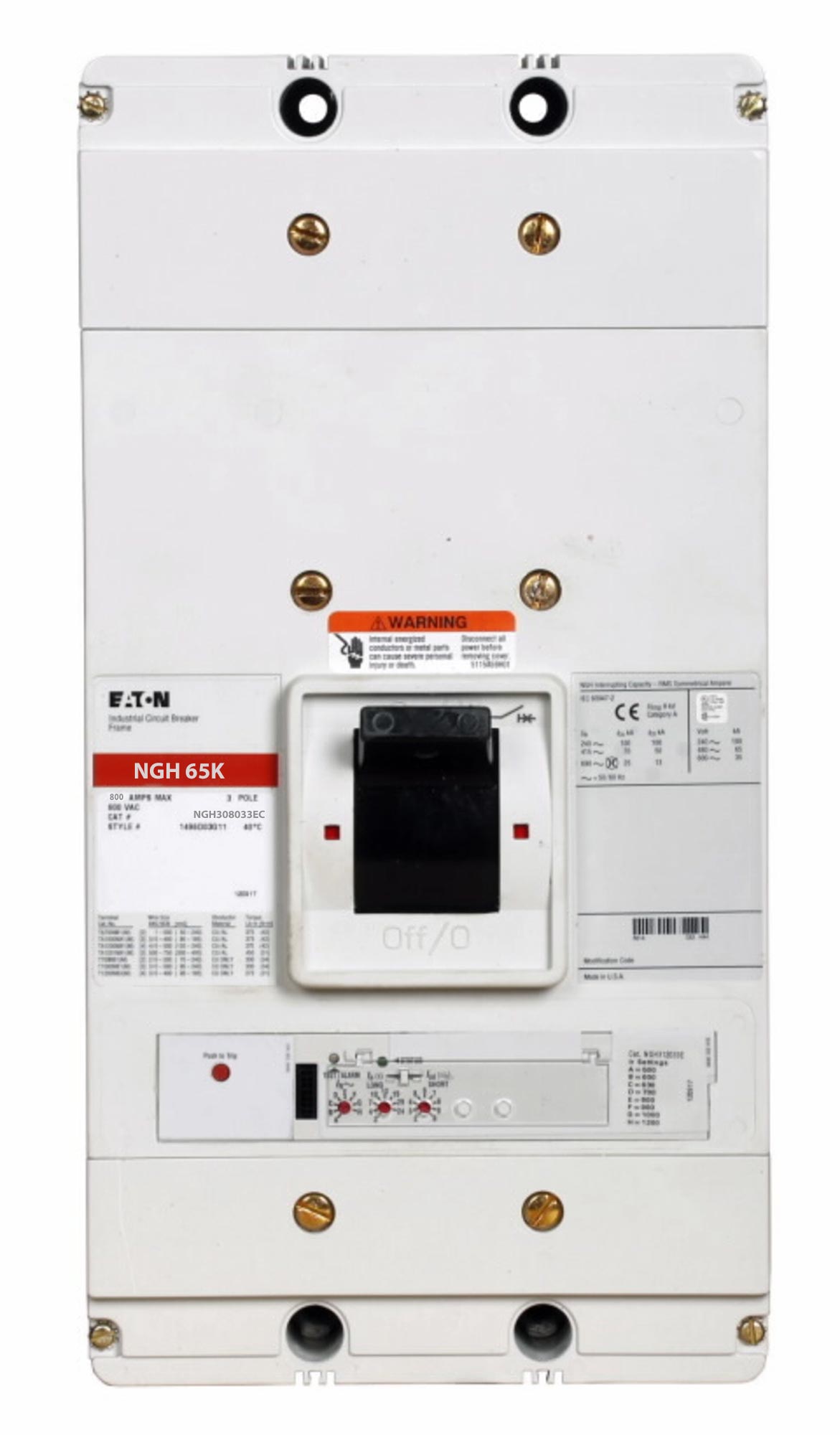

The Eaton NGH308033EC is a Series G electronic molded case circuit breaker featuring an NG frame and Digitrip 310 RMS electronic trip unit. It provides LS protection for high-capacity electrical distribution applications and is designed for 100% rated operation.

Specifications

• Brand: Eaton
• Series: Series G
• MPN: NGH308033EC
• Product Type: Electronic Molded Case Circuit Breaker
• Frame: NG
• Amperage Rating: 800A
• Poles: 3
• Voltage Rating: 480V AC
• Interrupting Capacity: 100 kAIC at 240V AC; 65 kAIC at 480V AC
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LS – Long-Time and Short-Time
• Protection: Electronic
• Connection: Line and load
• Conductor Connection: Imperial
• Frequency: 50/60 Hz
• Rated Current: 100% rated

Part Numbers & Identification

• Manufacturer Part Number: NGH308033EC
• UPC:786685574318

Compatibility

Designed for compatible Eaton Series G NG-frame installations requiring an 800A, three-pole electronic circuit breaker with Digitrip 310 RMS LS protection and 100% rating.
