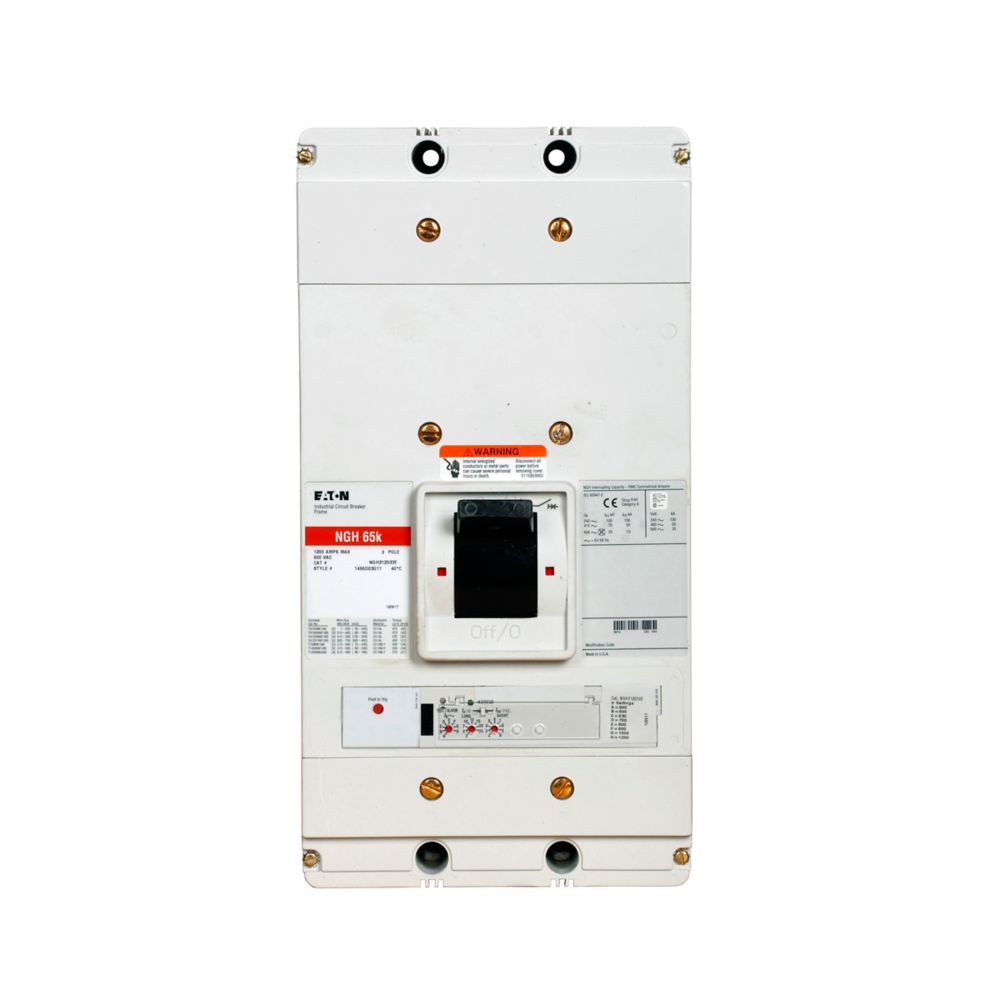

Eaton NGH308035E 800 Amp Electronic Molded Case Circuit Breaker – 3 Pole – 480 Vac – 100 kAIC at 240 Vac / 65 kAIC at 480 Vac – Line and Load – Series G

The Eaton NGH308035E is an 800 Amp electronic molded case circuit breaker from the Eaton Cutler-Hammer Series G. Designed for demanding electrical distribution applications, this NG-frame circuit breaker features a Digitrip 310 RMS electronic trip unit with LSG (Long-Time, Short-Time, and Ground-Fault) protection. It has a three-pole configuration, a 480 Vac voltage rating, and interrupting capacities of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac. The breaker is 80% rated and operates at 50/60 Hz, with line and load terminals.

Specifications

• Manufacturer: Eaton
• Brand: Eaton Cutler-Hammer
• Product Type: Electronic Molded Case Circuit Breaker
• Series: Series G
• Frame Type: NG Frame
• Catalog Number / MPN: NGH308035E
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Voltage Rating: 480 Vac
• Interrupting Rating at 240 Vac: 100 kAIC
• Interrupting Rating at 480 Vac: 65 kAIC
• Trip Unit: Digitrip 310 RMS
• Trip Type: Electronic LSG (Long-Time, Short-Time, Ground-Fault)
• Frequency: 50/60 Hz
• Terminal Configuration: Line and Load
• Rating: 80% Rated
• Application: Electrical distribution and overcurrent protection

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton Cutler-Hammer
• Catalog Number: NGH308035E
• Series: Series G
• Frame: NG Frame
• Current Rating: 800 A
• Pole Count: 3 Pole
• Trip Unit Identification: Digitrip 310 RMS
• Trip Protection: Electronic LSG
• Product Type: Molded Case Circuit Breaker
• UPC:786685379180

Compatibility

The Eaton NGH308035E is intended for compatible electrical distribution systems and switchgear assemblies designed to accommodate Eaton Series G NG-frame molded case circuit breakers. Verify mounting requirements, terminal connections, voltage ratings, interrupting capacity, and equipment compatibility before installation or replacement.
