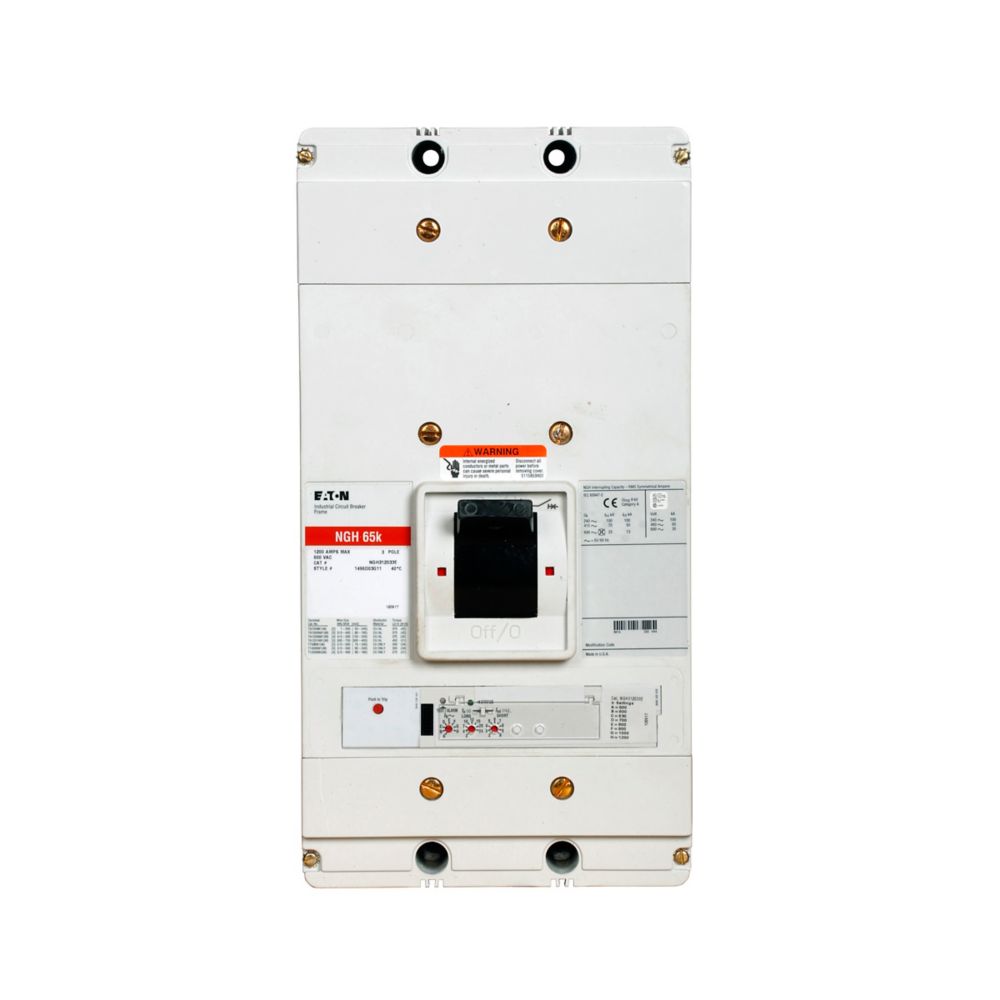

Eaton NGH308036M 800 Amp Molded Case Circuit Breaker – 3 Pole – 480 V AC – 65 kAIC@480 V – Electronic LSIG Trip – Series G

The Eaton NGH308036M is an 800 Amp, 3-pole electronic molded case circuit breaker from the Eaton / Cutler-Hammer Series G, NG-frame product family. It is rated for 480 V AC and features a Digitrip 310 RMS electronic trip unit with LSIG (Long-Time, Short-Time, Instantaneous, and Ground-Fault) protection functions. The breaker provides an interrupting rating of 100 kAIC at 240 V AC and 65 kAIC at 480 V AC. It supports line- and load-side connections, uses a metric terminal system, and is 80% rated.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Electronic Molded Case Circuit Breaker
• Series: Series G
• Frame: NG Frame
• Catalog Number / MPN: NGH308036M
• Primary Rating: 800 Amp
• Poles / Configuration: 3 Pole
• Voltage: 480 V AC
• Interrupting Rating: 100 kAIC @ 240 V AC; 65 kAIC @ 480 V AC
• Trip Type: Electronic
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground-Fault
• Connection: Line and Load
• Terminal System: Metric
• Frequency: 50/60 Hz
• Rated Capacity: 80% Rated

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: NGH308036M
• Series: Series G
• Frame: NG Frame
• Current Rating: 800 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground-Fault
• Terminal System: Metric
• UPC:786685379210

Compatibility

The Eaton NGH308036M is designed for compatible Eaton Series G NG-frame electrical distribution applications requiring electronic LSIG overcurrent and ground-fault protection.
