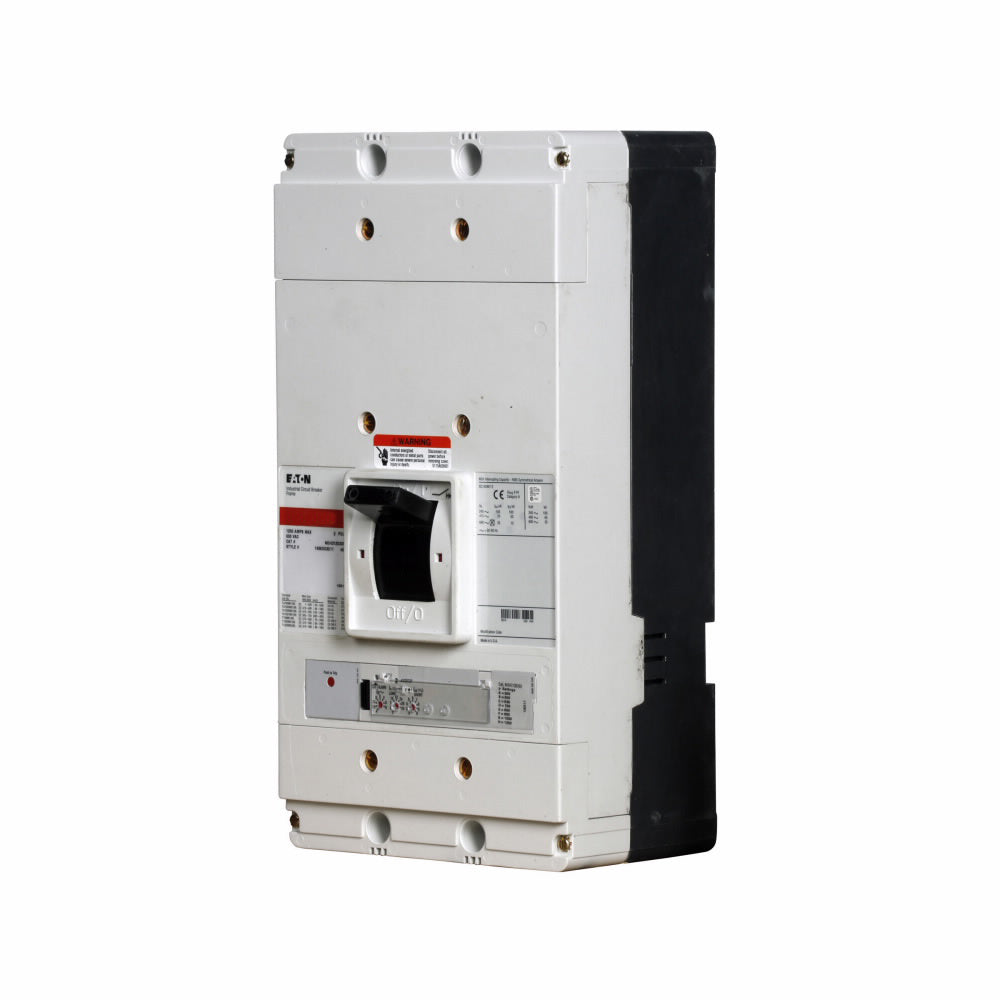

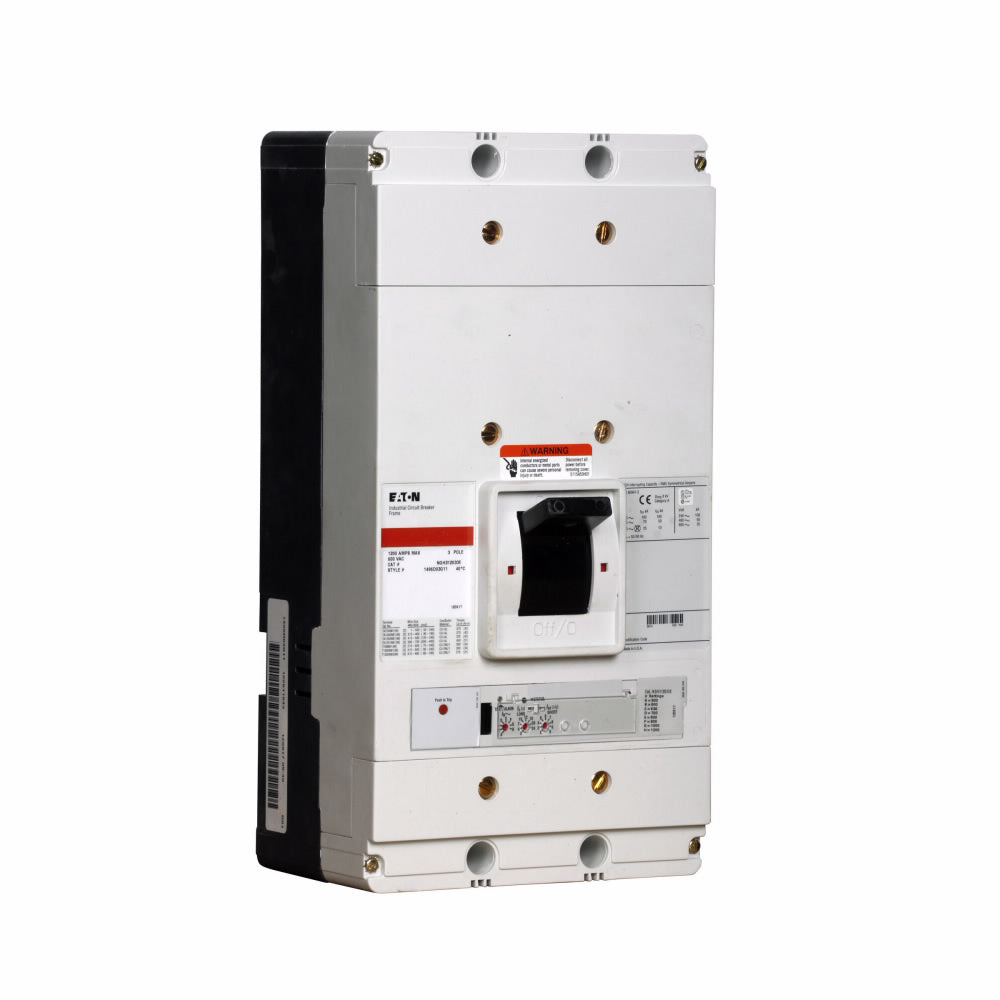

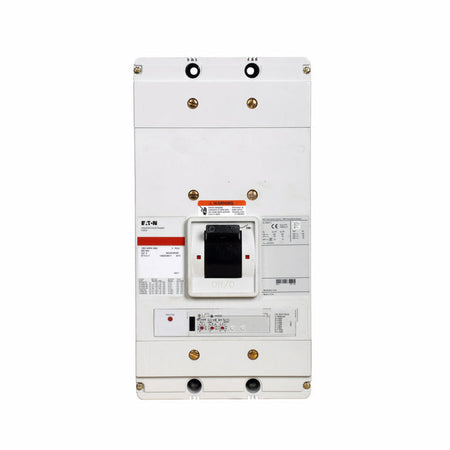

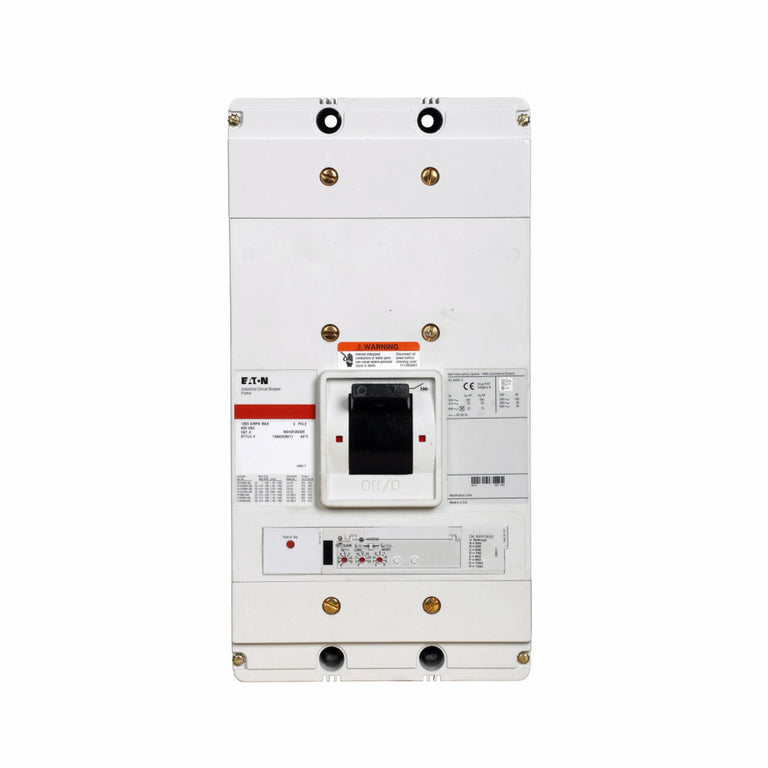

Eaton Cutler-Hammer NGH312032EC 1200 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 65 kA @ 480V – Series G NGH Frame

The Eaton Cutler-Hammer NGH312032EC is a 1200A, 3-pole molded case circuit breaker from the Series G family, designed for industrial and commercial power distribution systems. It features a 600V rating, 65 kA interrupting capacity at 480V, and a 100%-rated design. The breaker is equipped with a solid-state electronic Digitrip RMS 310+ trip unit, providing LSI protection (Long-Time, Short-Time, and Instantaneous). Its bolt-on configuration includes imperial tapped line/load conductors.

Specifications

• Brand: Eaton / Cutler-Hammer
• Product Series: Series G
• Type: NGH
• Model / MPN: NGH312032EC
• Product Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 1200A
• Poles: 3 Pole
• Phase: 3 Phase
• Voltage Rating: 600V
• Interrupting Capacity: 65 kA @ 480V
• Interrupting Class: High Interrupting
• Rating: 100% Rated
• Mounting: Bolt-On
• Trip Unit: Digitrip RMS 310+
• Trip Functions: LSI – Long-Time, Short-Time, and Instantaneous
• Trip Technology: Solid-State Electronic
• Line/Load Connection: Imperial Tapped Conductors

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: NGH312032EC
• Product Family: Series G
• Breaker Type: NGH
• UPC:786685574349

Compatibility

Designed for compatible Eaton Cutler-Hammer Series G distribution equipment supporting 1200A, 3-pole breakers with matching voltage, interrupting capacity, and bolt-on mounting arrangements.
