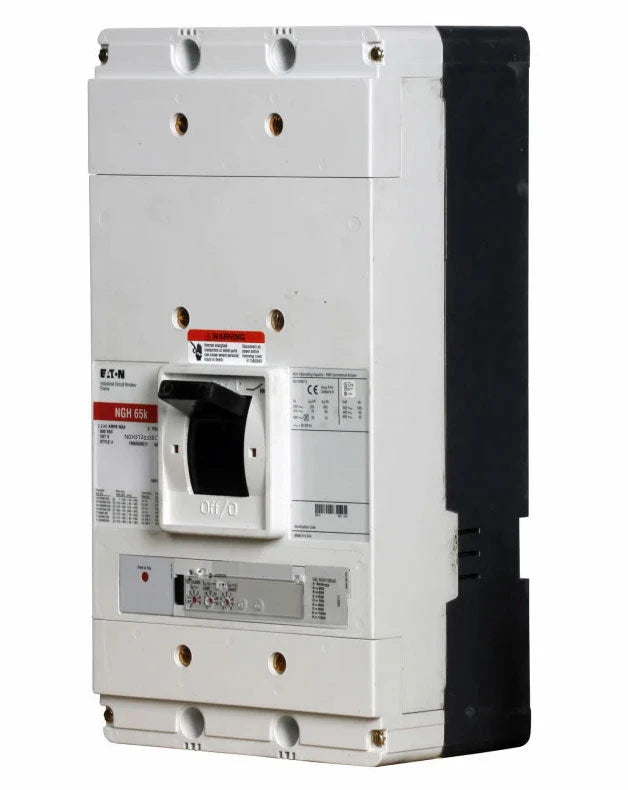

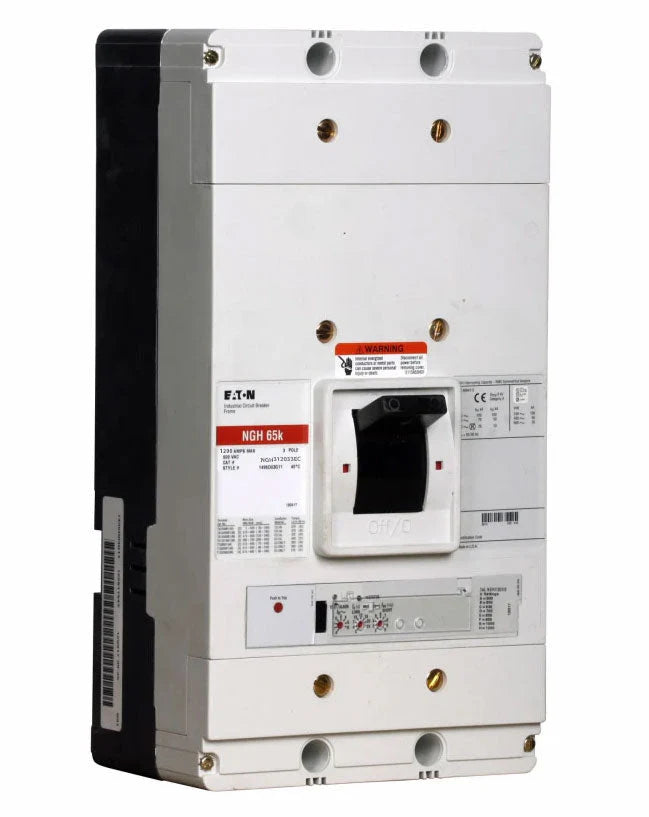

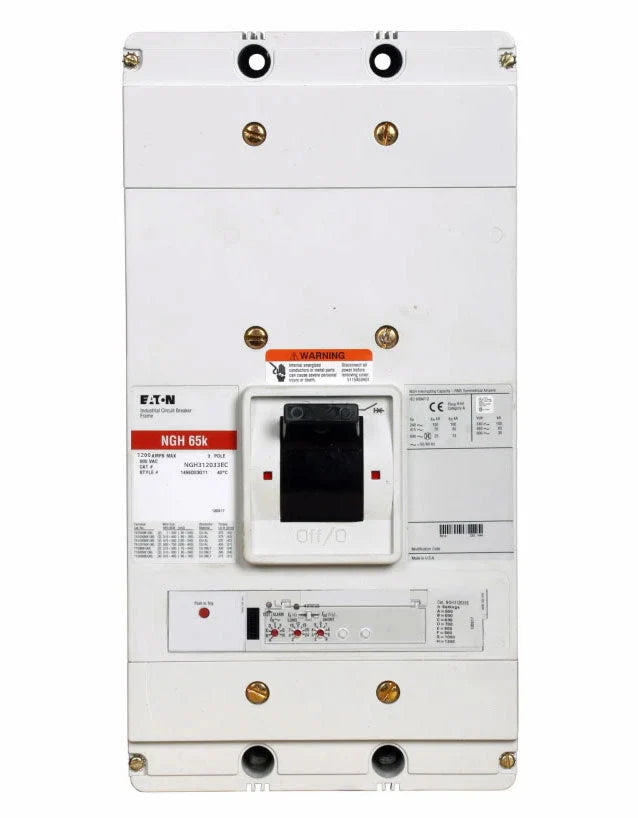

Eaton NGH312033EC Molded Case Circuit Breaker – 1200A – 3-Pole / 3-Phase – 600V – 100kAIC @ 240V / 65kAIC @ 480V – Bolt-On – Series G NGH

The Eaton NGH312033EC is a 1200A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series G Type NGH. It features a solid-state electronic Digitrip RMS 310+ trip unit and is 100% rated for compatible electrical distribution applications.

The breaker is rated for 600V and provides a 100kAIC interrupting rating at 240V AC and 65kAIC at 480V AC, with high interrupting capacity. It uses bolt-on mounting and includes Long-Time and Short-Time (LS) trip functions.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Type: NGH
• Catalog No.: NGH312033EC
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kAIC @ 240V AC; 65kAIC @ 480V AC
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: Digitrip RMS 310+
• Trip Functions: Long-Time and Short-Time (LS)
• Mounting / Connection: Bolt-On
• Line/Load Conductor Configuration: Imperial Tapped
• Rating: 100% Rated
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGH312033EC
• Catalog Number: NGH312033EC
• Model: NGH312033EC
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: NGH
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• Trip Unit: Digitrip RMS 310+
• Trip Functions: Long-Time and Short-Time (LS)
• UPC:786685574356

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type NGH electrical distribution equipment that accepts NGH Series molded case circuit breakers. The NGH312033EC provides 1200A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker is 100% rated, uses bolt-on mounting, and is supplied without line/load lugs. It features imperial tapped line/load conductor connections.

Certifications:

• 100% Rated
• 1200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kAIC @ 240V AC Interrupting Rating
• 65kAIC @ 480V AC Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• Digitrip RMS 310+ Trip Unit
• Long-Time and Short-Time (LS) Trip Functions
• Bolt-On Mounting
• Imperial Tapped Line/Load Conductors
• Lugs Not Included
