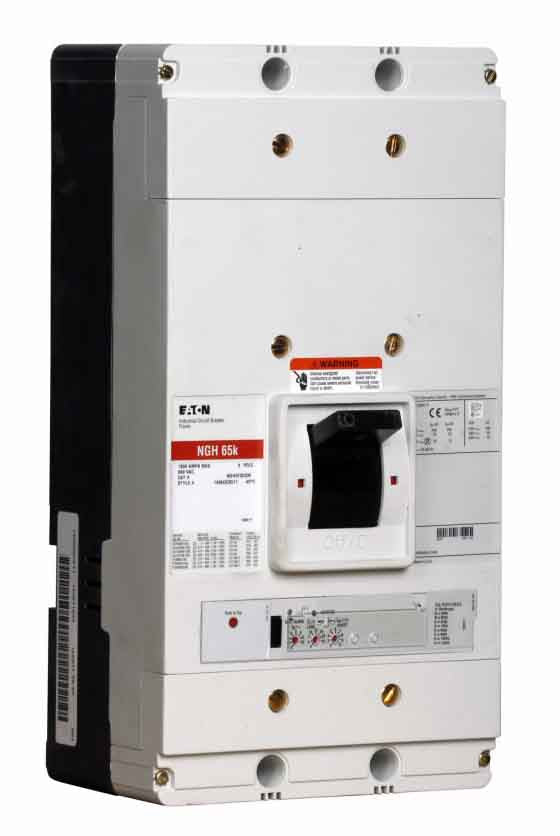

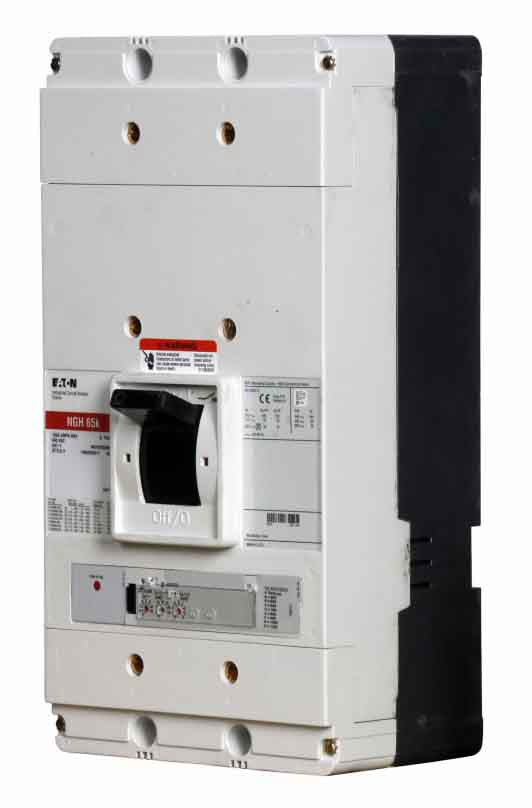

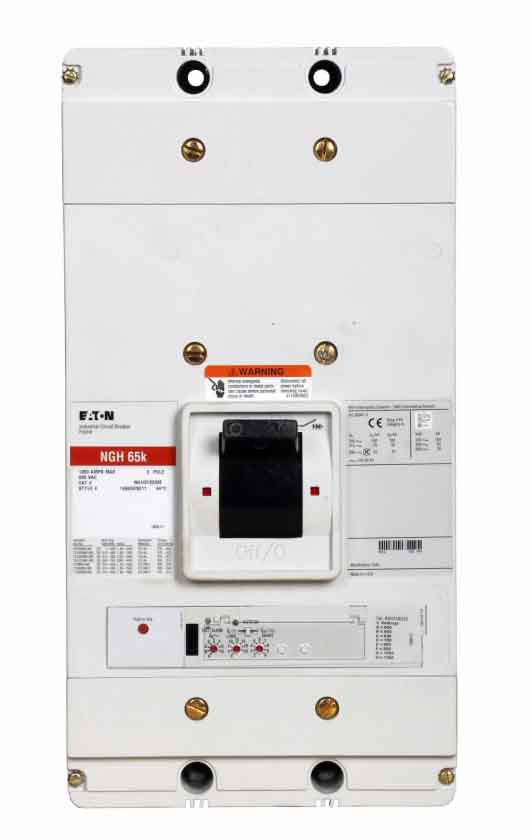

Eaton NGH312035E Molded Case Circuit Breaker – 1200A – 3-Pole / 3-Phase – 480V AC – 100kAIC @ 240V / 65kAIC @ 480V – Line & Load – Series G NG Series

The Eaton NGH312035E is a 1200A, 3-pole, 3-phase electronic molded case circuit breaker from the Eaton Series G NG-Frame NG Series. It features a Digitrip 310 RMS electronic LSG trip unit for compatible electrical distribution applications.

The NGH312035E is rated for 480V AC and provides interrupting ratings of 100kAIC at 240V AC and 65kAIC at 480V AC. It features line-and-load connections, operates at 50/60Hz, and is specified as 80% rated.

Specifications:

• Manufacturer: Eaton
• Product Type: Electronic Molded Case Circuit Breaker
• Product Family: Series G
• Series: NG
• Frame: NG-Frame
• Type: NG
• Catalog No.: NGH312035E
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V AC
• Interrupting Rating: 100kAIC @ 240V AC; 65kAIC @ 480V AC
• Protection Type: Electronic
• Trip Unit: Digitrip 310 RMS
• Trip Functions: Long-Time, Short-Time, and Ground-Fault (LSG)
• Connection: Line and Load
• System: Imperial
• Frequency: 50/60Hz
• Rating: 80% Rated
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGH312035E
• Catalog Number: NGH312035E
• Model: NGH312035E
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: NG
• Type: NG
• Frame: NG-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Electronic Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• Trip Unit: Digitrip 310 RMS
• UPC:786685379265

Compatibility:

Designed for use with compatible Eaton Series G NG-Frame electrical distribution equipment that accepts NG Series electronic molded case circuit breakers. The NGH312035E provides 1200A, 3-pole electronic protection for compatible 480V AC electrical distribution applications.

The breaker features a Digitrip 310 RMS LSG trip unit, line-and-load connections, 50/60Hz operation, and an 80% rating. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, trip-unit requirements, connection arrangement, and installation requirements before installation.

Certifications:

• Series G NG Series
• NG-Frame
• 1200A Rated
• 3-Pole / 3-Phase
• 480V AC Rated
• 100kAIC @ 240V AC Interrupting Rating
• 65kAIC @ 480V AC Interrupting Rating
• Electronic Protection
• Digitrip 310 RMS
• LSG Trip
• Line and Load Connections
• 50/60Hz
• 80% Rated
