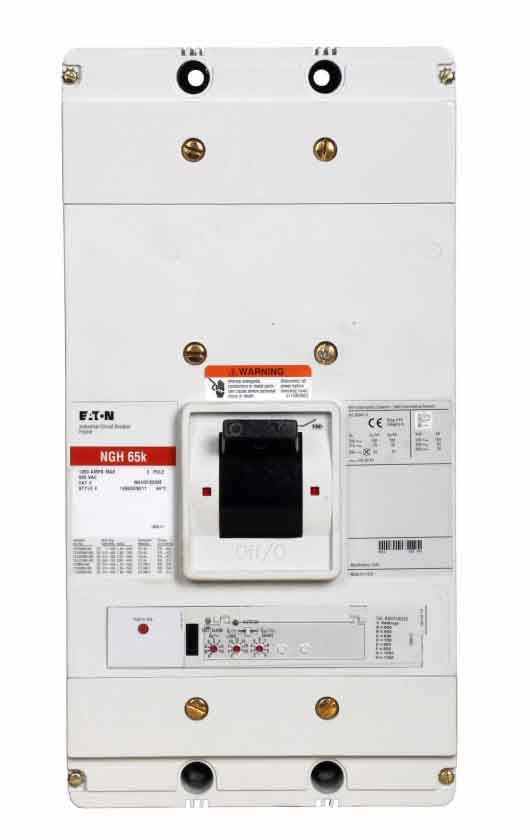

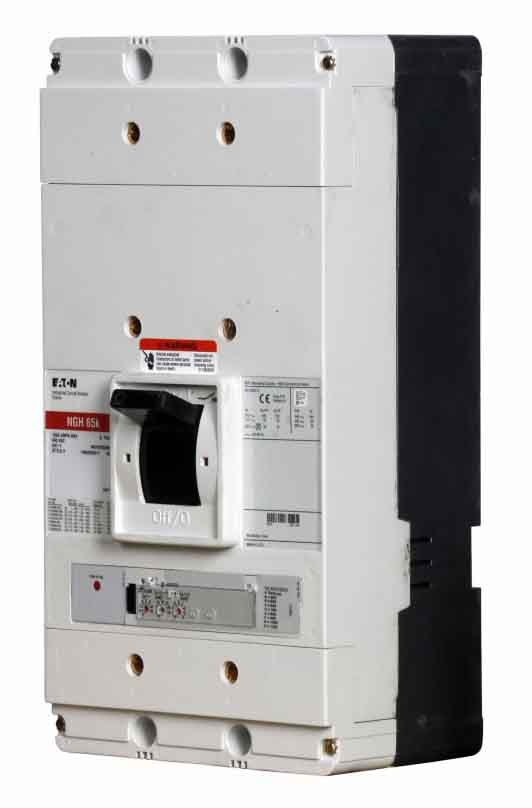

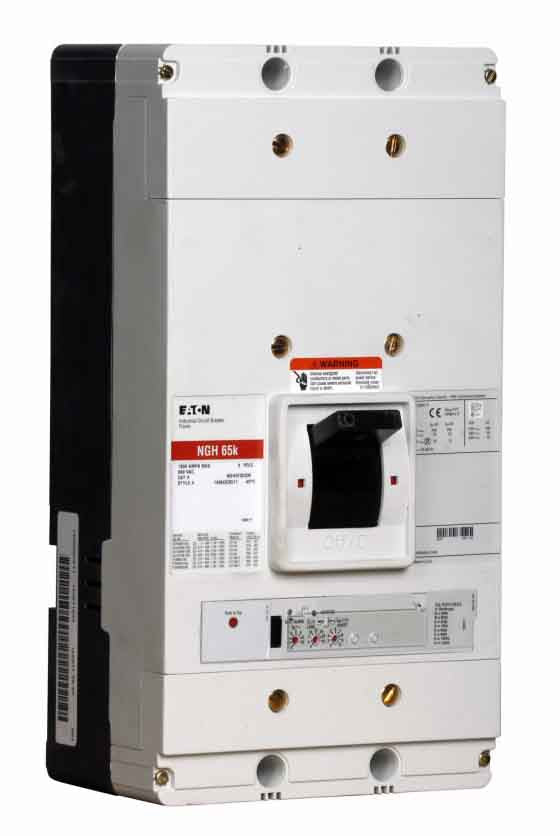

Eaton NGH312036E Molded Case Circuit Breaker – 1200A – 3-Pole – 480V AC – 100kAIC @ 240V / 65kAIC @ 480V – Line & Load – Series G NG

The Eaton NGH312036E is a 1200A, 3-pole electronic molded case circuit breaker from the Eaton Series G NG-Frame. It features a Digitrip 310 RMS electronic LSIG trip unit for electronic circuit protection and is designed for compatible electrical distribution applications.

The breaker is rated for 480V AC and provides an interrupting rating of 100kAIC at 240V AC and 65kAIC at 480V AC. It features line- and load-side connections, an Imperial configuration, and an 80% rated design.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Frame: NG-Frame
• Type: NG
• Catalog No.: NGH312036E
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Voltage Rating: 480V AC
• Interrupting Rating: 100kAIC @ 240V AC; 65kAIC @ 480V AC
• Trip Unit: Digitrip 310 RMS
• Trip Type: Electronic
• Trip Functions: LSIG — Long-Time, Short-Time, Instantaneous, and Ground-Fault
• Connection: Line and Load
• Configuration: Imperial
• Frequency: 50/60 Hz
• Rating: 80% Rated
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGH312036E
• Catalog Number: NGH312036E
• Model: NGH312036E
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Frame: NG-Frame
• Type: NG
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Electronic Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• UPC:786685379289

Compatibility:

Designed for use with compatible Eaton Series G NG-Frame electrical distribution equipment that accepts the NG Series molded case circuit breaker. The NGH312036E provides 1200A electronic protection with a Digitrip 310 RMS LSIG trip unit for compatible 480V AC applications.

The breaker has 100kAIC interrupting capacity at 240V AC and 65kAIC at 480V AC, with line- and load-side connections. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, trip-unit requirements, pole configuration, connection arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
