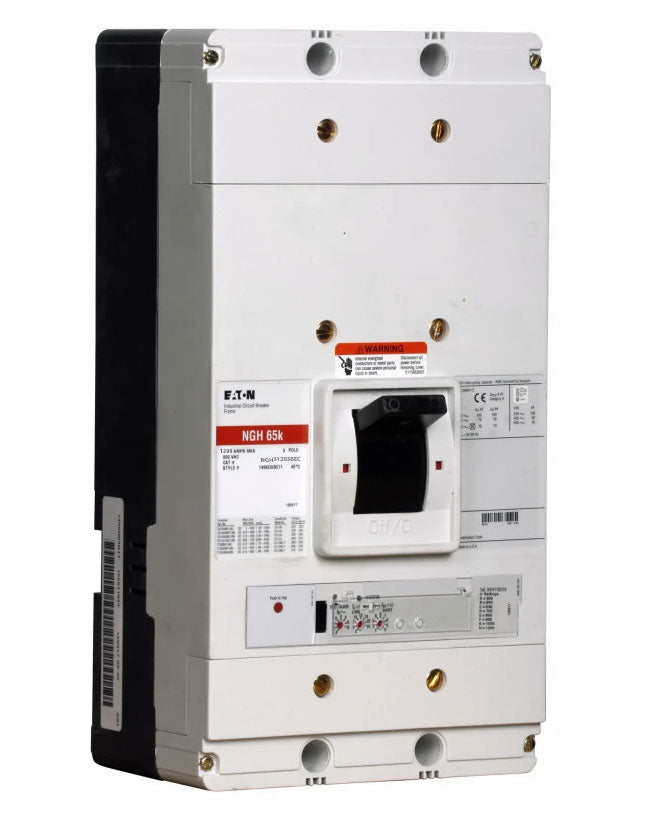

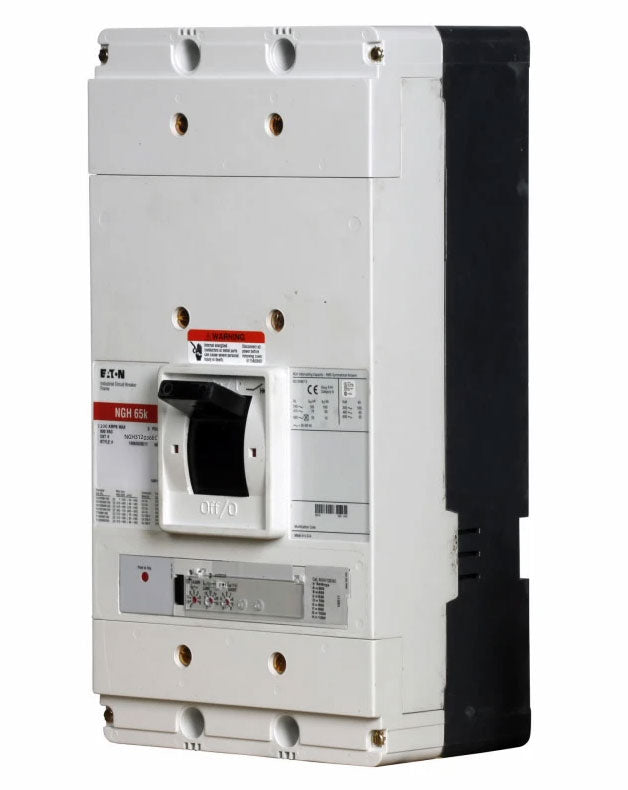

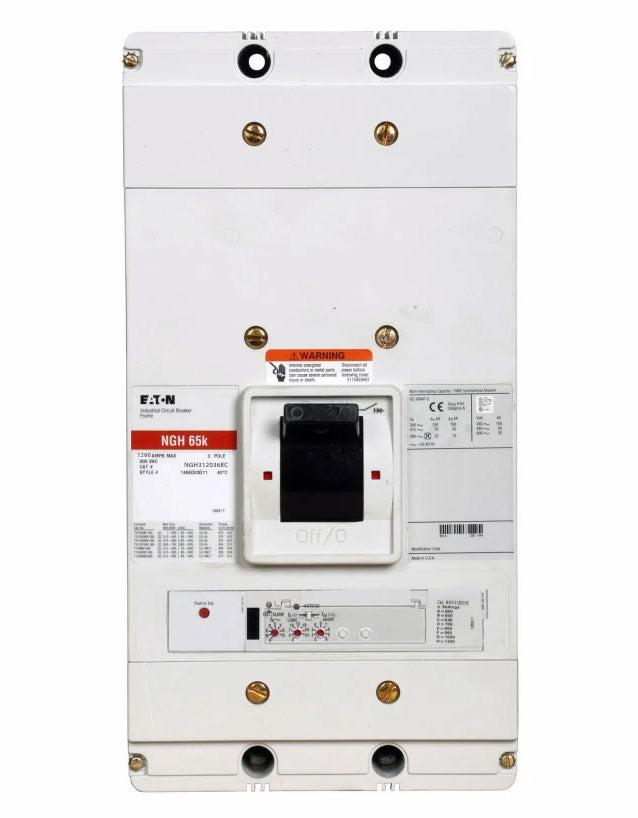

Eaton NGH312036EC Molded Case Circuit Breaker – 1200A – 3-Pole / 3-Phase – 600V – 100kA @ 240V / 65kA @ 480V – Bolt-On – Series G NGH

The Eaton NGH312036EC is a 1200A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series G Type NGH. It features a solid-state electronic Digitrip RMS 310+ trip unit with Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG) trip functions.

The NGH312036EC is rated for 600V AC and is 100% rated. It provides a 100kAIC interrupting rating at 240V AC and 65kAIC at 480V AC, with high interrupting capacity. The breaker uses a bolt-on configuration and includes imperial tapped line/load conductor connections. Lugs are not included.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Type: NGH
• Catalog No.: NGH312036EC
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 100kAIC @ 240V AC; 65kAIC @ 480V AC
• Interrupting Capacity: High
• Rating: 100% Rated
• Protection Type: Solid-State Electronic
• Trip Unit: Digitrip RMS 310+
• Trip Functions: Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG)
• Mounting / Connection: Bolt-On
• Terminal Configuration: Imperial Tapped Line/Load Conductors
• Lugs: Not Included
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGH312036EC
• Catalog Number: NGH312036EC
• Model: NGH312036EC
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: NGH
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• Trip Unit: Digitrip RMS 310+
• Trip Configuration: LSIG
• UPC:786685574370

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G Type NGH electrical distribution equipment that accepts NGH Series molded case circuit breakers. The NGH312036EC provides 1200A, 3-pole electronic protection for compatible 600V AC electrical distribution applications.

The breaker is 100% rated, uses a bolt-on configuration, and includes imperial tapped line/load conductor connections. Lugs are not included. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit compatibility, conductor and lug requirements, mounting arrangement, and installation requirements before installation.

Certifications:

• Series G NGH
• 1200A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 100kAIC @ 240V AC
• 65kAIC @ 480V AC
• High Interrupting Capacity
• 100% Rated
• Solid-State Electronic Protection
• Digitrip RMS 310+ Trip Unit
• LSIG Trip Functions
• Bolt-On Configuration
• Imperial Tapped Line/Load Conductors
• Lugs Not Included
