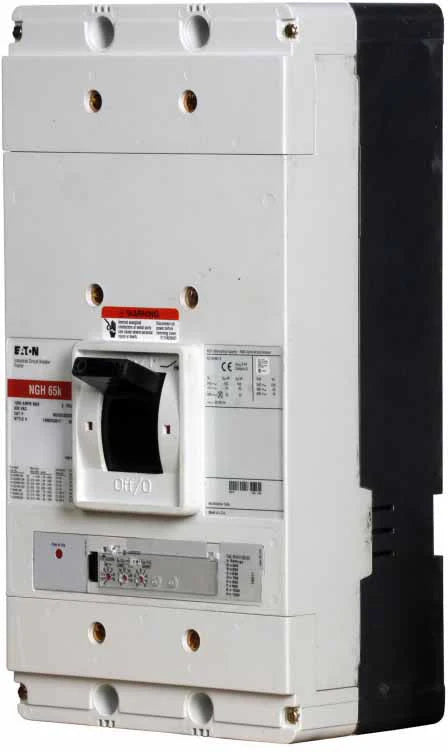

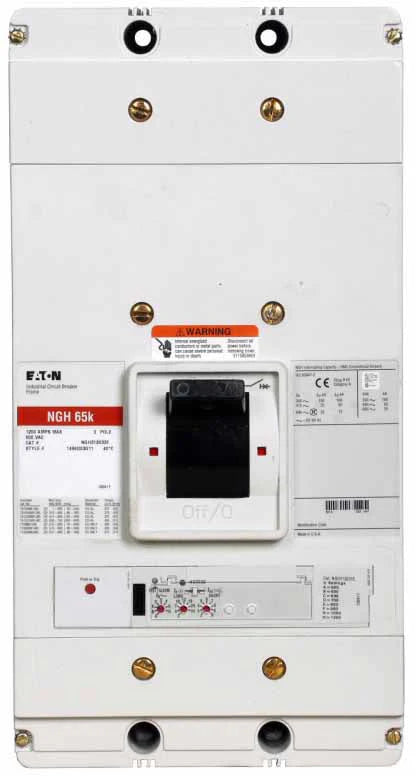

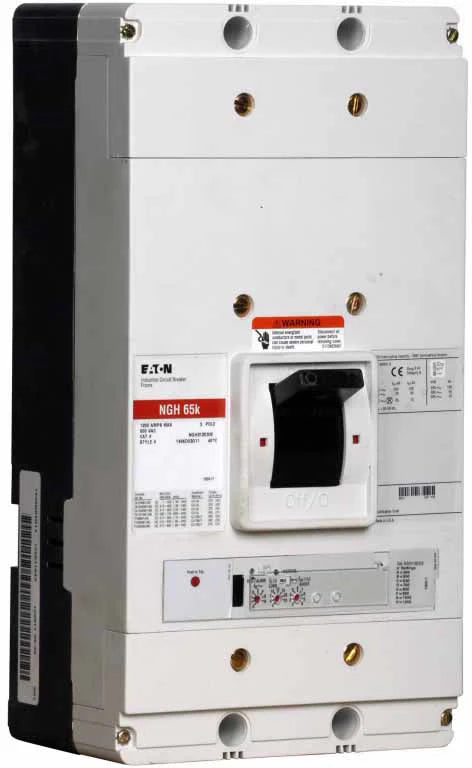

Eaton NGS308032E Molded Case Circuit Breaker – 800A – 3-Pole / 3-Phase – 480V AC – 85kA @ 240V / 50kA @ 480V – Line & Load – Series G NG

The Eaton NGS308032E is an 800A, 3-pole molded case circuit breaker from the Eaton Series G NG-Frame. It features an electronic Digitrip 310 RMS trip unit with Long-Time, Short-Time, and Instantaneous (LSI) trip functions.

The breaker is rated for 480V AC and provides interrupting ratings of 85kA at 240V AC and 50kA at 480V AC. It features line- and load-side connections, operates at 50/60 Hz, and is specified as 80% rated. The breaker uses an imperial configuration.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Frame: NG-Frame
• Type: NG
• Catalog No.: NGS308032E
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: Not specified
• Voltage Rating: 480V AC
• Interrupting Rating: 85kA @ 240V AC; 50kA @ 480V AC
• Protection Type: Electronic
• Trip Unit: Digitrip 310 RMS
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Connection: Line and Load
• Configuration: Imperial
• Frequency: 50/60 Hz
• Rating: 80% Rated
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGS308032E
• Catalog Number: NGS308032E
• Model: NGS308032E
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Frame: NG-Frame
• Type: NG
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Electronic Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 800A
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSI
• UPC:786685379302

Compatibility:

Designed for use with compatible Eaton Series G NG-Frame electrical distribution equipment that accepts NG Series molded case circuit breakers. The NGS308032E provides 800A electronic overcurrent protection for compatible 480V AC electrical distribution applications.

The breaker uses an electronic Digitrip 310 RMS LSI trip unit and provides line- and load-side connections. It is specified as 80% rated and uses an imperial configuration. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, connection arrangement, and installation specifications before installation.

Certifications:

• Series G NG Series
• 800A Rated
• 3-Pole
• 480V AC Rated
• 85kA @ 240V AC Interrupting Rating
• 50kA @ 480V AC Interrupting Rating
• Electronic Protection
• Digitrip 310 RMS Trip Unit
• Long-Time, Short-Time, and Instantaneous (LSI) Trip Functions
• Line and Load Connections
• 50/60 Hz
• 80% Rated
• Imperial Configuration
