Eaton NGS312033E 1200 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 50 kA@480 V – Bolt-On – Series G

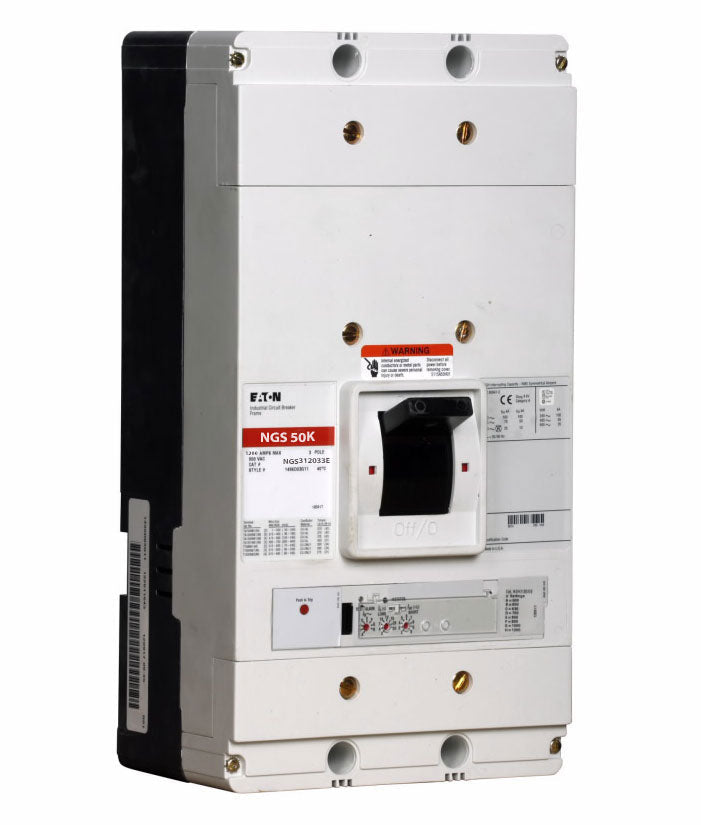

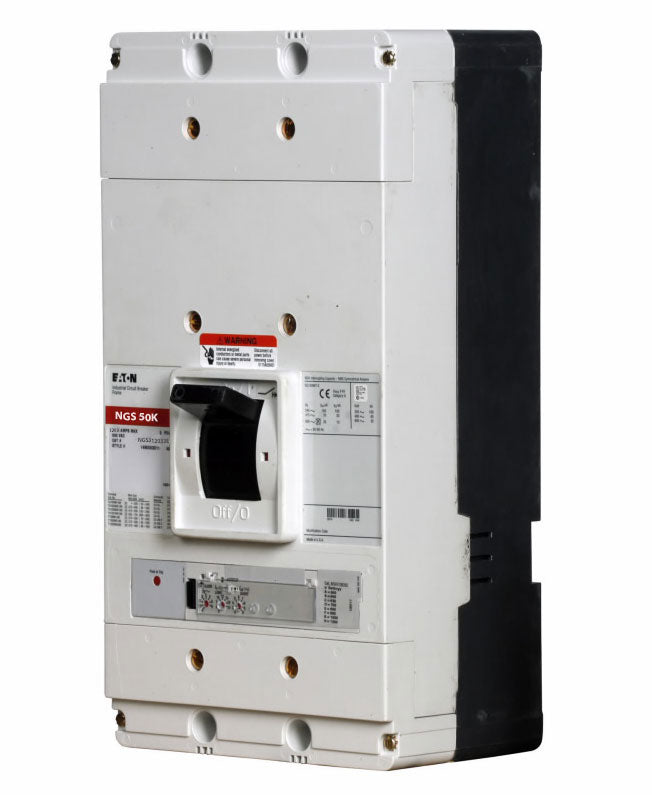

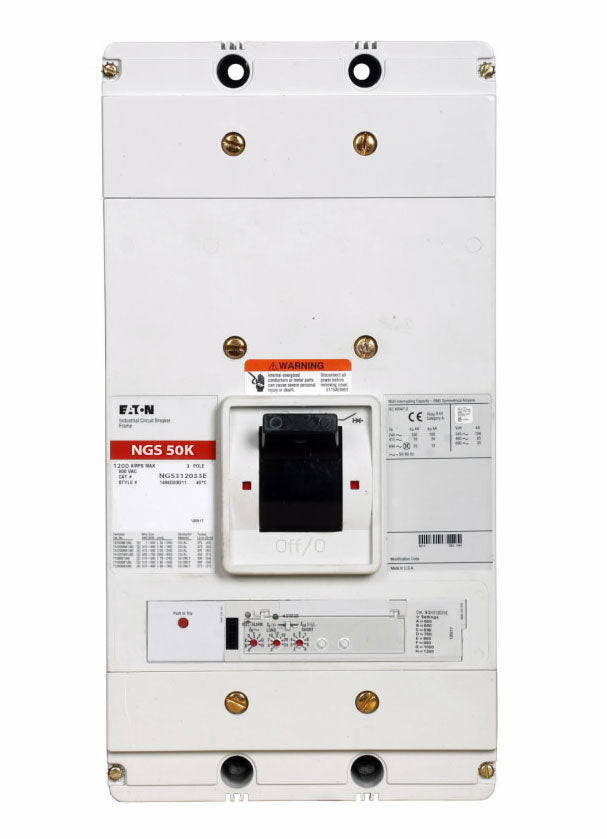

The Eaton NGS312033E is a 1200 Amp, 3-pole molded case circuit breaker from the Eaton/Cutler-Hammer Series G, Type NGS. It is rated for 600 V and provides an 85 kA interrupting rating at 240 VAC and 50 kA at 480 VAC. The breaker features a Digitrip RMS 310+ solid-state electronic trip unit with LS (Long-Time and Short-Time) protection functions. It is designed for bolt-on mounting and includes imperial tapped line/load conductors, with lugs not included.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series G
• Type: NGS
• Catalog Number / MPN: NGS312033E
• Primary Rating: 1200 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 85 kAIC @ 240 VAC; 50 kAIC @ 480 VAC
• Interrupting Capacity: Standard
• Trip Type: Solid-State Electronic
• Trip Unit: Digitrip RMS 310+
• Trip Functions: LS – Long-Time and Short-Time
• Connection / Mounting: Bolt-On
• Conductors: Imperial Tapped Line/Load Conductors
• Terminals: Lugs Not Included

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: NGS312033E
• Series: Series G
• Type: NGS
• Current Rating: 1200 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip RMS 310+
• Trip Functions: LS – Long-Time and Short-Time
• Conductors: Imperial Tapped Line/Load Conductors
• Terminals: Lugs Not Included
• UPC:786685379401

Compatibility

The Eaton NGS312033E is designed for compatible Eaton/Cutler-Hammer Series G Type NGS electrical distribution applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, conductors, and breaker compatibility before installation.
