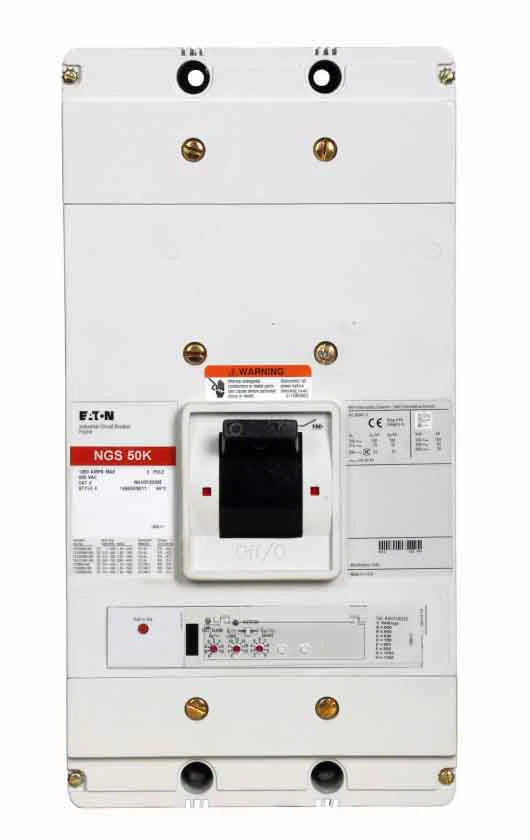

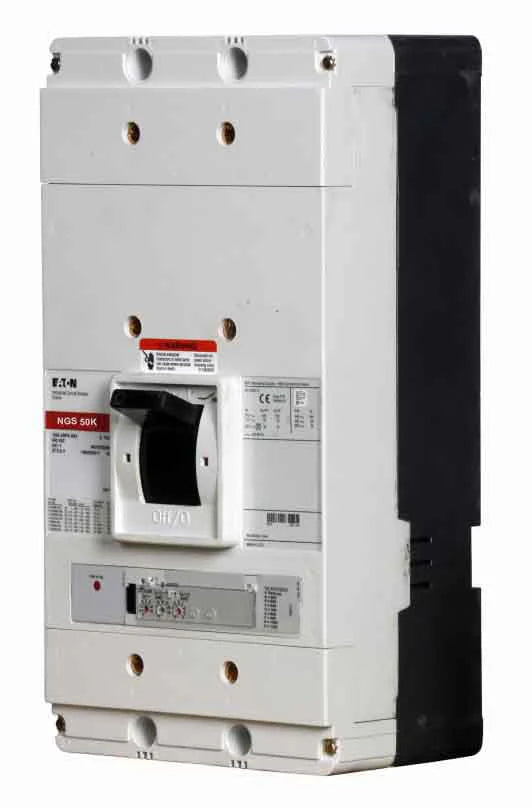

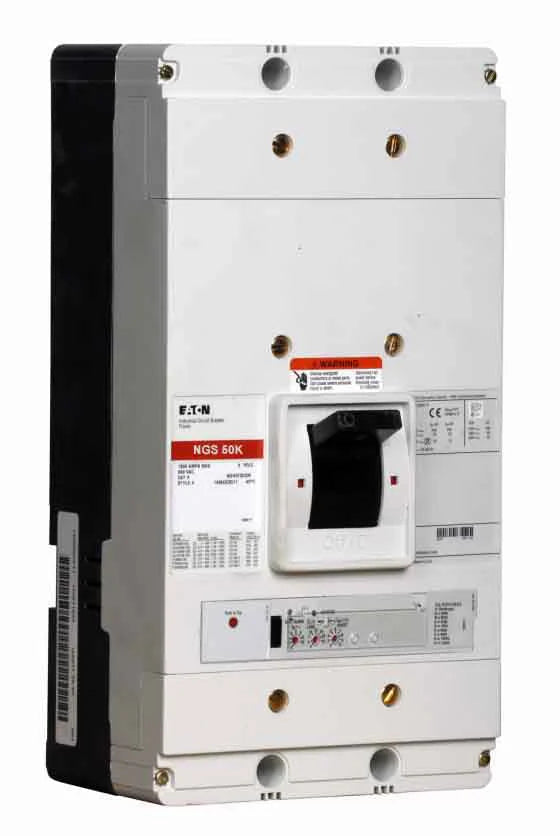

Eaton NGS312035E Molded Case Circuit Breaker – 1200A – 3-Pole / 3-Phase – 480V AC – 50kAIC @ 480V – Line & Load – Series G NG Frame

The Eaton NGS312035E is a 1200A, 3-pole, 3-phase electronic molded case circuit breaker from the Eaton Series G NG Frame. It features a Digitrip 310 RMS electronic trip unit with Long-Time, Short-Time, and Ground Fault (LSG) protection.

The NGS312035E is rated for 480V AC and provides interrupting ratings of 85kAIC at 240V AC and 50kAIC at 480V AC. It features line-and-load connections, operates at 50/60Hz, and is 80% rated.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Frame: NG Frame
• Type: NG
• Catalog No.: NGS312035E
• Current Rating: 1200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V AC
• Frequency: 50/60Hz
• Trip Type: Electronic
• Trip Unit: Digitrip 310 RMS
• Trip Functions: Long-Time, Short-Time, and Ground Fault (LSG)
• Interrupting Rating: 85kAIC @ 240V AC; 50kAIC @ 480V AC
• Connection Configuration: Line and Load
• Rating: 80% Rated
• Conductor System: Imperial
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): NGS312035E
• Catalog Number: NGS312035E
• Model: NGS312035E
• Product Family: Eaton Series G Circuit Breakers
• Series: Series G
• Frame: NG Frame
• Type: NG
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Electronic Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1200A
• Trip Configuration: Digitrip 310 RMS Electronic LSG
• Connection Configuration: Line and Load
• UPC:786685379425

Compatibility:

Designed for use with compatible Eaton Series G NG Frame electrical distribution equipment that accepts NG-frame electronic molded case circuit breakers. The NGS312035E provides 1200A, 3-pole electronic protection for compatible 480V AC electrical distribution applications.

The breaker features a Digitrip 310 RMS electronic LSG trip unit, line-and-load connections, 50/60Hz operation, and an 80% rating. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit compatibility, connection requirements, conductor system, and installation specifications before installation.

Certifications:

• Eaton Series G
• NG Frame
• 1200A Rated
• 3-Pole / 3-Phase
• 480V AC Rated
• 85kAIC @ 240V AC Interrupting Rating
• 50kAIC @ 480V AC Interrupting Rating
• Electronic Trip
• Digitrip 310 RMS
• Long-Time, Short-Time, and Ground Fault (LSG) Protection
• Line and Load Connections
• Imperial Conductor System
• 50/60Hz
• 80% Rated
