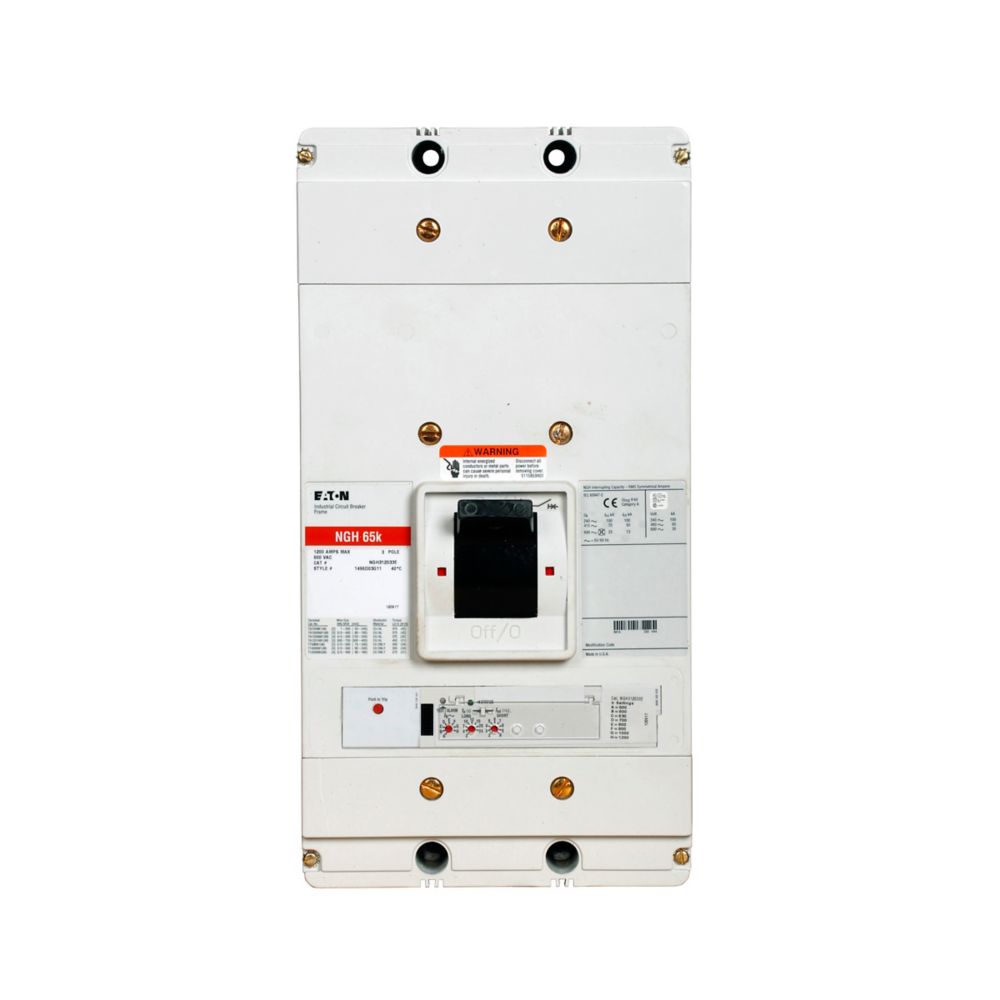

Eaton NGS312036EC 1200 Amp Molded Case Circuit Breaker – 3 Pole – 480 V AC – 50 kAIC@480 V – Digitrip 310 RMS LSIG – Series G

The Eaton NGS312036EC is a 1200 Amp, 3-pole electronic molded case circuit breaker from the Eaton Cutler-Hammer Series G, NG-frame product range. It features a Digitrip 310 RMS electronic trip unit with LSIG protection, providing Long-Time, Short-Time, Instantaneous, and Ground Fault functions. Rated for 480 V AC, it provides high interrupting capacity and is designed for line- and load-side connections. This model is 100% rated and uses an imperial terminal system for compatible electrical distribution applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Electronic Molded Case Circuit Breaker
• Series: Series G
• Frame: NG Frame
• Catalog Number / MPN: NGS312036EC
• Primary Rating: 1200 Amp
• Poles / Configuration: 3 Pole
• Voltage: 480 V AC
• Interrupting Rating: 85 kAIC @ 240 V AC; 50 kAIC @ 480 V AC
• Interrupting Capacity: High
• Trip Type: Electronic
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground Fault
• Connection: Line and Load
• Terminal System: Imperial
• Frequency: 50/60 Hz
• Continuous Rating: 100% Rated

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: NGS312036EC
• Series: Series G
• Frame: NG Frame
• Current Rating: 1200 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG
• Terminal System: Imperial
• Continuous Rating: 100% Rated
• UPC:786685574295

Compatibility

The Eaton NGS312036EC is intended for compatible Eaton Series G NG-frame electrical distribution equipment and industrial power distribution applications.
