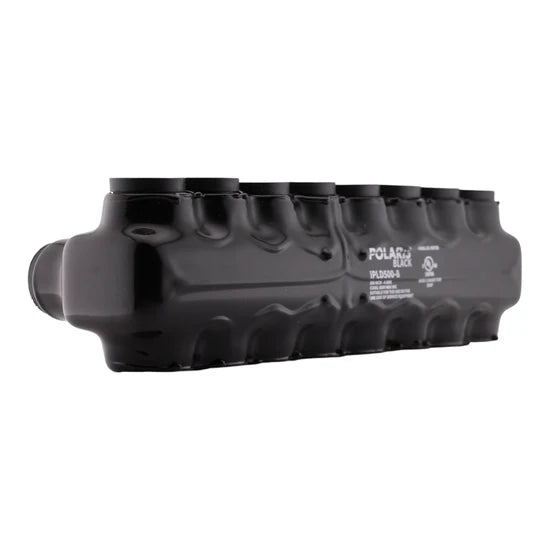

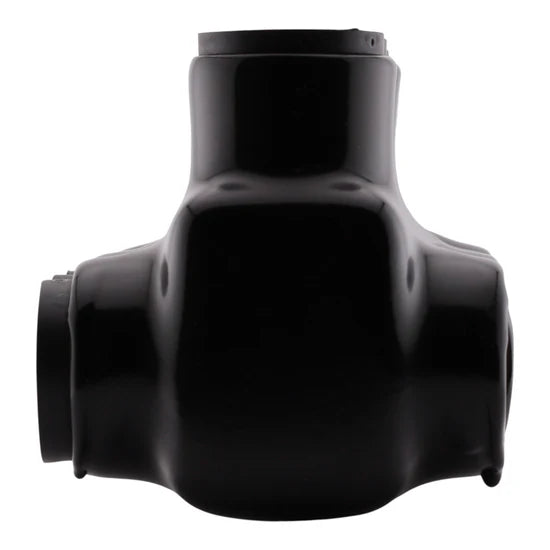

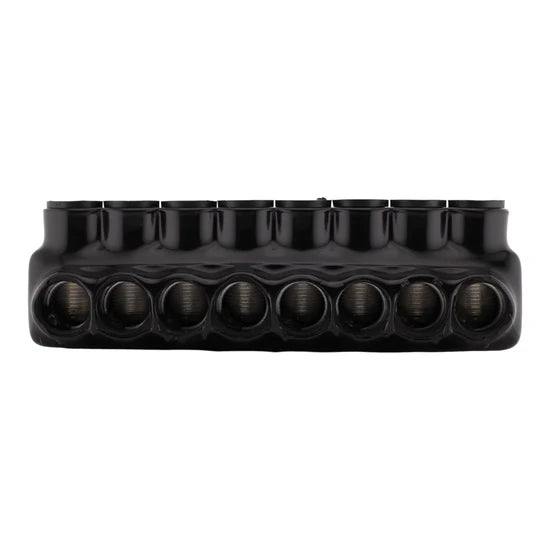

NSI Polaris IPLD500-8 8-Port Pre-Insulated Multi-Tap Connector – Dual-Sided – 600V

The NSI Polaris IPLD500-8 is an 8-port dual-sided pre-insulated multi-tap connector designed for secure connections of copper and aluminum conductors ranging from 500 MCM to 4 AWG. Ideal for parallel installations, cable tray applications, and line-side service equipment, it features high-dielectric plastisol insulation, pre-filled oxide inhibitor, and robust aluminum alloy construction for long-lasting performance.

Key Specifications

• Connector Type: Pre-Insulated Multi-Tap Connector
• Number of Ports: 8 Ports
• Wire Entry: Dual-Sided (either side)
• Wire Range Copper: 500 MCM – 4 AWG
• Wire Range Aluminum: 500 MCM – 4 AWG
• Conductor Type: Copper and Aluminum (Dual Rated)
• Wire Class: Class B, Class C
• Voltage Rating: 600 Volts AC
• Temperature Rating: -45°C to 90°C (AL9CU)
• Material: 6061-T6 Aluminum Alloy
• Insulation: Plastisol (high-dielectric strength)
• Color: Black
• Tightening Torque: 450 lb-in
• Hex Wrench Size: 5/16 inch
• Parallel Rated: Yes
• Certifications: UL Listed 486A/B, cULus

Features

• Pre-filled oxide inhibitor for corrosion protection
• Removable plugs for flexible wire entry
• UV resistant, abrasion resistant, and chemical resistant
• Ideal for cable tray and line-side service installations

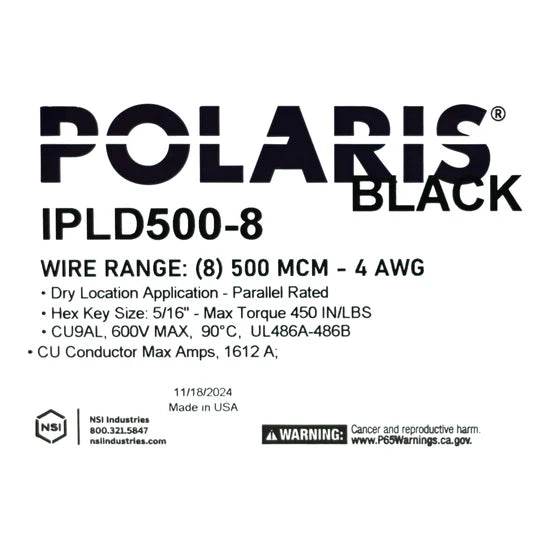

Product Data

• Manufacturer: NSI Industries
• Brand: Polaris
• Model Number: IPLD500-8
• UPC: 662381925060

• Dimensions:

  • Length: 9.82 in
  • Width: 2.83 in
  • Height: 2.91 in
  • Package Quantity: 1 per pack
