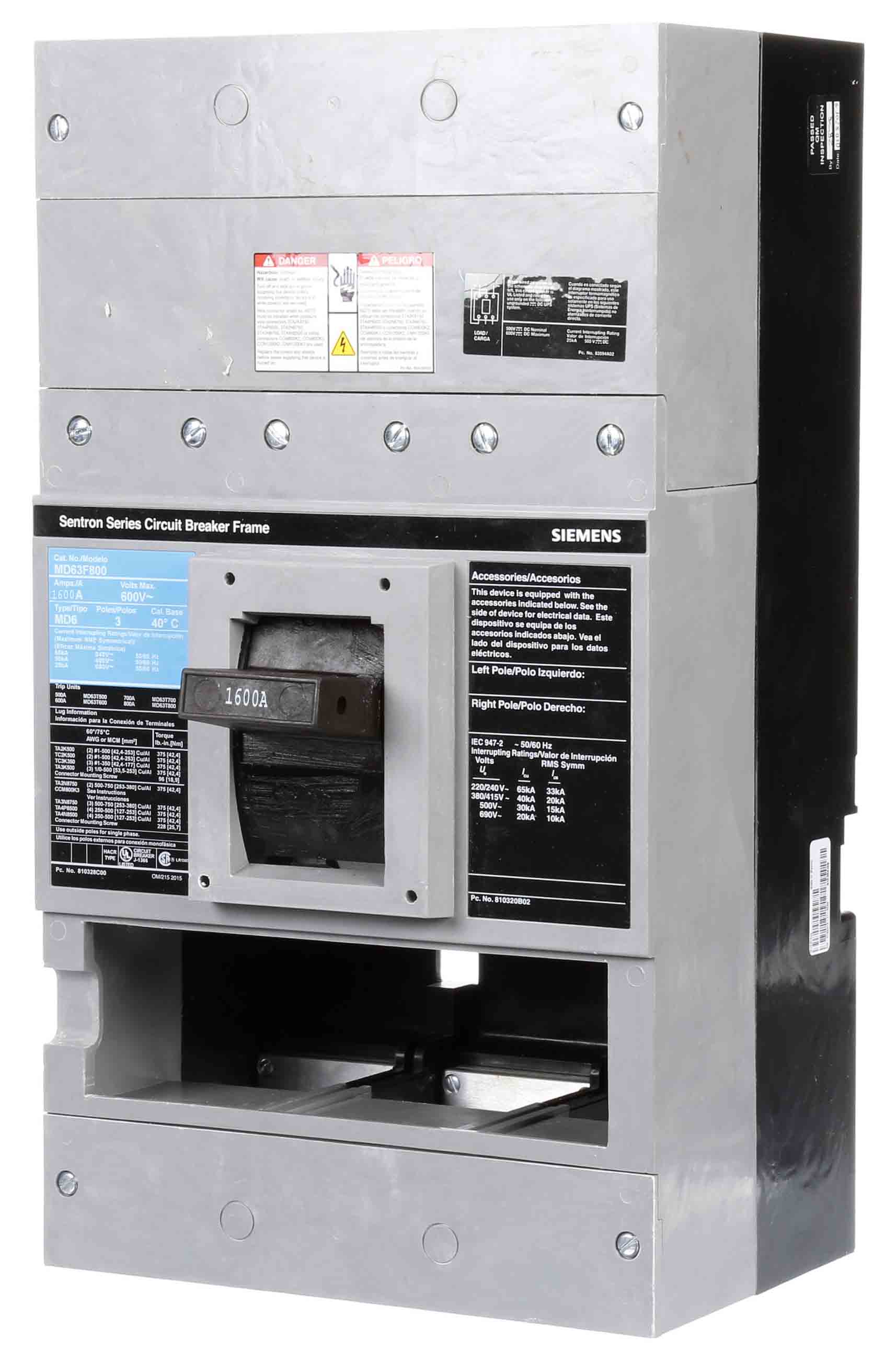

Siemens PD63F160 1600 Amp Molded Case Circuit Breaker Frame – 3 Pole – 600 V – 50 kA@480 V – Feed-Thru – SENTRON Series

The Siemens PD63F160 is a 1600 Amp, 3-pole molded case circuit breaker frame from the Siemens SENTRON Series, Type PD. It is rated for 600 V with a 50 kA interrupting capacity at 480 V and is designed for 40°C applications. This product is supplied as a frame only and features thermal-magnetic protection with feed-thru configuration.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Series: SENTRON
• Type: PD
• Catalog Number / MPN: PD63F160
• Primary Rating: 1600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 50 kA @ 480 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Feed-Thru
• Product Configuration: Frame Only

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: PD63F160
• Series: SENTRON
• Type: PD
• Current Rating: 1600 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker Frame
• Configuration: Frame Only
• Trip Type: Thermal-Magnetic
• UPC:783643226159

Compatibility

The Siemens PD63F160 is designed for compatible Siemens SENTRON Type PD molded case circuit breaker applications and associated trip unit configurations. Verify the specific trip unit, panelboard or switchboard, system voltage, mounting configuration, and breaker compatibility before installation.
