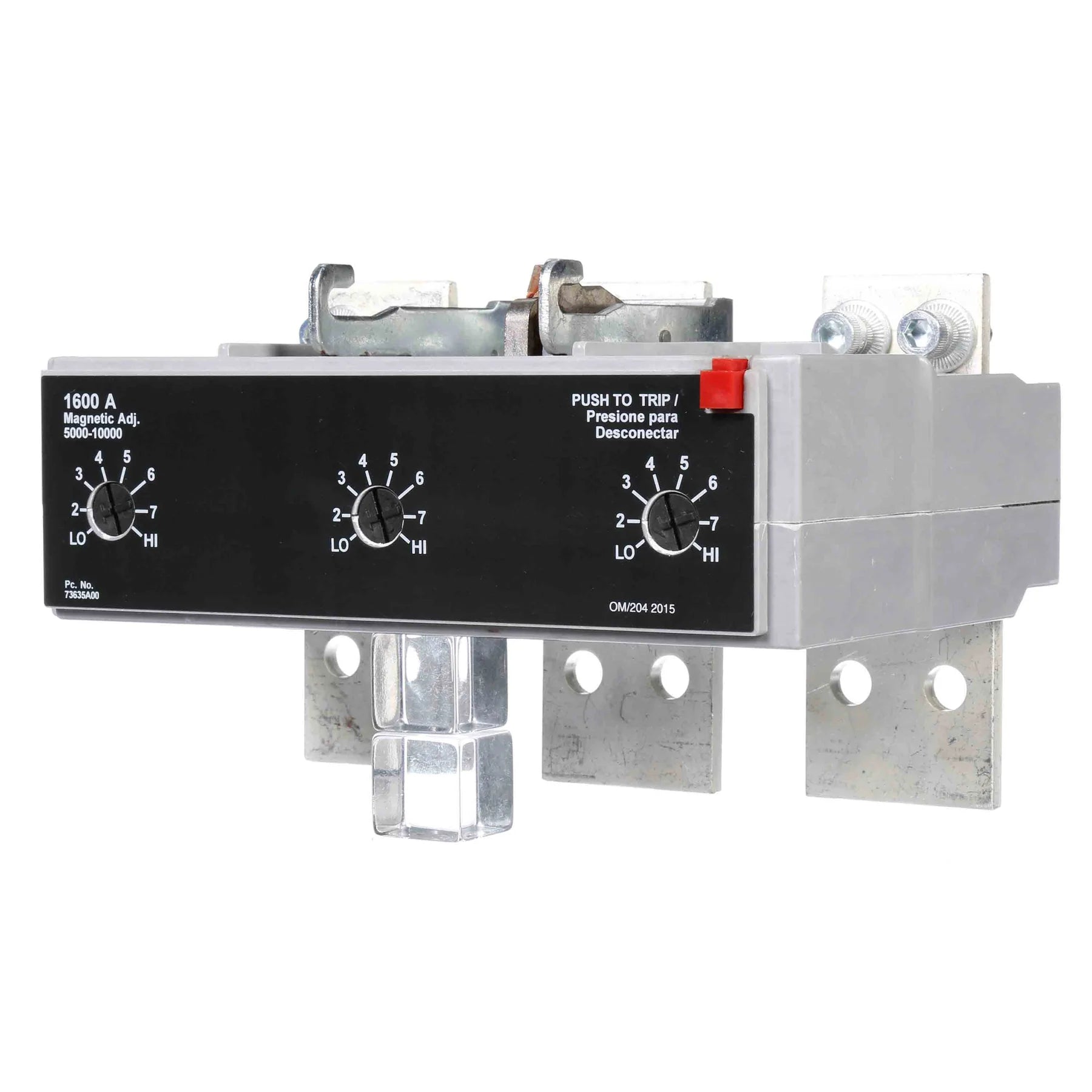

Siemens PD63T160 1600 Amp Molded Case Circuit Breaker Trip Unit – 3 Pole – 600 V – 50 kA@480 V – Thermal-Magnetic – SENTRON Series

The Siemens PD63T160 is a 1600 Amp, 3-pole molded case circuit breaker trip unit or programmer from the Siemens SENTRON Series, Type PD. It is rated for 600 V and features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions. The trip unit is suitable for use with compatible PD and HPD molded case circuit breakers and has AIC ratings of 50 kA at 480 V and 25 kA at 600 V.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker Trip Unit / Programmer
• Series: SENTRON
• Type: PD
• Catalog Number / MPN: PD63T160
• Primary Rating: 1600 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 V
• Interrupting Rating: 50 kA @ 480 V / 25 kA @ 600 V
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Application: Compatible PD and HPD Molded Case Circuit Breakers

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: PD63T160
• Series: SENTRON
• Type: PD
• Current Rating: 1600 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker Trip Unit / Programmer
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• UPC:783643156418

Compatibility

The Siemens PD63T160 is designed for use with compatible Siemens PD and HPD molded case circuit breakers. Verify the specific breaker frame, system voltage, trip unit configuration, mounting arrangement, and compatibility before installation.
