PDF33G0400B2NL Power Defense Globally Rated 100% UL, Frame 3, Three Pole, 400A, 35kA @480V, PXR10 LSI TU, Std Term Load Only (PDG3X3TA400)

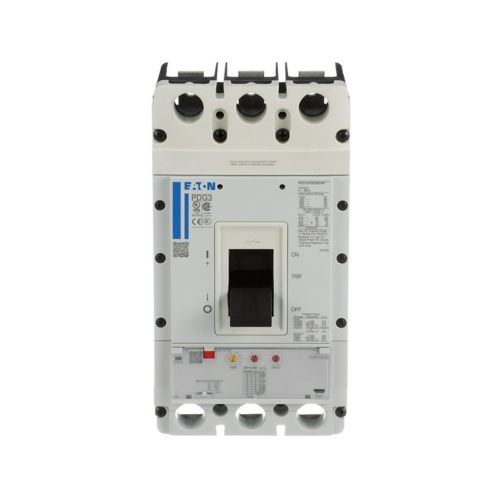

Eaton Power Defense Molded Case Circuit Breaker – PDF33G0400B2NL

Key Electrical Ratings

• Amperage: 400A

• Number of Poles: 3 (Three-Pole)

• Interrupting Rating: 35 kAIC @ 480V AC

• Interrupting Range: 65 kAIC @ 240V (UL) | 10 kAIC Icu @ 250V DC

• Voltage Rating: 600V AC

• Trip Unit Type: T281

• Class: Class A

• Circuit Breaker Type: PD3 Global (100% UL)

Dimensions & Weight

• Height: 257.1 mm

• Width: 138.9 mm

• Depth: 109.1 mm

• Weight: 5.92 kg

Mechanical / Terminals

• Terminal Type: Standard Terminals, Load Side Only

• Frame Size: 3

• Frame Type: Complete Breaker

Compliance & Certifications

• Compliance: RoHS Compliant

• Certifications: IEC 60947-2, CCC Marked

• Warranty: Eaton Selling Policy 25-000 — one (1) year from installation or eighteen (18) months from shipment, whichever occurs first

• UPC: 786679966273
