PDG23F0040TFFJ - Eaton - Molded Case Circuit Breaker

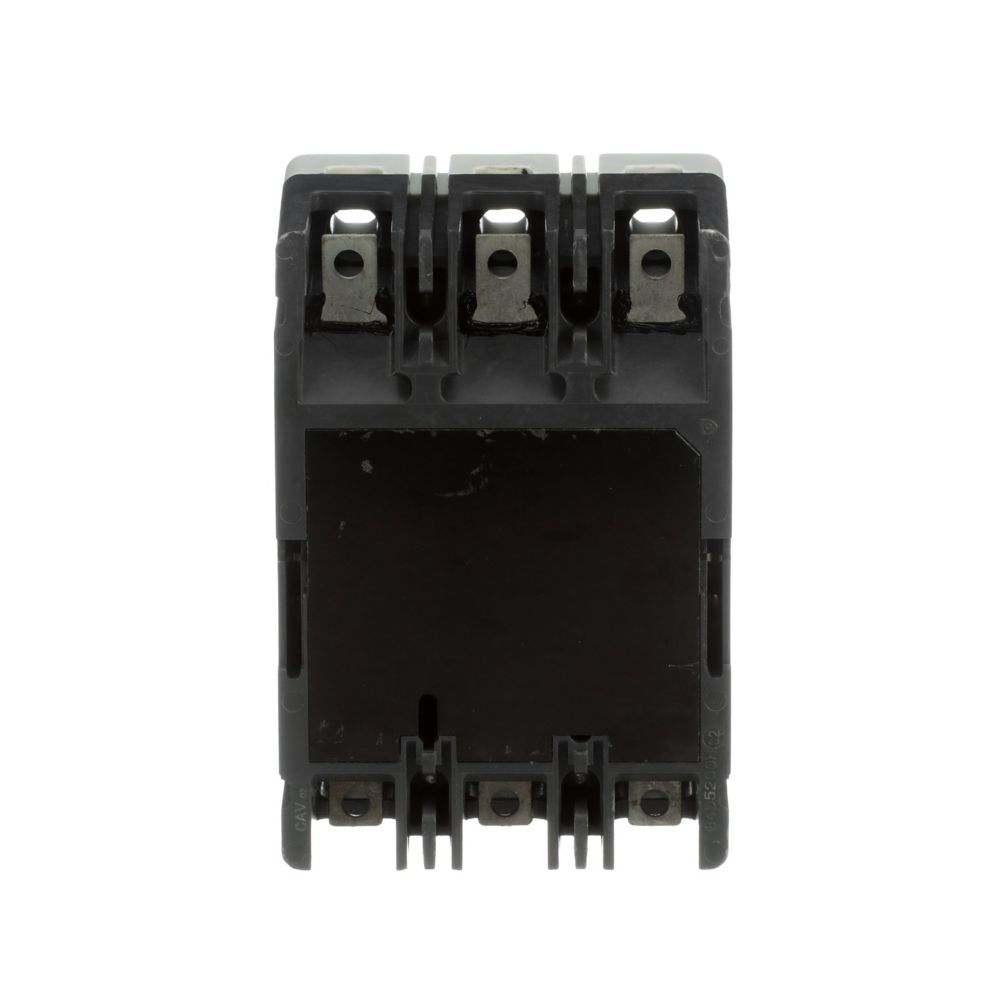

The Eaton PDG23F0040TFFJ is a 40A, 3-pole molded case circuit breaker from the Eaton Power Defense Frame 2 family. It is a globally rated breaker with a fixed-fixed thermal-magnetic trip unit and standard line- and load-side connections.

The breaker is rated at 25kA at 480V. Power Defense Frame Size 2 breakers cover ratings from 15A through 225A and are factory configured with a trip unit. The Frame 2 platform supports a range of circuit protection and power distribution applications, with available options including electronic PXR trip units, ground fault protection, current limiting, energy metering, communication, breaker health indication, and zone selective interlocking.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Power Defense
• Frame Size: Frame 2
• Catalog No.: PDG23F0040TFFJ
• Current Rating: 40A
• Number of Poles: 3-Pole
• Voltage Rating: 480V
• Interrupting Rating: 25kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Unit: Fixed-Fixed Thermal-Magnetic
• Trip Configuration: Fixed-Fixed
• Line / Load Connections: Standard Line and Load
• Rating Range for Frame 2: 15A–225A
• Trip Unit Configuration: Factory Configured
• Breaker Rating: Globally Rated
• Application: Circuit Protection and Power Distribution

Part Numbers & Identification:

• Manufacturer Part Number (MPN): PDG23F0040TFFJ
• Catalog Number: PDG23F0040TFFJ
• Model: PDG23F0040TFFJ
• Product Family: Eaton Power Defense
• Frame: Frame 2
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 40A
• Trip Configuration: Fixed-Fixed Thermal-Magnetic
• Related Configuration: PDG2X3T100
• UPC:786679213346

Compatibility:

Designed for use within compatible Eaton Power Defense Frame 2 electrical distribution applications. Frame Size 2 breakers are available in ratings from 15A through 225A and can be configured with different trip-unit technologies and accessories.

The PDG23F0040TFFJ is configured with a fixed-fixed thermal-magnetic trip unit and standard line- and load-side connections. Always verify the specific electrical equipment, breaker configuration, system voltage, available fault current, trip-unit requirements, terminal configuration, and installation requirements before installation.

Certifications:

• Globally Rated
• Eaton Power Defense Frame 2
• 40A Rated
• 3-Pole
• 25kA @ 480V Interrupting Rating
• Fixed-Fixed Thermal-Magnetic Trip Unit
